Enclosed Flooding FM200 Cylinder Fire Suppression System In Power Room
Cylinder For Enclosed Flooding FM200 Fire Suppression System Without Pollution In Power Room
Description
The table shows the specific parameters of several conventional bottles of different sizes
| Cylinder 40L 70L 90L 100L 120L 150L 180L | |||||||
| Nominal volume(L) | 40 | 70 | 90 | 100 | 120 | 150 | 180 |
| Actual volume(L) | 40.5 | 70.5 | 90.5 | 100.5 | 120.6 | 150.5 | 180.6 |
| Internal diameter(mm) | 300 | 350 | 350 | 350 | 350 | 400 | 400 |
|
Total length(mm) (including valve) |
890 | 1060 | 1265 | 1385 | 1578 | 1530 | 1773 |
| Filling medium | FM200+nitrogen | ||||||
|
Weight of cylinder(kg) (including valve)
|
38 | 63 | 74 | 80 | 94 | 116 | 133 |
| Test of hydraulic pressure | 8.4MPa | ||||||
| Test of sealing pressure | 5.6MPa | ||||||
Components
The bottle part is composed of steel cylinder and cylinder valve
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
.
Package

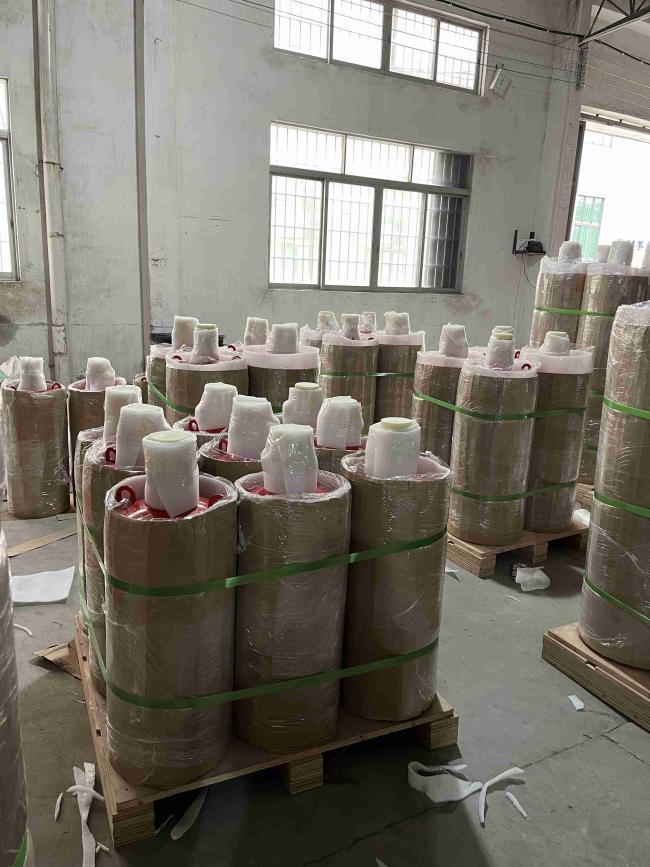

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
