UL Insulated FM200 Fire Suppression System No Residue In Telecommunications Room
UL Insulated FM200 Fire Suppression System With No Residue In The Telecommunications Room

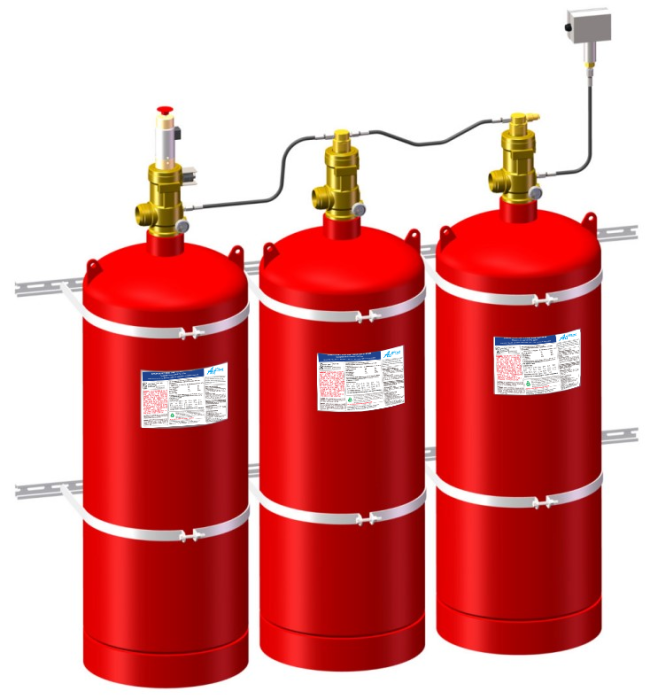

Description of UL FM200 Fire Suppression System
Heptafluoropropane (HFC-227ea) is a clean and safe fire extinguishing agent that can be used in fully submerged automatic fire extinguishing systems, replacing Halon 1301, and maintaining the excellent fire extinguishing performance of Halon fire extinguishing agent without causing any environmental problems
The safety of the heptafluoropropane (HFC-227ea) fire extinguishing system in total flooding applications is safer than Halon 1301, with a safe exposure concentration of 9% accepted by the US Environmental Protection Agency (EPA). Meanwhile, the ozone depletion value (ODP) of HFC-227ea is 0, non-conductive, clean, and residue free.
Attributes of UL GB series cylinders
| Model No. | Nominal pressure (bar) | Nominal volume(L) | Filling volume (kg) | Caliber (mm) | Weight (kg) | |
| Min. | Max. | |||||
| AG227SP-25-40M | 25 | 40 | 19.2 | 44.8 | 49 | 47 |
| AG227SP-25-50M | 25 | 50 | 24.0 | 56.0 | 49 | 58 |
| AG227SP-25-60M | 25 | 60 | 28.8 | 67.2 | 49 | 65 |
| AG227SP-25-70M | 25 | 70 | 33.6 | 78.4 | 49 | 72 |
| AG227SP-25-80M | 25 | 80 | 38.4 | 89.6 | 49 | 80 |
| AG227SP-25-90M | 25 | 90 | 43.2 | 100.8 | 49 | 94 |
| AG227SP-25-100M | 25 | 100 | 48.0 | 112.0 | 49 | 100 |
| AG227SP-25-120M | 25 | 120 | 57.6 | 134.4 | 49 | 113 |
| AG227SP-25-150M | 25 | 150 | 72.0 | 168.0 | 49 | 134 |
| AG227SP-25-40K | 25 | 40 | 19.2 | 44.8 | 33 | 41 |
| AG227SP-25-50K | 25 | 50 | 24.0 | 56.0 | 33 | 52 |
| AG227SP-25-60K | 25 | 60 | 28.8 | 67.2 | 33 | 59 |
| AG227SP-42-40M | 42 | 40 | 19.2 | 44.8 | 49 | 47 |
| AG227SP-42-50M | 42 | 50 | 24.0 | 56.0 | 49 | 58 |
| AG227SP-42-60M | 42 | 60 | 28.8 | 67.2 | 49 | 65 |
| AG227SP-42-70M | 42 | 70 | 33.6 | 78.4 | 49 | 72 |
| AG227SP-42-80M | 42 | 80 | 38.4 | 89.6 | 49 | 80 |
| AG227SP-42-90M | 42 | 90 | 43.2 | 100.8 | 49 | 94 |
| AG227SP-42-100M | 42 | 100 | 48.0 | 112.0 | 49 | 100 |
| AG227SP-42-120M | 42 | 120 | 57.6 | 134.4 | 49 | 113 |
| AG227SP-42-150M | 42 | 150 | 72.0 | 168.0 | 49 | 134 |
| AG227SP-42-170M | 42 | 170 | 81.6 | 190.4 | 49 | 149 |
| AG227SP-42-40K | 42 | 40 | 19.2 | 44.8 | 33 | 41 |
| AG227SP-42-50K | 42 | 50 | 24.0 | 56.0 | 33 | 52 |
| AG227SP-42-60K | 42 | 60 | 28.8 | 67.2 | 33 | 59 |
Features of UL FM200 Fire Suppression System
- Very stable behaviour.
- In less than 10 seconds, a fast extinguishing time with the discharge.
- High efficiency, low extinguishing concentration
- Applicable in occupied areas
- Low storage pressure with low noise discharges.
- Minimum container footprint.
- After discharge, there is no residue.
- Electrically unconductive, secure for use in spaces that are inhabited by humans.
- Zero ozone depleting potential
Application of UL FM200 Fire Suppression System
Fire suppression system HFC-227ea can be used in normal commercial and industrial settings. Typical areas that can be protected by this system include:
- Bank strong room
- Libraries
- Bookstores
- Electronic data processing center
- Telephone switching studio
- Communication center
- Transformer and switchgear room
- Control room
- Test lab
- Inflammable liquid storage room

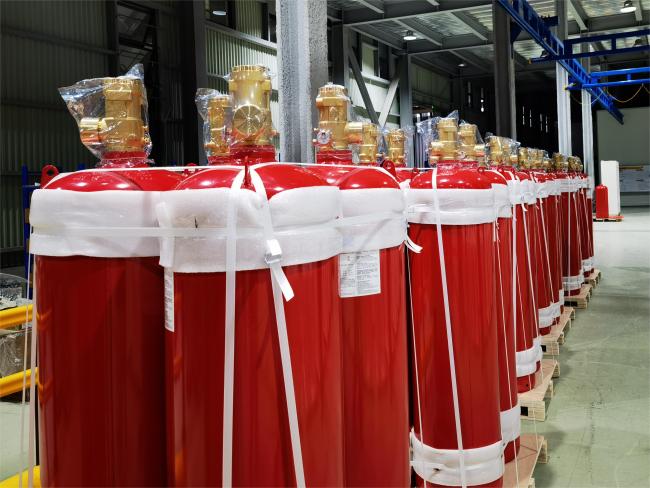

Packages of UL FM200 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
