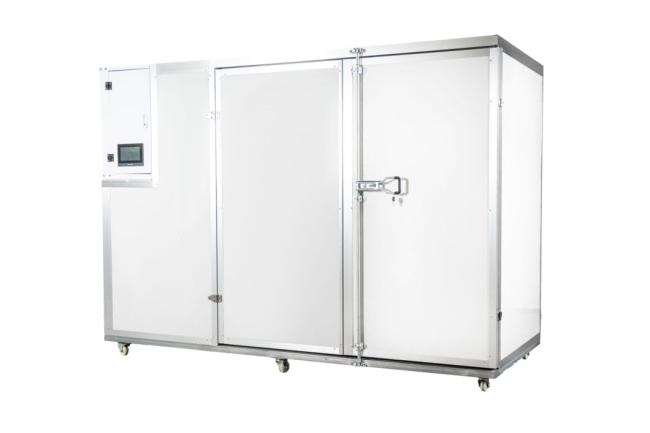

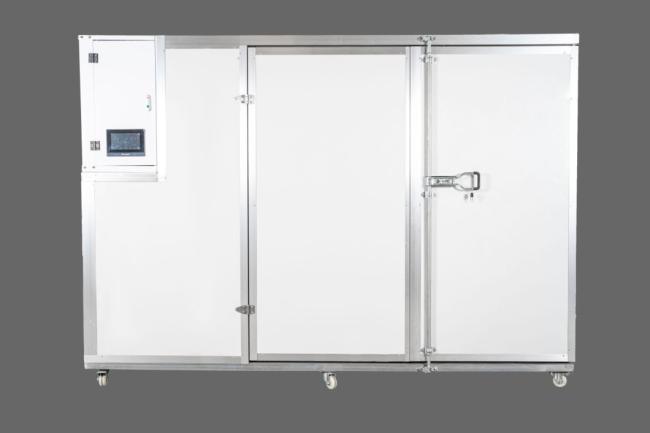

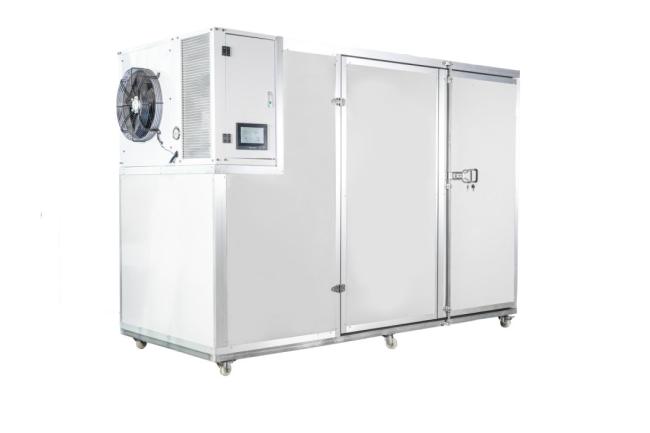

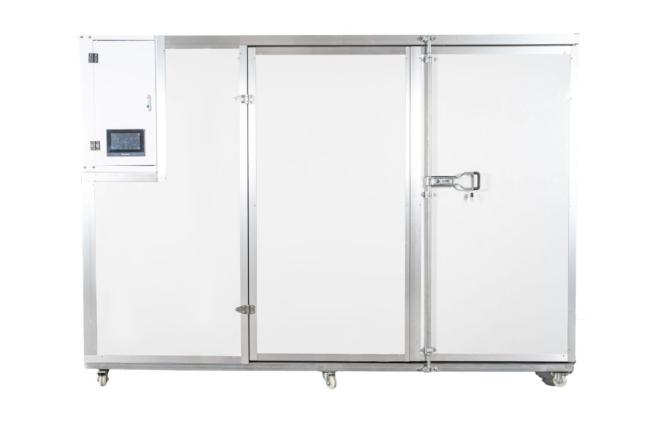

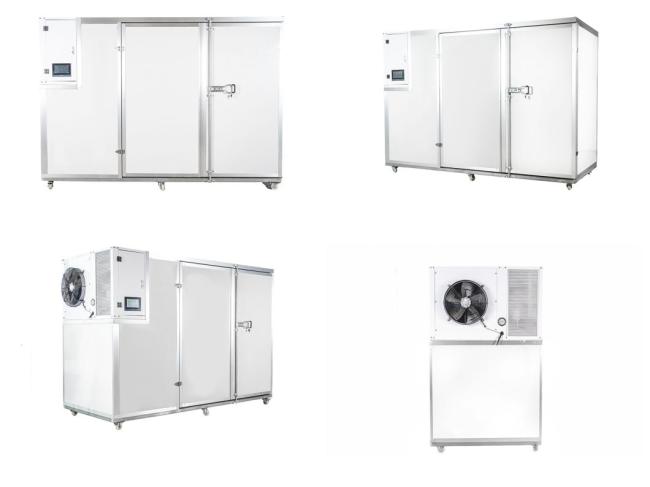

Vegetable Drying Air Source Dryer Integrated 380V/50Hz
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description

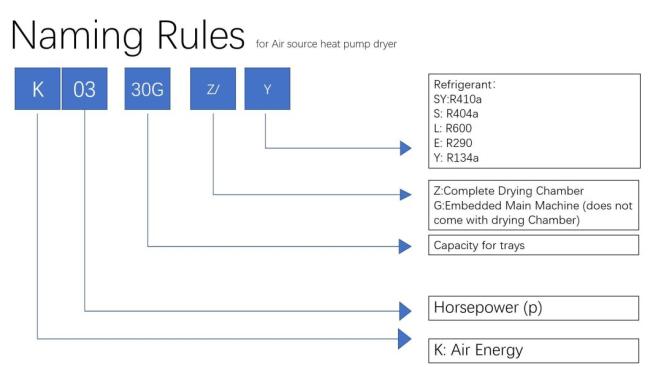

| Model | Rated input(W) | Rated heating capacity(W) | Voltage/frequencyV/Hz | Max.Temp. ( °C) | No. of plate/max. drying capacity | overall size |
| K03-30G-Z/Y | 1875 | 7700 | 220V/380V/50Hz | 85°C | 30/250kg | 2750*1118*2090 |
| K06-60G-Z/Y | 3700 | 15000 | 380V/50Hz | 85°C | 60/500kg | 2895*2118*2090 |
| K07-90G-Z/Y | 4300 | 17500 | 380V/50Hz | 85°C | 90/700kg | 4450*2120*2090 |
| K12-120G-Z/Y | 7400 | 30000 | 380V/50Hz | 85°C | 120/1000kg | 5738*2118*2050 |
| K03-Q/Y | 3800 | 7500 | 220V/380V/50Hz | 85°C | 300kg | 1200*1050*1500 |
| K06-Q/Y | 6700 | 15000 | 380V/50Hz | 85°C | 600kg | 1200*1050*1500 |
| K012-Q/Y | 13000 | 30000 | 380V/50Hz | 85°C | 1200kg | 2265*1150*1720 |
It is convenient to move and it supports household power;
Some customized versions can come with automatic drying function, without setting drying process.
Our heat pump drying equipment has the following features:
1. Energy-saving: The Energy Efficiency Ratio of our equipment stands between 1:3 to 1:4, meaning that with one portion of electric energy, 3 to 4 portions of heat can be made, which is about 70% more efficient compared to using electricity.
2. Environment-friendly: throughout the whole drying process, no emission or pollution will occur.
3.Internet of Things: We use Remote Control System, Sureillance system, Self-monitoring system on both temperature and humidity.
4. Easy and safe to operate without a man guarding. Our equipment has been applied broadly to the drying of agricltural products, food and medicine products.
Our company was founded in 2012, dedicated to the development, production and the sales of the Air-source heat pump dryers and the refrigeration equipment. Our heat pump drying equipment has the following features: 1. Energy-saving: The Energy Efficiency Ratio of our equipment stands between 1: 3 to 1: 4, meaning that with one portion of electric energy, 3 to 4 portions of heat can be made, which is about 70% more efficient compared to traditional methods with gas, petrol and coal. 2. Environment-friendly: Throughout the whole drying process, no emission or pollution will occur. 3. Internet of Things: We use Remote Control System, Surveillance system, Self-monitoring system on both temperature and humidity. 4. Easy and safe to operate without a man guarding. Our equipment has been applied broadly to the drying of agricultural products, food and medicine products.On the refrigeration area, we focus on the application of variable frequency compressor refrigeration system in Cold Storage and Deep Freeze. One of our equipment unit can manage to create a temperature range between 5° C to negative 40° C(41º Fto -22º F), fulfilling the need to cool, freeze or deep freeze. Moreover, our equipment has the smart control system, allowing to apply settings and make changes remotely on a touch screen or even a cell phone. High-end products with low cost.
Except for the R&D and production on the hardware equipment, our company also provides the smart remote control system of the drying and refrigeration as well as strategies/solutions to the application process as a consultant.
Our company is a high-tech enterprise in Sichuan as well as one of the small and medium technology enterprises, owning 21 Patents for Utility Model and 2 invention patents. Our main models have passed
The quality inspection of agricultural equipment by the Ministry of Agriculture of China and the CE certification (CONFORMITE EUROPEENNE) by the EU.
Our company has built long-term scientific research partnerships between Chengdu University of TCM, Chengdu University Of Technology, Sichuan Food Institute, Sichuan Agricultural Machinery Research and Design Institute and Shanghai Highly (Group) Co., Ltd.
We have cooperated with the following Pharmaceutical companies: Good Doctor Pharmaceutical Group, Beijing Tongrentang Co., Ltd, NK Bell group, Chongqing Taiji Industry (Group) Co., Ltd, Fujian South Pharmaceutical Co., Ltd.
We have cooperated with the following food-processing companies: Sichuan Huanjian food group, Jiushao food Ltd, Barilla S. P. A. ( an Italian multinational food company) We have cooperated with the following wood-drying and furniture companies: BAYI Furniture, Master&Zest Furniture, and Quanyou Furniture.
