4 Inch Nonmarking Soft Rubber Wheel Swivel Screw Stem Casters With Double Lock Brake
4 Inch Nonmarking Soft Rubber Wheel Swivel Screw Stem Casters With Double Lock Brake
Model: 28TPR100T-B
Product Specifications
| Wheel Diameter | 100mm, 4 inch | Wheel Width | 32mm/ 1¼ inch |
| Capacity | 120Kg, 265Lbs | Overall Height | 130mm |
| Wheel Tread | Thermo plastic rubber | Wheel Color | Gray, etc |
| Caster Type | Swivel with dual lock brake | Fixing Type | Screw Stem |
| Screw Stem size | M12x30 mm | Brake Type | Dual Lock Brake |
| Bearing | Dual ball bearing B6001 | Finish | Bright Zinc Plated |
Product Features
1. Caster adopts silent and durable nonmarking rubber wheel
2. The dual lock brake device can hold the wheel and swivel bearing firmly
3. Housing of the caster thickness is 2.50mm, which ensures the caster to load heavy duty capacity
4. Full dual ball hardened raceway for the swivel bearing, axle with lock washer and nut
5. Wheel bearings adopt precision dual ball bearings B6001
6. Zinc plated finish for the caster bracket
Product Application

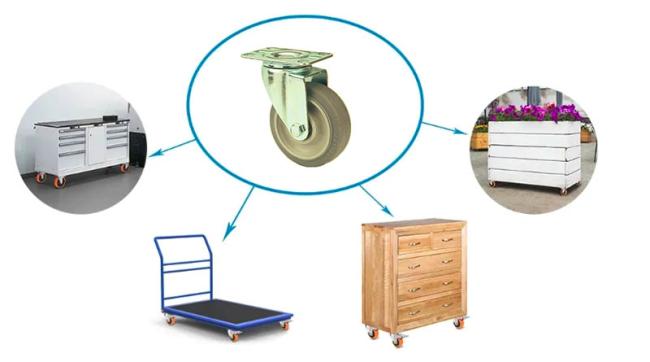

This Caster is vastly used on medium and heavy duty carts, hand platform trucks, working benches,
conveyors, portable workstations, construction equipment, laundry carts, and other units.
Product Packing
Packed By Cartons
Carton Size: 47x26x24cm or as required
QTY Per Carton: 40 pcs/Cartons
Customer Logo can be printed on cartons
