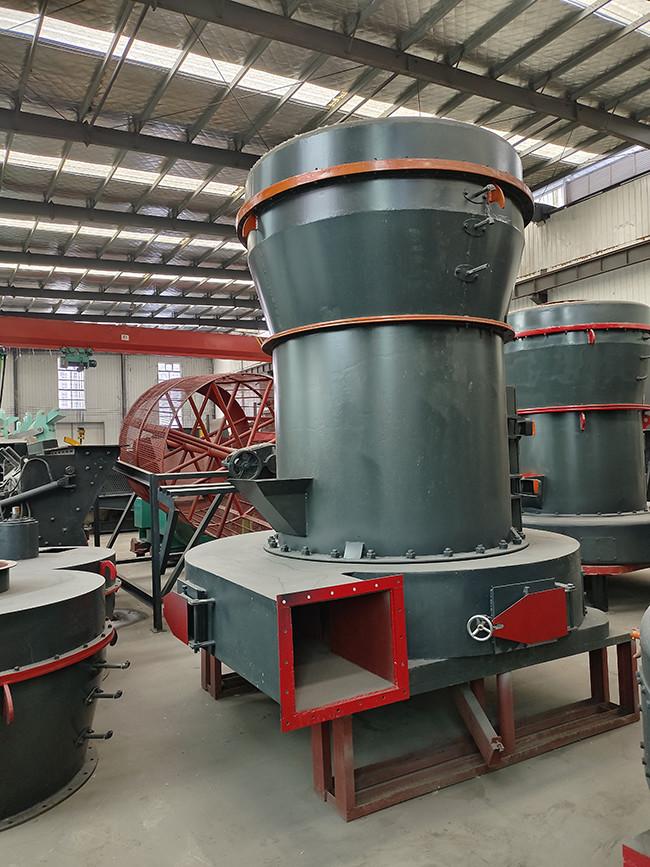

High-pressure Raymond Mill Crusher Size and Height of Grinding Ring 480*100mm
High-pressure Raymond Mill Crusher Size and Height of Grinding Ring 480*100mm
Main Technical Parameters
|
Model |
Number of rollers |
Grinding roller size |
Size and Height of Grinding Ring |
Maximum feed length |
Product granularity |
Processing capacity |
Monitor rate |
| pcs | mm | mm | mm | mm | t/h | KW | |
| KL-4R3216 | 4 | 320*160 | 1073*160 | 25 | 0.2-0.044 | 2-6 | 37 |
| KL-4R3220 | 4 | 320*200 | 1075*200 | 25 | 0.2-0.044 | 2-7 | 37 |
This machine is widely used in barite, calcite, white cement, carbon black, light calcium carbonate, thermal insulation materials, corundum, marble, limestone, dolomite, fluorite, lime, titanium dioxide, silicon carbide, potassium feldspar, activated carbon, clay, talcum powder, bentonite, kaolin, gypsum , glass, manganese ore, Titanium ore, refractory materials, coal gangue, coal powder, shells, resin, iron oxide, Honghuangdan, quartz, petroleum coke, etc. Mohs hardness is not greater than 7, and the humidity is 6 More than 500% of medium-cost flammable and explosive materials are pulverized and processed.
The particle size of the finished product can be adjusted arbitrarily within the range of 60-325 mesh, and some materials can reach up to 1000 mesh.
| Other Models | |||||||
| Model | Number of rollers | Grinding roller size | Size and Height of Grinding Ring | Maximum feed length | Product granularity | Processing capacity | Monitor rate |
| pcs | mm | mm | mm | mm | t/h | KW | |
| KL-3R1510 | 3 | 150*100 | 480*100 | 15 | 0.2-0.044 | 0.3-1 | 7.5 |
| KL-3R2615 | 3 | 260*150 | 780*150 | 20 | 0.2-0.044 | 1-1.5 | 18.5 |
| KL-3R2715 | 3 | 270*150 | 830*150 | 20 | 0.2-0.044 | 1-3 | 22 |
| KL-3R3016 | 3 | 300*160 | 880*160 | 20 | 0.2-0.044 | 1-4 | 30 |
| KL-3R3018 | 3 | 300*180 | 990*180 | 20 | 0.2-0.044 | 3-5 | 30 |
| KL-5R4119 | 5 | 410*190 | 1300*190 | 35 | 0.2-0.044 | 2-8.5 | 75 |
| KL-5R4121 | 5 | 410*210 | 1300*210 | 35 | 0.2-0.044 | 3-9 | 75 |
| KL-5R4125 | 5 | 410*250 | 1300*250 | 35 | 0.2-0.044 | 5-10 | 75 |
| KL-6R4528 | 6 | 450*280 | 1600*280 | 40 | 0.2-0.044 | 3-16 | 132 |
| Note: The supporting equipment for this product description, such as jaw crusher, elevator, feeder, silo, electric cabinet, motor, etc., are optional equipment and can be purchased according to user needs! | |||||||
