KL-5R4119 Mill Crusher High-pressure Raymond Mill Grinding Roller Size 410*190mm

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 15-35days

Brand: KELI

Product Description

KL-5R4119 Mill Crusher High-pressure Raymond Mill Grinding Roller Size 410*190mm

Main Technical Parameters
Model	Number of rollers (pcs)	Grinding roller size (mm)	Size and Height of Grinding Ring (mm)	Maximum feed length (mm)	Product granularity (mm)	Processing capacity (t/h)	Monitor rate (KW)
KL-3R1510	3	150*100	480*100	15	0.2-0.044	0.3-1	7.5
KL-3R2615	3	260*150	780*150	20	0.2-0.044	1-1.5	18.5
KL-3R2715	3	270*150	830*150	20	0.2-0.044	1-3	22
KL-3R3016	3	300*160	880*160	20	0.2-0.044	1-4	30
KL-3R3018	3	300*180	990*180	20	0.2-0.044	3-5	30
KL-4R3216	4	320*160	1073*160	25	0.2-0.044	2-6	37
KL-4R3220	4	320*200	1075*200	25	0.2-0.044	2-7	37
KL-5R4119	5	410*190	1300*190	35	0.2-0.044	2-8.5	75
KL-5R4121	5	410*210	1300*210	35	0.2-0.044	3-9	75
KL-5R4125	5	410*250	1300*250	35	0.2-0.044	5-10	75
KL-6R4528	6	450*280	1600*280	40	0.2-0.044	3-16	132

Performance features	Small investment, high benefit, under the condition of the same output and fineness, its price is only 1/4 of jet mill.
	There are few production links. Compared with the jet mill, the high-pressure micro-powder mill must first crush the 20mm material to 100 mesh before it can be processed into ultra-fine powder, while the high-pressure micro-powder mill can directly process the material with a particle size below 20mm at one time. Ultrafine powder with an average particle size of <6.5u. [Finished particle size 500 mesh - 1250 mesh (0.01 )]
	The dust removal effect of the high-pressure micro powder mill fully meets the national dust emission standards.
	Compared with other mills, the rolling force of the grinding roller to the material is increased by 800-1200kg under the action of the high-pressure spring.
	The grinding device adopts overlapping multi-stage sealing, which has good sealing performance.
	Energy saving, under the condition of the same output and fineness, its system energy consumption is only one-third of that of jet mill.

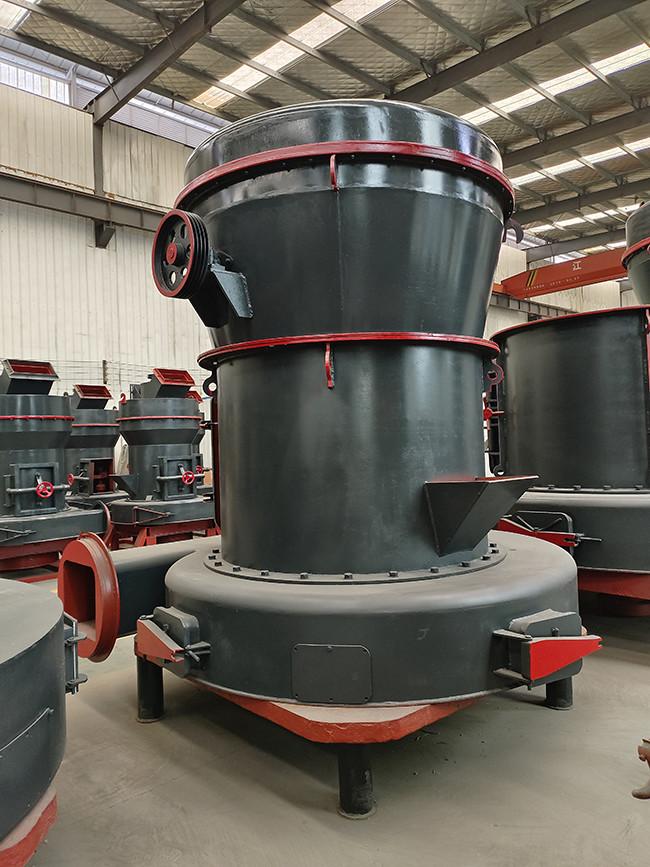

High-pressure Raymond Mill

High-pressure Raymond Mill is a new type of grinding machine suitable for processing powder in industries such as mining, cement, fire resistance, building materials, pharmaceuticals, dyes, etc.
Its output and energy consumption reach or exceed the national standard, and has been praised by relevant experts and people from all walks of life at home and abroad.
