Product Description:

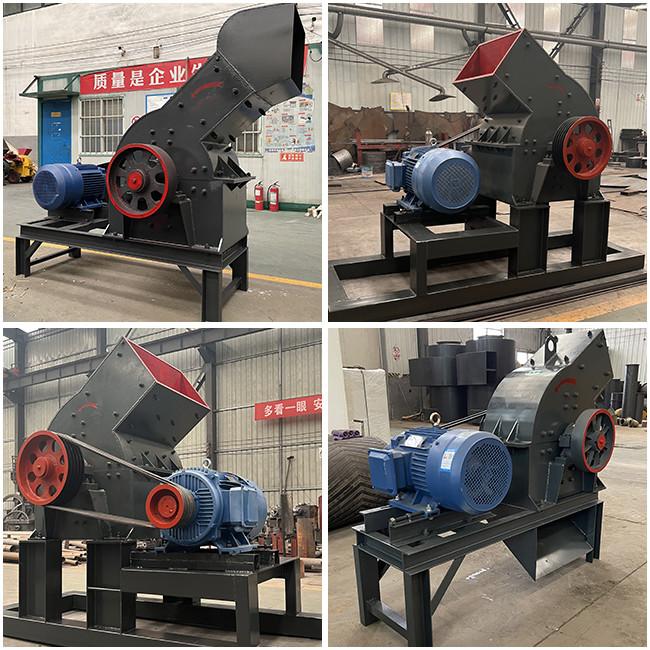

The hammer crusher is composed of several parts that work together to achieve the crushing purpose. The main part is the rotor, which is made up of a main shaft, a disc, a pin and a hammer. Additionally, there is an upper casing, a lower casing and a transmission member.

This machine works by motor driving the rotor to rotate at a high speed in the crushing chamber. The materials are fed into the chamber from the upper feed port and get their size reduced by the impact, shearing and grinding effect brought by the hammer. The size of the final product that is smaller than the mesh size of the sieve plate is discharged from the sieve plate at the lower part of the rotor.

The ones that are larger than the mesh size of the sieve plate are retained on the sieve plate and keep getting struck and ground by the hammer. Finally, they are discharged from the outside of the machine through the sieve plate.

Applications:

This type of crusher is especially fit for medium crushing, which can be seen in the industries of construction, electrical power, chemical, metallurgy, geology, and other areas. Ores and rocks such as coal, limestone, and slag, with medium hardness are mostly suitable for this crusher.

Product Parameters:

Model	PC300x200	PC400x300	PC600x400	PC800x600	PC1000x800	PC1000x1000
Feed particle size (mm)	100	200	250	250	350	350
Discharge particle size (mm)	8	25	30	35	35	35
Productivity(t/h)	1-5	5-10	10-22	18-40	25-50	30-55
Number of motor poles	4	4	4	4	4	6
Power(kw)	5.5	11	11-22	30-55	75	90
Dimensions(mm)	630*380*630	900*670*860	1200*1050*1200	1310*1180*1310	1600*1390*1575	1800*1590*1775
Machine weight(kg)	200	800	1500	3200	4300	8000
