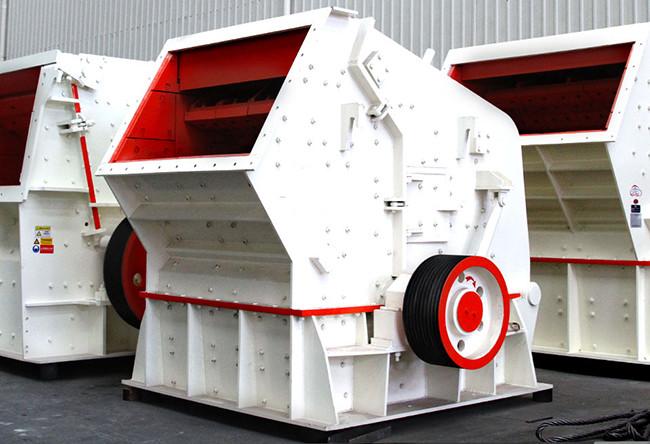

Mill Crusher KL-PF-1214 SGS Mild Steel Impact Crusher 80-180t/h
Mill Crusher KL-PF-1214 SGS Mild Steel Impact Crusher 80-180t/h
| Product Description | ||||||
|
KL-PF impact crusher can process many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP(such as limestone, gypsum, concrete, etc.). The adoption of no-board connection and hydraulic valve not only reduces the customer's operation cost, but also improves the production efficiency. Finished products are cubic without tension or cracks and the shape is quite good. |
||||||
| Advantages | ||||||
|
1. High energy saving Large feed opening, high crushing cavity, adapt to the high hardness of the material, large size, the product less stone powder |
||||||
|
2.Good particle size The gap between the impact plate and the hammer can be easily adjusted, effectively controlling the particle size of the discharged material, and the particle shape is good. |
||||||
|
3.Structure Compact structure, strong rigidity, large rotor moment of inertia. |
||||||
|
4. High comprehensive efficiency High chrome plate hammer, anti-impact, anti-wear, high impact force. |
||||||
| Model | Rotor size (mm) |
Feeder opening size (mm) |
Max feeding size (mm) |
Capacity (t/h) |
Power (kw) |
Overall dimension (mm) |
| KL-PF-1007 | φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| KL-PF-1010 | φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| KL-PF-1210 | φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| KL-PF-1214 | φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| KL-PF-1315 | φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| KL-PF-1320 | φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| KL-PF-1520 | φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| KL-PF-1820 | φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
Working Principle
Impact crusher is a kind of crushing machine which utilizes impact energy to crush materials. When the machine works, driven by the motor, the rotor rotates at high speed, the material enters into the plate hammer action area, crushes with the plate hammer on the rotor, and then it is thrown to the counterattack device to be crushed again, and then bounces back to the plate hammer action area to be crushed again from the counterattacking liner plate, and the process repeats itself, and the material enters into the first, second, and third impacting chambers to be crushed again from big to small, until the material is crushed to the required granularity, and then discharged from the discharge port. Discharge. Adjusting the gap between the counterattack frame and the rotor can achieve the purpose of changing the granularity and shape of the material.
