DC 24V LED RGB Controller Mini RF Wireless Touch Remote For LED 5050 Strip

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: 3-10days

Product Description

DC5-24V LED RGB Controller Mini RF Wireless Touch Remote For / RGB /RGBW / RGBCCT LED 5050 Strip Control

Description - Text Version

PIN LED Controller + RF Touch Remote Control Brightness Dimming and Color Temperature Adjustable for Colorful LED 5050 Strips

Wireless Slim Touch RF Remote Control is a smart and compact LED controller.
It is very convenient and quick to use this controller without any welding, just plug in the power supply and the light bar label directly;
The controller is suitable for RGB/RGBW/RGBCCT lights, such as 5050 light bar module and other dynamic effects such as gradient, jump, flash, etc.;
It can be selected according to the different needs of customers, and a variety of dynamic color options can be widely used in popular places such as TV background walls, bedside tables, bar counters, etc.

Basic parameters:

Working temperature: -20~60℃
Input voltage: DC5-24V
Output current: maximum 6A
Connection method: common anode
Net weight: about 55g
Gross weight: about 62g
Static power consumption: <0.5W
Output power: 5V: <30W; 12V: <72W; 24V: <144W

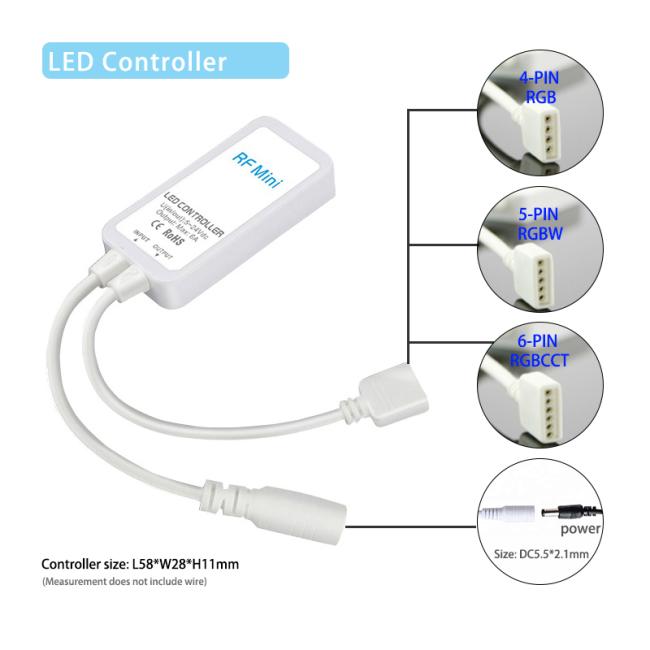

Controller size: L58*W28*H11mm

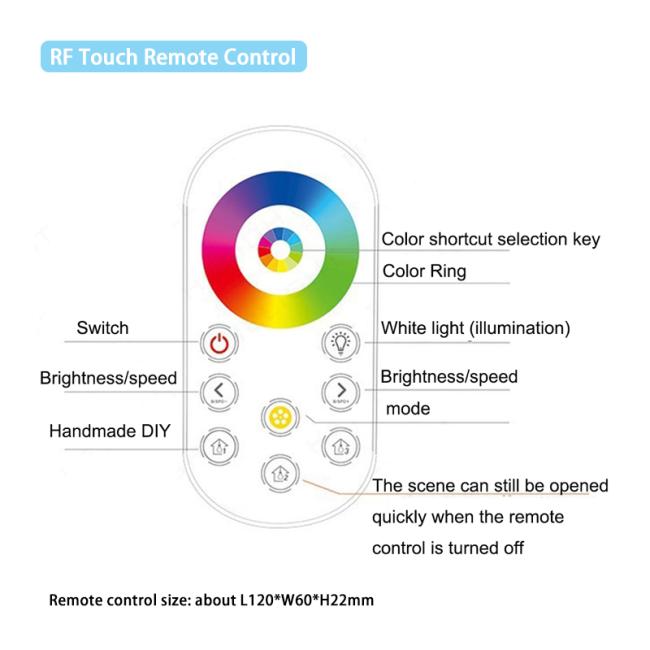

Remote control size: about L120*W60*H22mm RGB - 3CH*2A RGBW - <6A, RGB+CCT - RGB 3*2A + CCT 2*2A total 6A

Specification

item	value
Warranty(Year)	1-Year
Lighting solutions service	Lighting and circuitry design, Project Installation
Product Weight(kg)	0.06
Place of Origin	China
	Guangdong
Brand Name	MegBox
Type	Remote Control
Max. Load Power	144W
Connection Mode	common anode
Product name	RF Double White controller
Application	Led Strip Lighting
Keyword	Colorful light bar controller
Working temperature	-20~60℃
Input voltage	DC5-24V
Output current	maximum 6A
Static power consumption	<0.5W
Output power	5V: <30W; 12V: <72W; 24V: <144W
Controller size	L58W28H11mm
Remote control size	about L120W60H22mm
