Aluminum Shell LED Signal Power Amplifier RGB Dimming 30A 150W 360W 720W
Aluminum Shell RGB Dimming Controller Signal Amplifier 30A DC5-24V 150W 360W 720W High Power Output For Light Strips
Introduction
1. The input voltage is adaptive DC5V or 12~24V, and has the function of input polarity protection.
2. Adapt to various PWM dimming signals, the change effect is delicate and flicker-free.
3. Using high-power dimming control MOS tube, the driving load capacity is strong, the maximum can reach 30A, and the performance is stable.
4. Input and output brightness remain almostunchanged.
5. The signal input and output of the power expander have .
Product Description
Specification
|
item |
value |
|
Warranty(Year) |
1 Year |
|
Lighting solutions service |
Project Installation |
|
Luminous Efficacy(lm/w) |
6 |
|
Product Weight(kg) |
0.15 |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Type |
Remote Control |
|
Max. Load Power |
720W |
|
Connection Mode |
Common anode |
|
Input Voltage |
12-24VDC |
|
Output Current |
3 channel, 10A per channel |
|
Output type |
Constant Voltage |
|
Output Signal |
PWM LED Dimming Signal |
|
Dimming range |
0-100% dimming |
|
Working temperature |
-20~56℃ |
|
Application |
for RGB LED strip |
|

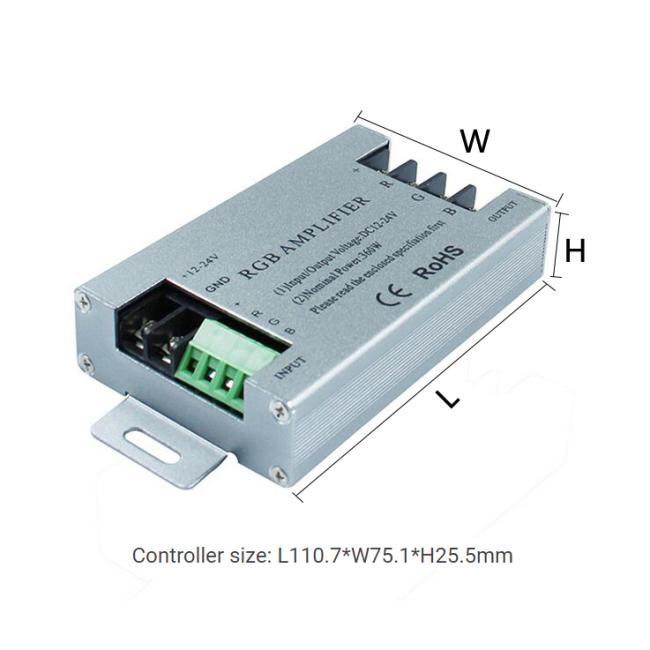

Size |
L110.7*W75.1*H25.5mm |
|
Net Weight |
150g |
|
Output power |
5V<150W;12V<360W;24V<720W |
|
|
