Feature function:
(1) Easy back installation for flexible PCB (IP30, IP65) 3M adhesive tape.
(2) energy saving and environmental protection.
(3) high brightness 5050 SMD LED light strip.
(4) solid state, high shomck or vibration resistance.
(5) low power consumption, high density.
(6) Match with RGB controller and power supplier system.
(7) wide viewing angle.

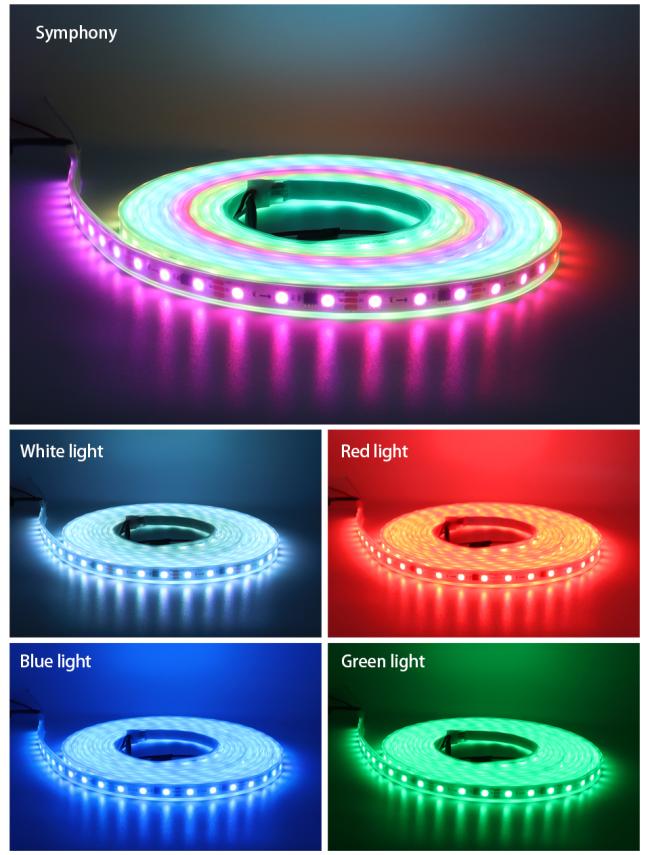

(8) Available in a variety of single and RGB colors.
Product Specification:
(1) working voltage: DC 12V

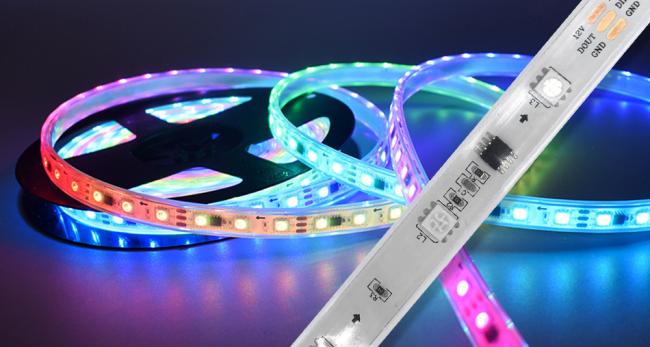

(2) LED source: SMD 5050 RGB
(3) LED chip: Epistar
(4) LED qty: 30 or 60 LEDs / M
(5) IC qty: 10 or 20 PCS WS2811B/M
(6) power: 9 or 18W/M
(7) gray scale: 256 / color
(8) cuttable: 3 leds / cut-out (external 2811 ic, 1 ic control 3 LEDs)
(9) beam angle: 120 °
(10) color mode: 133 patterns and 100 speeds
(11) size: 5000mm x 10mm x 2.4mm
(12) packing: 5m / roll 12v ws2811 rgb strip
(13) warranty: 1 years
Note:
Must use DC12V power supply and Led controller to control WS2811!
Every 0.5 meters with solder joints, please note!
PCB color:
White: white PCB; Black: black PCB
Protection class:
(1) IP30 --- no waterproof for indoor use
(2) IP65 --- silicone coating, easy cutting, outdoor use
(3) IP67 --- silicone tube, need reseal after cut, outdoor use
(4) IP68 --- IP65 + IP67, can work underwater (if you need we can do it for you!)

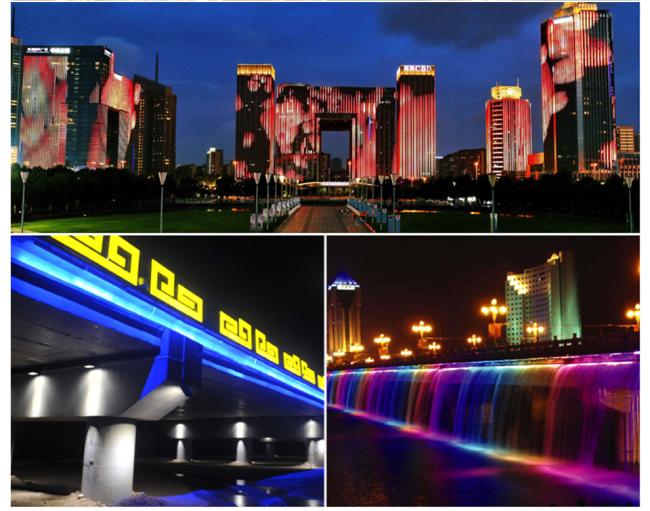

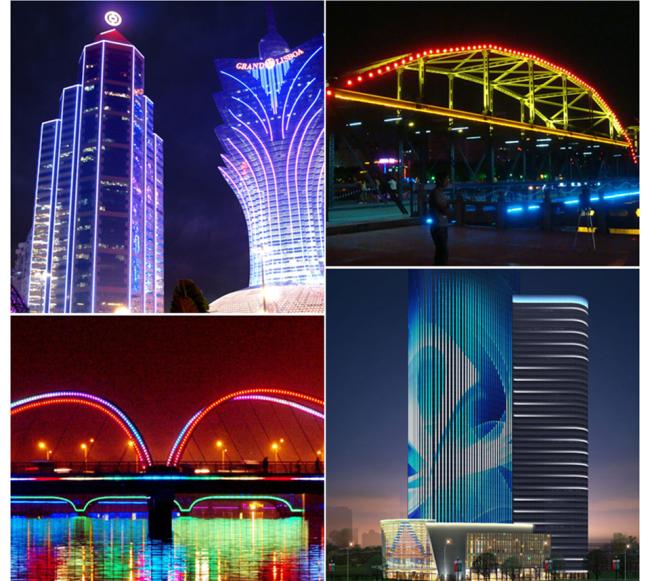

Easy to install, Each LED lamp can be arbitrarily cut, good flexibility, easy installation, arbitrary bend Dream color lighting, Match use controller can appear colorful curtain-up / flow water / raindrop / jump flash and so on hundreds of lighting effects, You can also edit the animation effect with Coreldraw / Flash / LedEdit software. City lighting project, entertainment and entertainment places lighting.
Package List:
IP67 waterproof LED Pixel Strip*1 Roll(5m)
