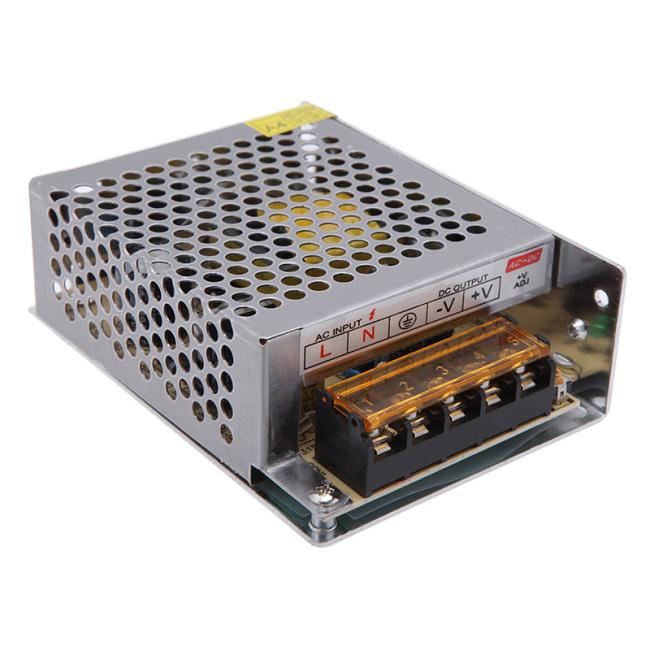

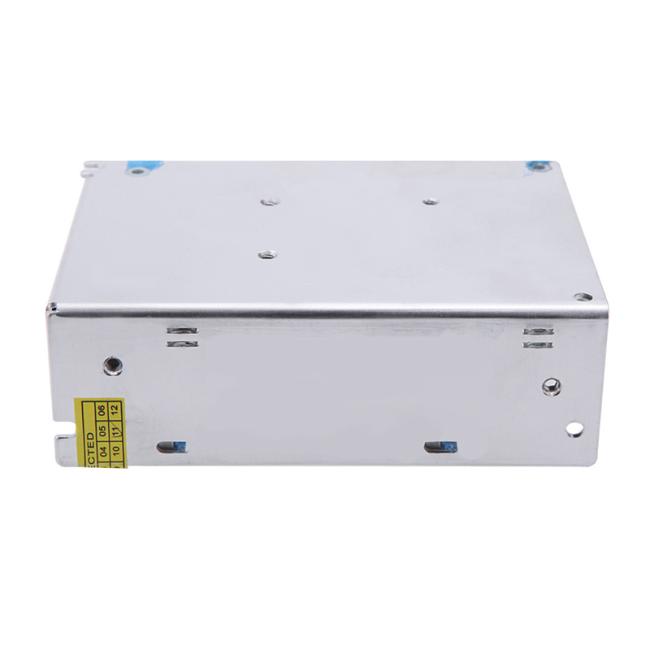

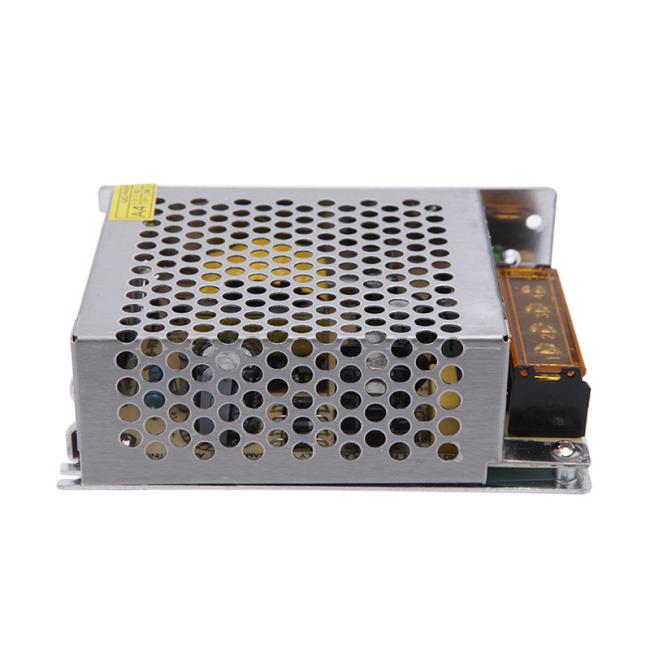

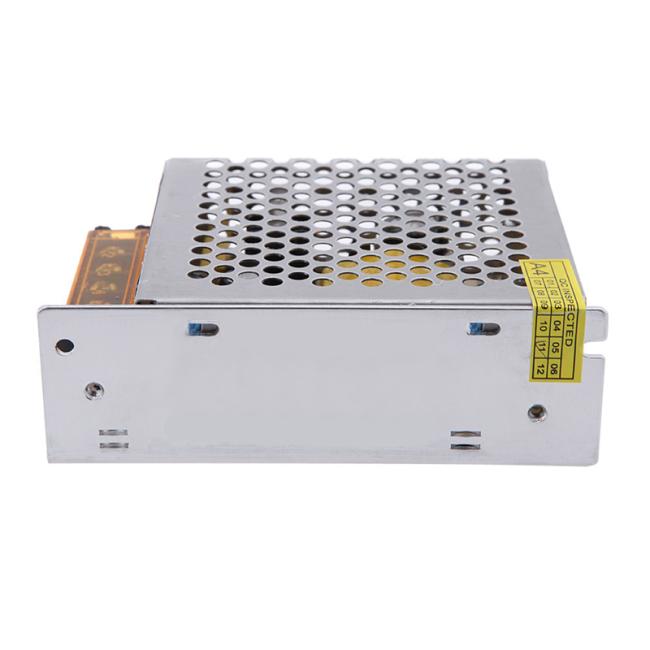

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip
|
Model |
S-50-5-10A |
|
AC input voltage range(V) |
AC 100-240V |
|
Input current(A) |
2.17A/115VAC;1.08A/230VAC |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
89%(230VACFull Load) |
|
Inrush current(A) |
cold start 20A/115V AC 40A/230VAC |
|
Leakage current(mA) |
<3.5mA/240VAC |
|
Output Voltage(V) |
+5VDC |
|
Voltage Regulation |
±10% |
|
Output Current(A) |
10A |
|
Current Range (A) |
0-10A |
|
Rated Power(W) |
50W |
|
Start time, hold-up time(ms) |
300ms/230VAC 800ms,/115VAC at full load |
|
Rise time(ms) |
50ms at Full Load |
|
Ripple/Noise(MVP-p) |
120mVp-p |
|
working Temperature (°C) |
-10 centidegree to+60 centidegree |
|
Storage Temperature(°C) |
-20 centidegree to+85 centidegree |
|
Humidity |
20% to90%RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(mm) |
110*78*35 |
|
Weight |
195g |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-50-5-10A |
|
Output Power |
50W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
5V |
|
Output Frequency |
50~60(HZ) |
|
Output Current |
0-10(A) |
|
Product Name |
Swtiching Power |
|
Application |
LED Strip |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
Constant Voltage |
|
Efficiency |
95% |
|
Weight |
0.3kg |
|
Size |
110*78*35(mm) |
|
Protections |
OPP OVP SCP OCP |
|
Name |
AC DC Power Module Converter |
