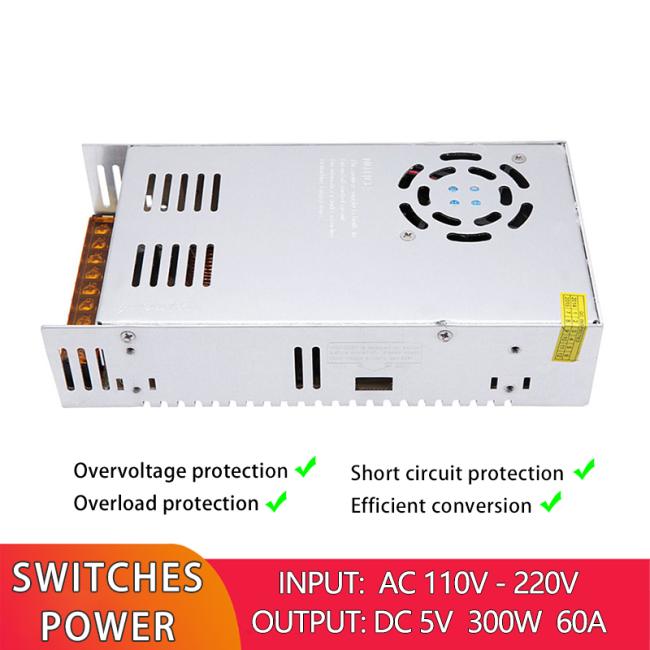

Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter
S-300-5 Single Output Voltage 300W 60A 5V Dc Switching Power Supply Module
|
Model |
S-300-5 |
|
AC input voltage range(V) |

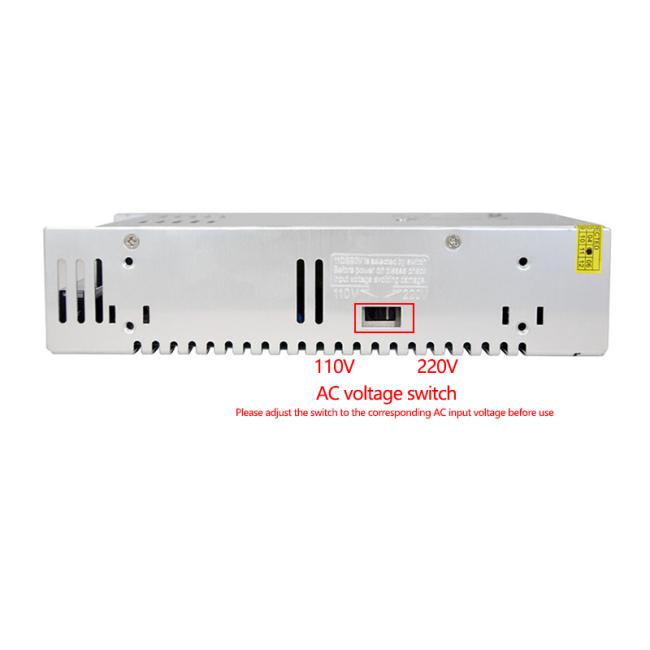

AC 110/220V±15%(switch replacement) |
|
AC Input current(max) |
6.5A /115V,4A /230V |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
90% Typ(230VACFull Load) |
|
Inrush current(A) |
Current 25A/115V 50A/230V cold start |
|
Leakage current(mA) |
<3.5mA/240VAC |
|
Output Voltage(V) |
5V DC |
|
Voltage Regulation |
±10% |
|
Output Current(A) |
60A |
|
Current Range (A) |
0~60A |
|
Rated Power(W) |
300W |
|
Start time,hold-up time(ms) |
Ton≤200ms,Td≥30ms @230Vac Full Load |
|
Rise time(ms) |
Typ:100ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
150mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage(13.8-16.2V) |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|

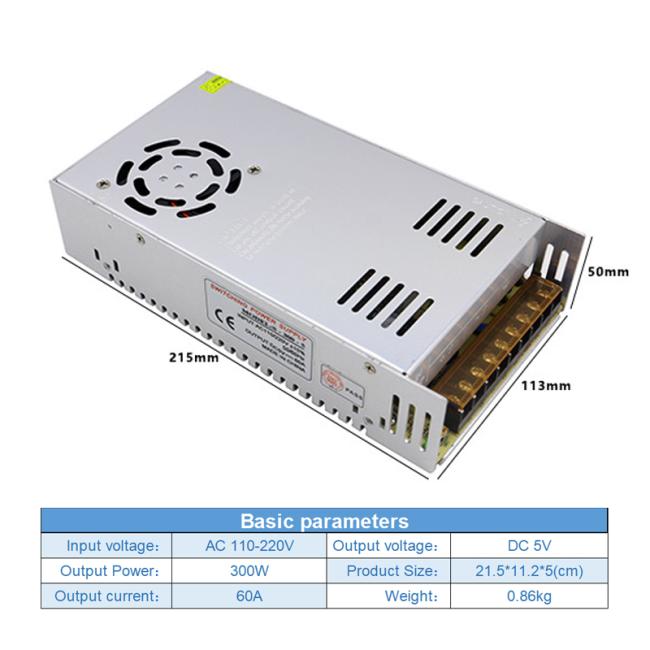

Packing Size / Product Size(cm) |
22*11.7*5.5/ 21.5*11.2*5 |
|
Gross Weight / Net Weight(kg) |
0.865 /0.825 |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-300-5 |
|
Output Power |
300W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
5V |
|
Output Frequency |
50-60Hz |
|
Output Current |
5A |
|
Product Name |
Swtiching Power |
|
Application |
LED Strip |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
Constant Voltage |
|
Efficiency |
95% |
|
Weight |
0.86KG |
|
Size |
215*112*50mm |
|
Protections |
OPP OVP SCP OCP |
|
Name |
AC DC Power Module Converter |
|
|
