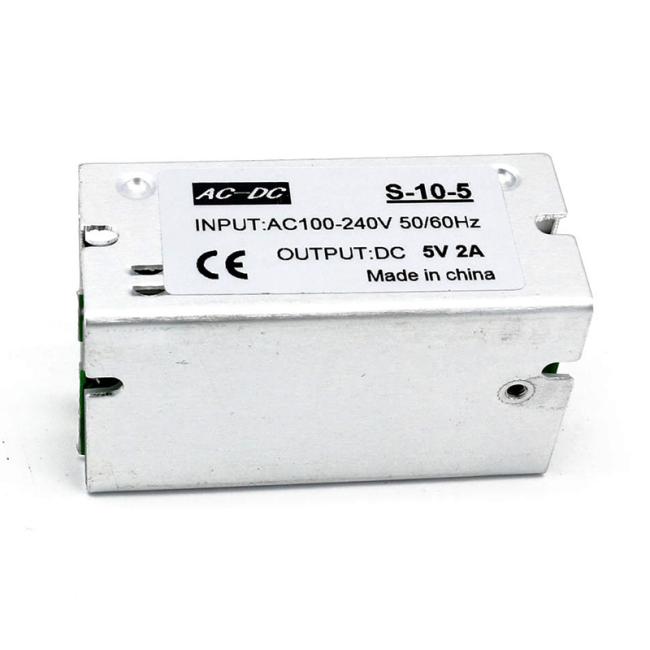

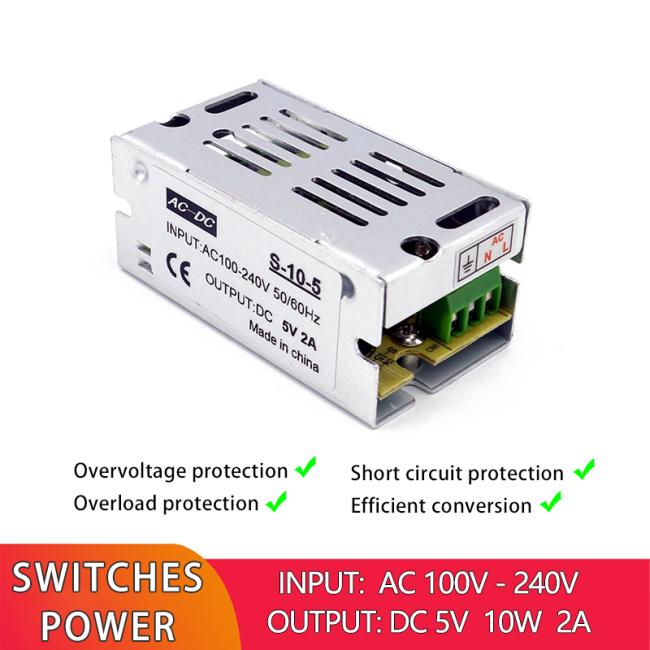

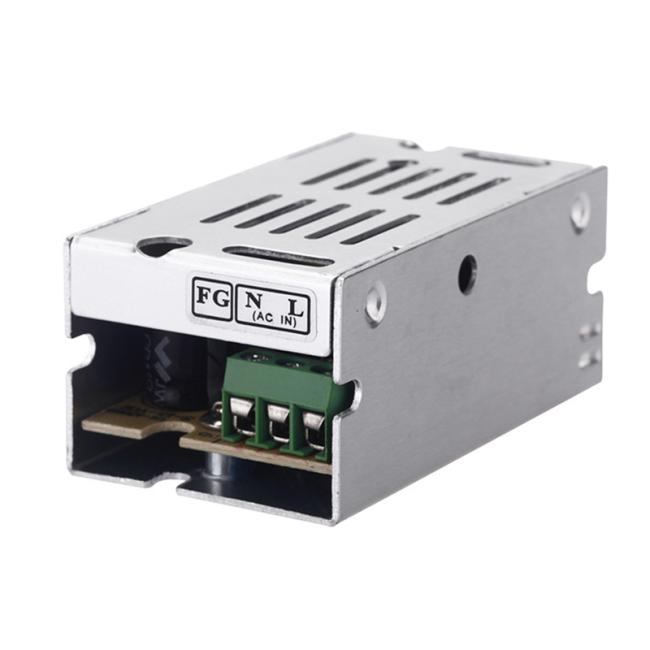

Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting
Mini Indoor Switching Power Supply AC100V 240V to DC 5V 10W 2A LED Light Adapter for Urban Lighting
AC 100V 240V to DC 5V 10W 2A Metal Shell Indoor Constant Voltage Switching Power Transformer Adapter for LED Display Lights
|
Model |
S-10-5 |
|
AC input voltage range(V) |
AC100-240V |
|
AC Input current(max) |
0.22A /AC220V;0.45A/AC110V |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
90% Typ(230VACFull Load) |
|
Inrush current(A) |
Cold-start 20A/230V |
|
Leakage current(mA) |
<3mA/240VAC |
|
Output Voltage(V) |
DC 5V |
|
Voltage Range |
5V±5% |
|
Output Current(A) |
2A |
|
Current Range (A) |
0-2A |
|
Rated Power(W) |
10W |
|
Start time,hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|

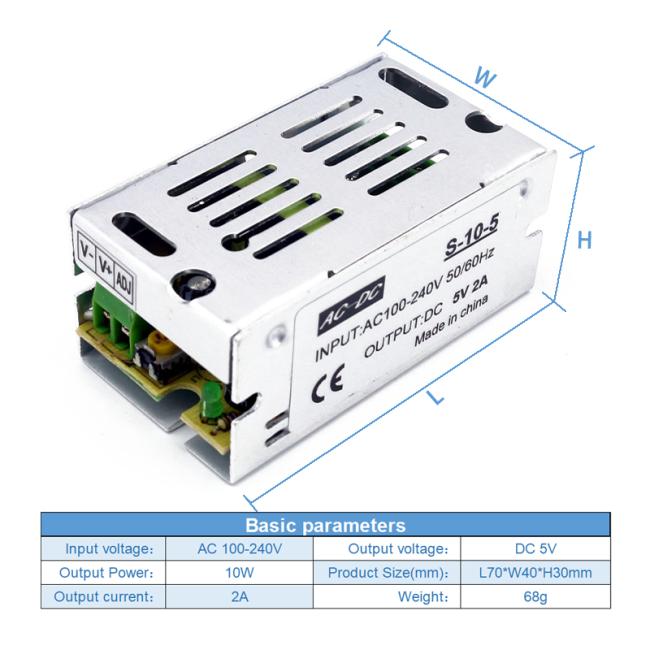

Size L*W*H |
L70*W40*H30mm |
|
Weight |
68g |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-10-5 |
|
Output Power |
10W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
5V |
|
Output Frequency |
50-60Hz |
|
Output Current |
2A |
|
Product Name |
Swtiching Power |
|
Application |
LED Strip |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
Constant Voltage |
|
Efficiency |
90% |
|
Weight |
68g |
|
Size |
70*40*30mm |
|
Protections |
OPP OVP SCP OCP |
|
Name |
AC DC Power Module Converter |
|
|
