30W 5V Switching Power Supply AC 110V 220V To DC 5V 6A For LED Driver Transformer
5V 30W Switching Power Supply Aluminum Case AC 110V 220V to DC 5V 6A LED Driver Transformer
AC to DC Switching Power Supply 5V 30W 6A Indoor LED Lighting Adapter Driver
|
Model |
S-30-5 |
|
AC input voltage range(V) |
AC 100V-240V |
|
Input current(A) |
1.5A/115VAC;0.65A/230VAC |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
86%(230VACFull Load) |
|
Inrush current(A) |
cold start 20A/115V AC 40A/230VAC |
|
Leakage current(mA) |
<3.5mA/240VAC |
|
Output Voltage(V) |
+5VDC |
|
Voltage Regulation |
±10% |
|
Output Current(A) |
6A |
|
Current Range (A) |
0-6A |
|
Rated Power(W) |
30W |
|
Start time, hold-up time(ms) |
300ms/230VAC 800ms,/115VAC at full load |
|
Rise time(ms) |
50ms at Full Load |
|
Ripple/Noise(MVP-p) |
120mVp-p |
|
working Temperature (°C) |
-10 centidegree to+60 centidegree |
|
|
|
|
|
|
|
Storage Temperature(°C) |
-20 centidegree to+85 centidegree |
|
Humidity |
20% to90%RH non condensing |
|

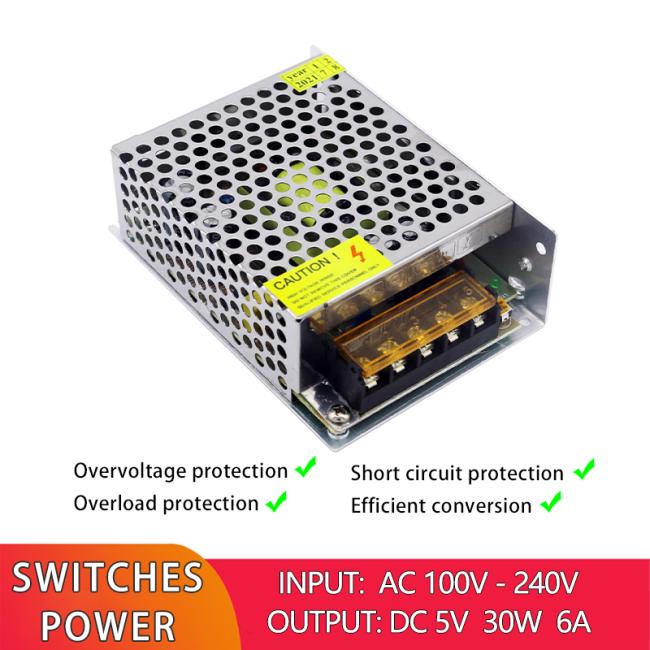

Over voltage Protection |
>115%-135% Rated output voltage |
|
|
|
|
|
|
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|

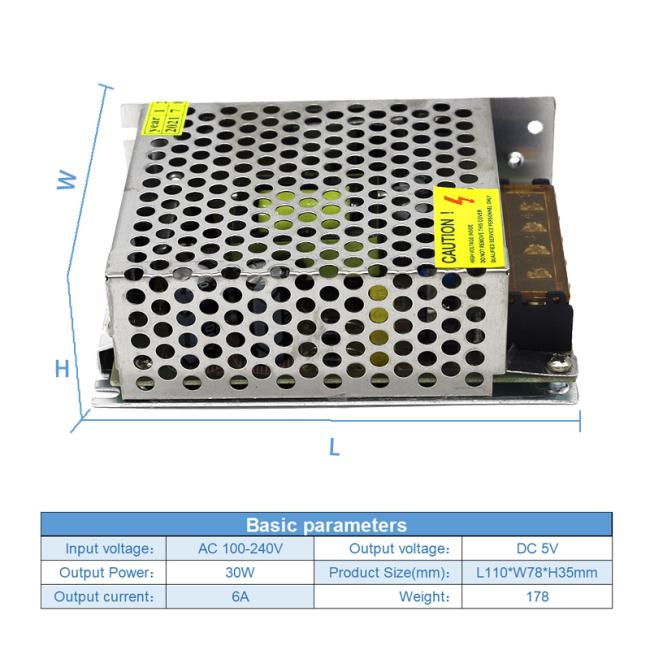

Size L*W*H(mm) |
L110*W78*H35mm |
|
Weight |
178g |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-30-5 |
|
Output Power |
30W |
|
Output Type |
Single |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
5V |
|
Output Frequency |
50-60Hz |
|
Output Current |
6A |
|
Product Name |
Swtiching Power |
|
Application |
LED Strip |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
Constant Voltage |
|
Efficiency |
86% |
|
Weight |
178g |
|
Size |
110*78*35mm |
|
Protections |
OPP OVP SCP OCP |
|
Name |
AC DC Power Module Converter |
|
|
