Switching Power Supply 12V 20A 240W For Advertising Light Box
Advertising Light Box Power Switching Power Supply Ac 170v 250v To Dc 12v 240w 20a Led Lighting Driver

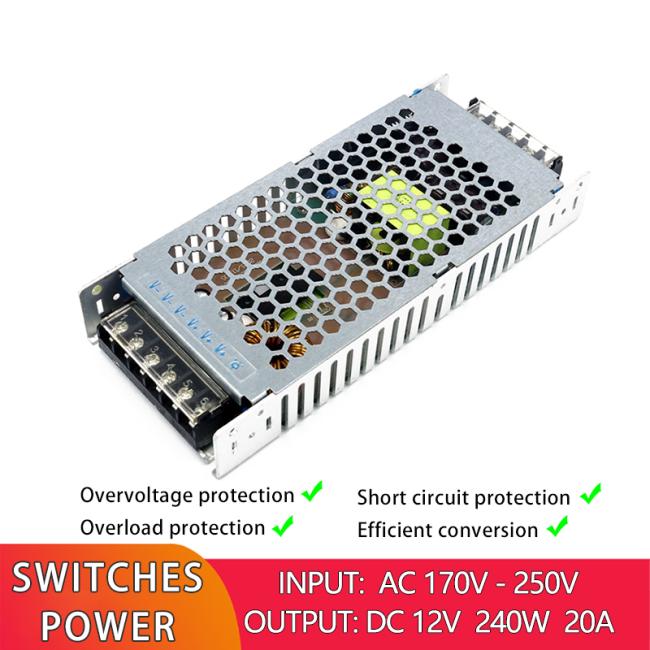

AC to DC Indoor Chassis Switching Power Supply 12V 240W 20A Corrosion Resistant Metal Housing Suitable for LED Lighting
|
Model |
CB-240-12 |
|
AC input voltage range(V) |
AC170~250V |
|
AC Input current(max) |
5.5A /AC220V; |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
86% Typ(230VACFull Load) |
|
Inrush current(A) |
Cold-start 20A/230V |
|
Leakage current(mA) |
<3mA/240VAC |
|
Output Voltage(V) |
12VDC |
|
Voltage Range |
+5%,-5% |
|
Output Current(A) |
20A |
|
Current Range (A) |
0-20A |
|
Rated Power(W) |
240W |
|
Start time,hold-up time(ms) |
Ton≤1000ms,Td≥20ms @230Vac Full Load |
|
Rise time(ms) |
Typ:20ms @230Vac Full Load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
|
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
Over voltage Protection |
>115%-135% Rated output voltage |
|
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Size L*W*H(cm) |
195*82*29mm |
|
Weight |
435g |
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
CB-240-12 |
|
Output Power |
240W |
|
Output Type |
Single |
|
Input Voltage |
AC170-250 |
|
Output Voltage |
12V |
|
Output Frequency |
50-60Hz |
|
Output Current |
20A |
|
Product Name |
Chassis Switching Power Supply |
|
Application |
LED Lighting |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
AC DC Power Module Converter |
|
Efficiency |
86% |
|
Weight |
435g |
|
Size |
195*82*29mm |
|
Protection |
OCP OVP SCP OPP |
|
Protections |
Short Circuit Overtemp Overload Overvolt |
|
|
|
|
