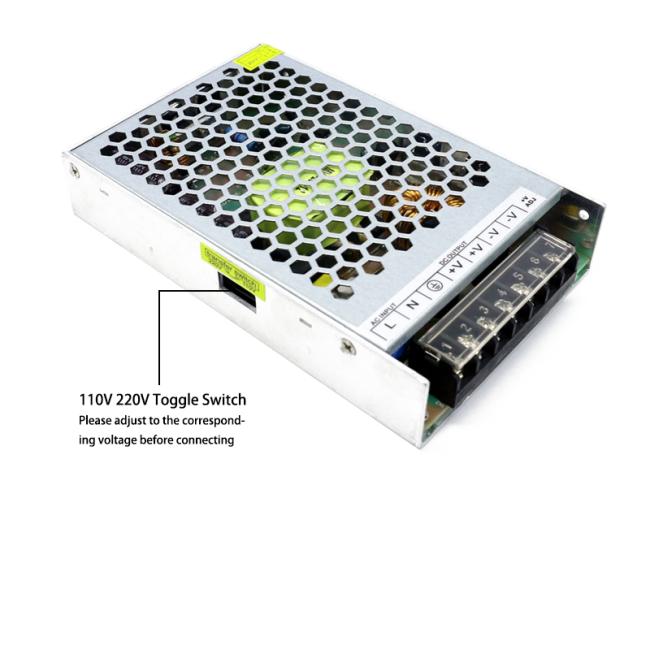

Aluminum Ultra Slim Switch Power Supply 150W 110V 220V AC To DC 12V 2.5A
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-10days
Product Description
150W Switching Power Supply Aluminum Ultra Slim 110V 220V AC to DC 12V 2.5A Converter Transformer LED Driver
Open Chassis Switching Power Supply 12V 12.5A
About this project
◆ Input: 110V/220V AC; Output: DC 12V 12.5A max. The output voltage is adjustable by 15%. Three groups of output channels.

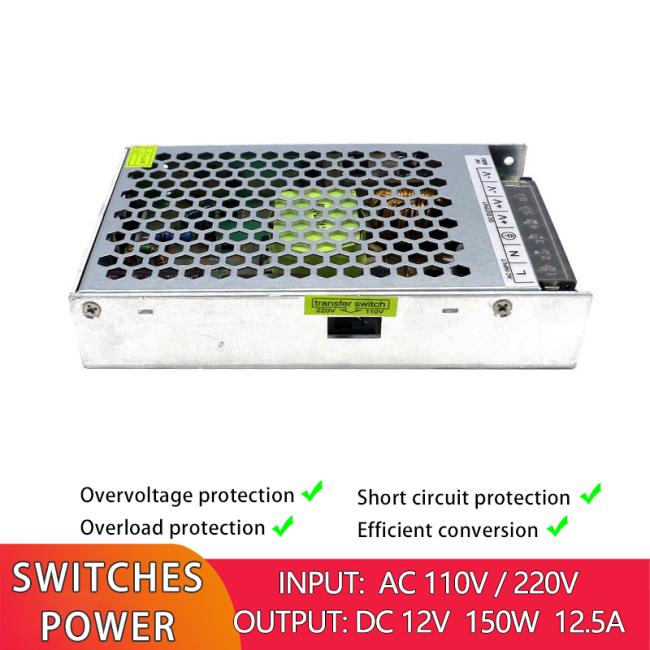

◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.
◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.
◆ The metal shell has more openings for more efficient heat dissipation.
◆ Suitable for LED strips, 3D printers, ham radio transceivers, CCTV cameras, audio amplifiers, wireless routers, ADSL Cats, HUB, audio/video power supplies. Indoor use only!
|
Model
|
CBS-150-12
|
|
AC input voltage range(V)
|
AC110/220V±15%
|
|
AC Input current(max)
|
3.4A /AC220V;6.8A/AC110V
|
|
Frequency (Hz)
|
50/60Hz
|
|
Efficiency
|
80% Typ(230VACFull Load)
|
|
Inrush current(A)
|
Cold-start 20A/230V
|
|
Leakage current(mA)
|
<3mA/240VAC
|
|
Output Voltage(V)
|
12V DC
|
|
Voltage Regulation
|
+10%,-10%
|
|
Output Current(A)
|
12.5A
|
|
Current Range (A)
|
0-12.5A
|
|
Rated Power(W)
|
150W
|
|
Start time,hold-up time(ms)
|
Ton≤1000ms,Td≥20ms @230Vac Full Load
|
|
Rise time(ms)
|
Typ:20ms @230Vac Full Load
|
|
Ripple/Noise(mVp-p)
|
120mVp-p
|
|
working Temperature (°C)
|
-40°C - +65°C(refer derating curve)
|
|
Storage Temperature(°C)
|
-20°C - +60°C
|
|
Humidity
|
20% - 90% RH non condensing
|
|
Over voltage Protection
|
>115%-135% Rated output voltage
|
|
Over load Protection
|
>105%-150% Auto recovery
|
|
Short circuit Protection
|
Latched
|
|

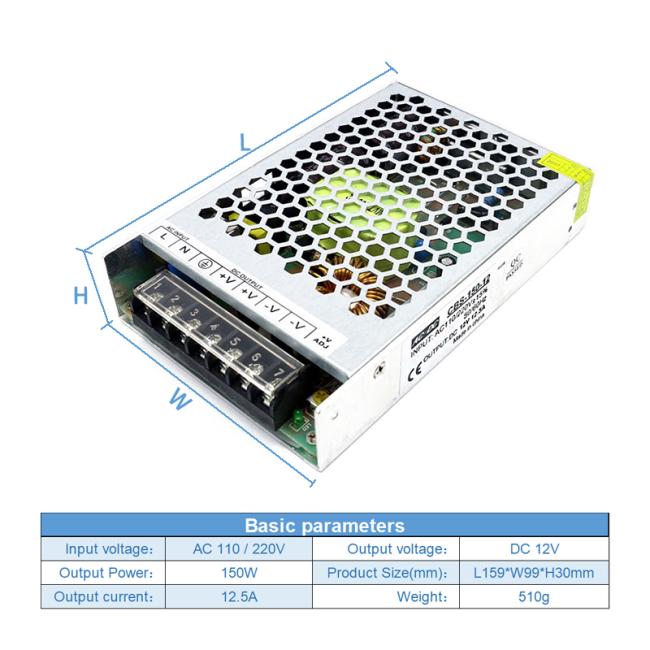

Size L*W*H(mm)
|
159*99*30
|
|
Weight
|
510g
|
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
CBS-150-12
|
|
Output Power
|
150W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC110V-220V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
12.5A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
80%
|
|
Weight
|
510g
|
|
Size
|
159*99*30mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
