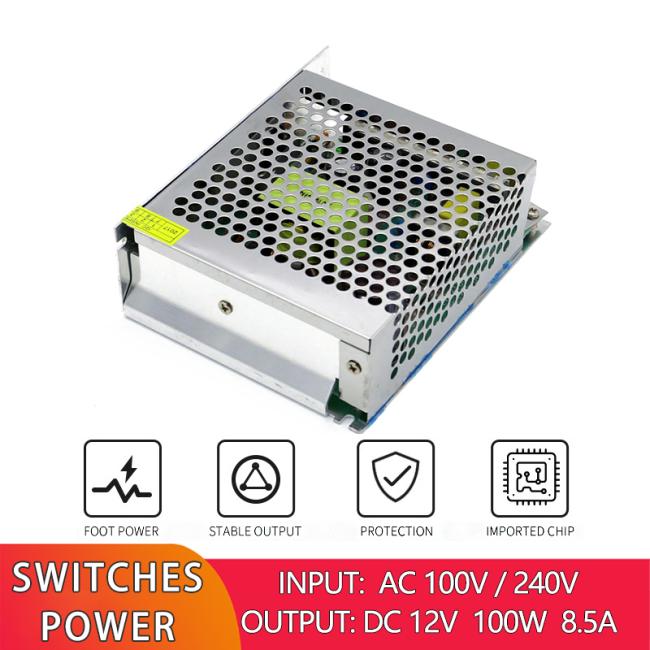

Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-10days
Product Description
AC 100V 240V to DC 12V 8.5A 100W Regulated Switching Power Supply Transformer Adapter LED Driver
AC 100V 240V to DC 12V 8.5A 100W Universal Regulated Switching Power Transformer Adapter LED Driver for LED Light Bar, CCTV Camera System, Radio
About this project
◆ Input: 100V/240V AC; Output: DC 12V 8.5A max.
◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.
◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.
◆ The metal shell has more openings for more efficient heat dissipation.
◆ Suitable for LED strips, 3D printers, ham radio transceivers, CCTV cameras, audio amplifiers, wireless routers, ADSL Cats, HUB, audio/video power supplies. Indoor use only!

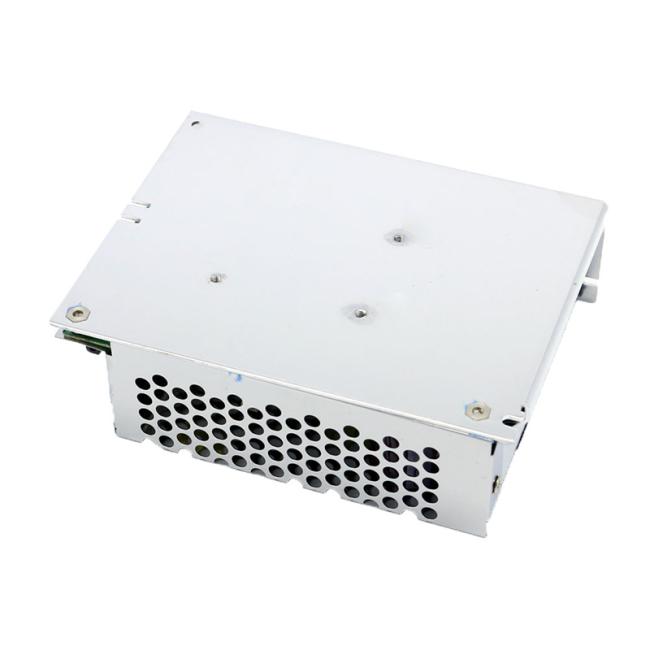

Thickened metal shell
The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant
Featured Components
Selected high-quality components, sufficient power. Stable output, energy saving and safer
|
Model
|
S-100-12
|
|
AC input voltage range(V)
|
AC100-240V
|
|
AC Input current(max)
|
0.5A /AC220V;1A/AC110V
|
|
Frequency (Hz)
|
50/60Hz
|
|
Efficiency
|
88% Typ(230VACFull Load)
|
|
Inrush current(A)
|
Cold-start 20A/230V
|
|
Leakage current(mA)
|
<3mA/240VAC
|
|
Output Voltage(V)
|
12VDC
|
|
Voltage Range
|
12V±5%
|
|
Output Current(A)
|
8.5A
|
|
Current Range (A)
|
0-8.5A
|
|
Rated Power(W)
|
100W
|
|
Start time,hold-up time(ms)
|
Ton≤1000ms,Td≥20ms @230Vac Full Load
|
|
Rise time(ms)
|
Typ:20ms @230Vac Full Load
|
|
Ripple/Noise(mVp-p)
|
120mVp-p
|
|
working Temperature (°C)
|
-40°C - +65°C(refer derating curve)
|
|
Storage Temperature(°C)
|
-20°C - +60°C
|
|
Humidity
|
20% - 90% RH non condensing
|
|
Over voltage Protection
|
>115%-135% Rated output voltage
|
|
Over load Protection
|
>105%-150% Auto recovery
|
|
Short circuit Protection
|
Latched
|
|

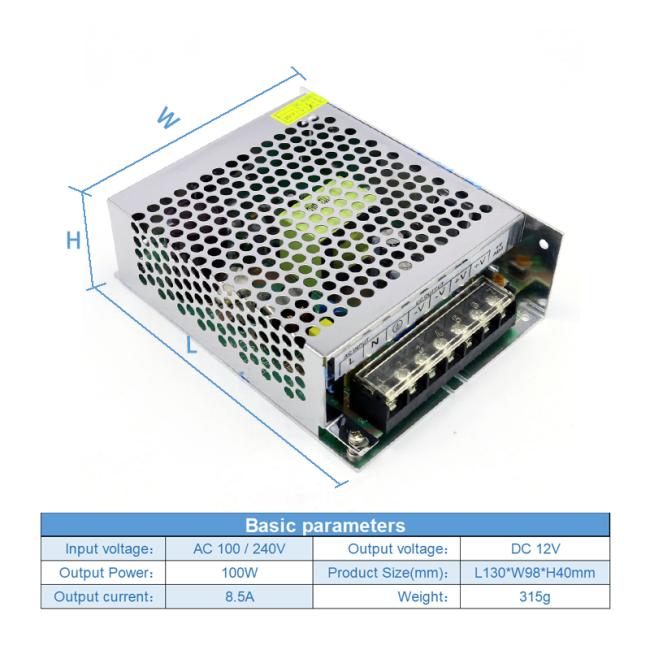

Size L*W*H(mm)
|
L130*W98*H40mm
|
|
Weight
|
315g
|
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
S-100-12
|
|
Output Power
|
100W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC100V-240V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
8.5A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
88%
|
|
Weight
|
315g
|
|
Size
|
L130*W98*H40mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
|
|
