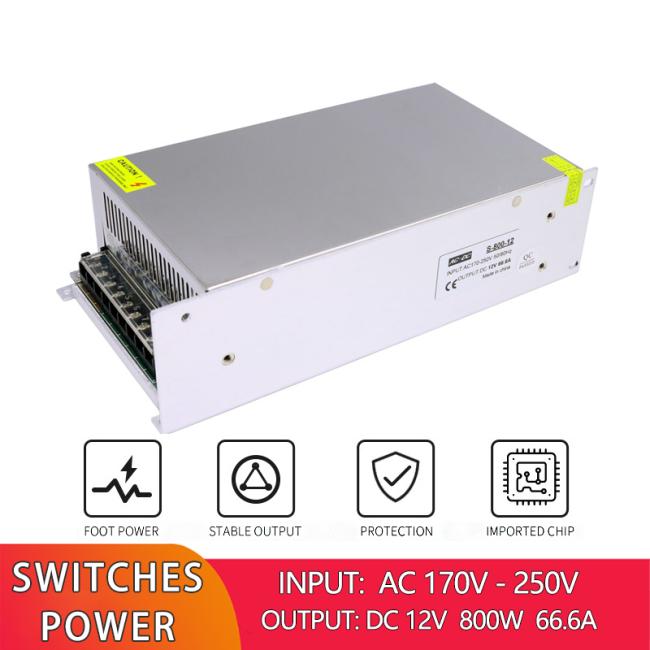

Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-10days
Product Description
800W 12V Switching Power Supply Aluminum Case with Fan 220V AC to DC 12V Converter Transformer LED Driver
AC 220v to DC 12V 66.6A 80W High Power Universal Regulated Switching Power Supply Transformer Adapter LED Driver for LED Light Bar,CCTV Camera System, Radio
About this project:
◆ Input: 170V/250V AC; Output: DC 12V 66.6A max. The output voltage is adjustable by 10%.
◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.
◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.

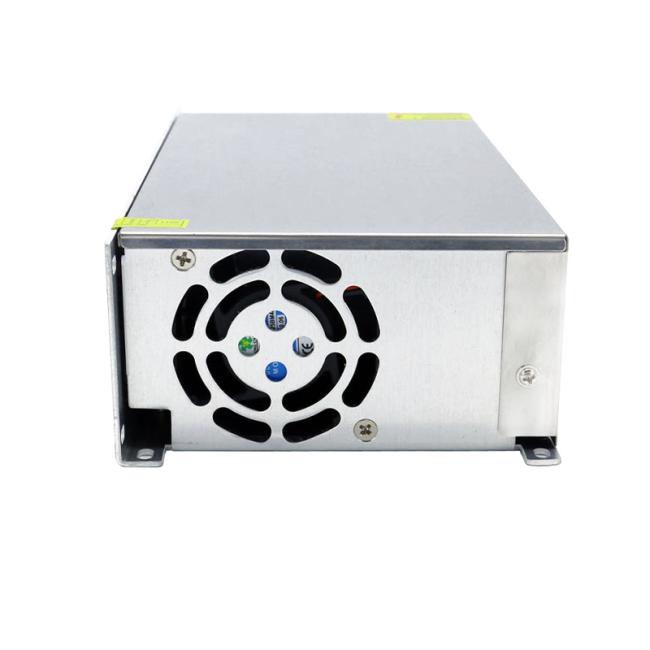

◆ Built-in cooling fan, openings on the metal shell, more efficient heat dissipation.
◆ Suitable for LED strips, 3D printers, ham radio transceivers, CCTV cameras, audio amplifiers, wireless routers, ADSL Cats, HUB, audio/video power supplies. Indoor use only!

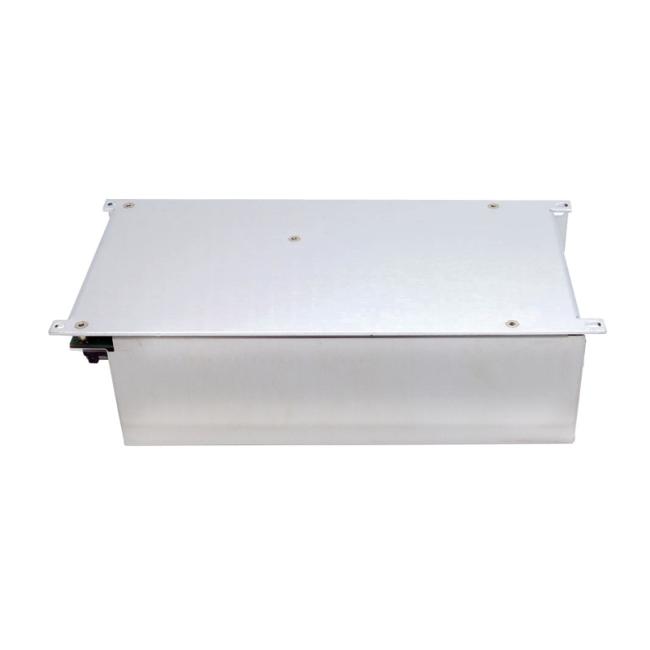

Thickened metal shell
◆ The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant
◆ Built-in cooling fan, openings on the metal shell, more efficient heat dissipation.
Featured Components
Selected high-quality components, sufficient power. Stable output, energy saving and safer
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
Easy to install and easy to use
|
Model
|
S-800-12
|
|
AC input voltage range(V)
|
AC 170~250V
|
|
AC Input current(max)
|
16.8A /AC220V;
|
|
Frequency (Hz)
|
50/60Hz
|
|
Efficiency
|
84% Typ(230VACFull Load)
|
|
Inrush current(A)
|
Cold-start 20A/230V
|
|
Leakage current(mA)
|
<3mA/240VAC
|
|
Output Voltage(V)
|
DC12V
|
|
Voltage Regulation
|
DC12V±0.5
|
|
Output Current(A)
|
66.6A
|
|
Current Range (A)
|
0-66.6A
|
|
Rated Power(W)
|
800W
|
|
Start time,hold-up time(ms)
|
Ton≤1000ms,Td≥20ms @230Vac Full Load
|
|
Rise time(ms)
|
Typ:20ms @230Vac Full Load
|
|
Ripple/Noise(mVp-p)
|
120mVp-p
|
|
working Temperature (°C)
|
-40°C - +65°C(refer derating curve)
|
|
Storage Temperature(°C)
|
-20°C - +60°C
|
|
Humidity
|
20% - 90% RH non condensing
|
|
Over voltage Protection
|
>115%-135% Rated output voltage
|
|
Over load Protection
|
>105%-150% Auto recovery
|
|
Short circuit Protection
|
Latched
|
|
Size L*W*H(cm)
|
242*124*65mm
|
|
Weight
|
1240g
|
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
S-800-12
|
|
Output Power
|
100W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC170V-250V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
66.6A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
84%
|
|
Weight
|
1.24kg
|
|
Size
|
L242*W124*H65mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
|
|
