Aluminum Case Switch Power Supply 100V 240V AC To DC 12 Volt 12W 1A
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-10days
Product Description

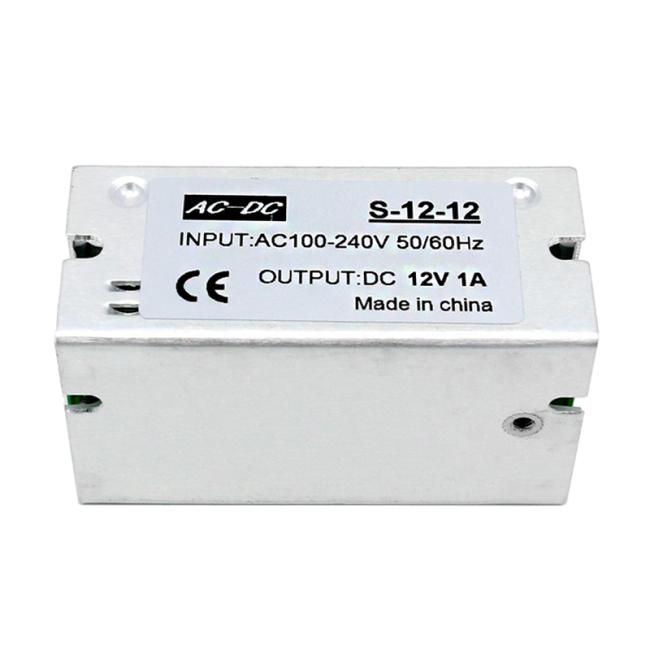

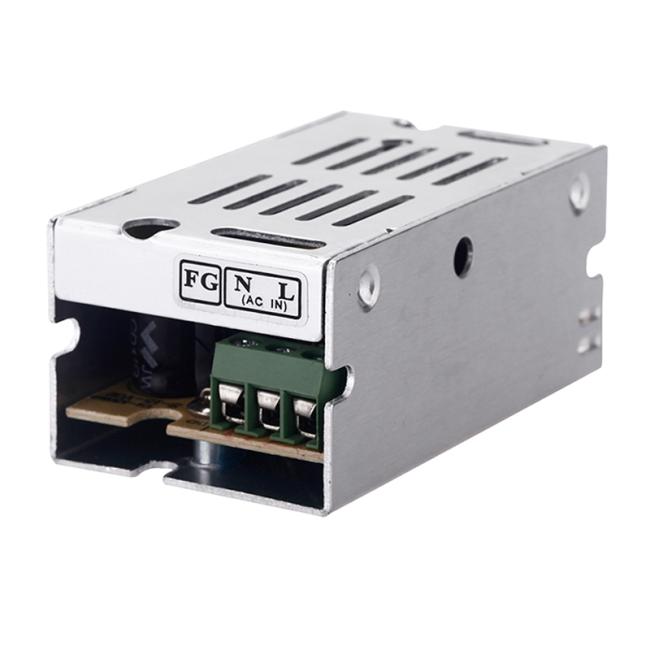

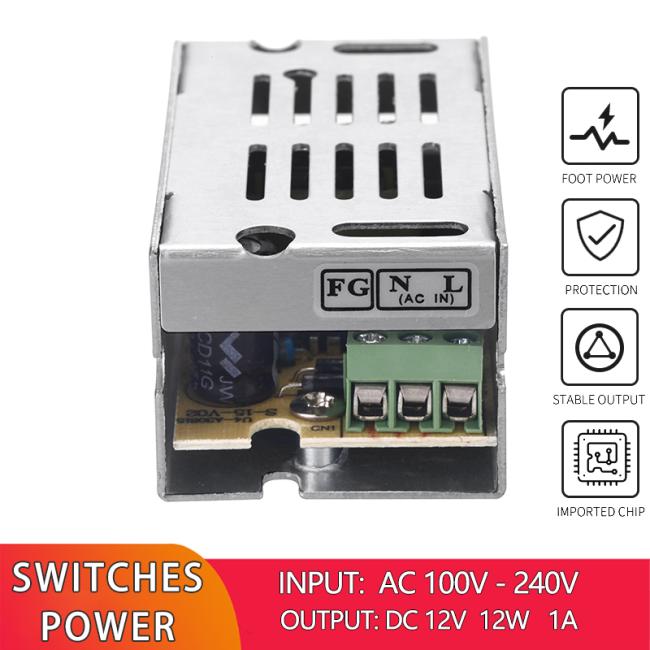

100V 240V AC to DC 12Volt 12W 1A Switching Power Supply Aluminum Case LED Strip Light Driver
Ac to Dc 12V Power Supply Constant Voltage Regulated Power Supply 12V 1A 12W LED Power Supply Driver for Electronic Appliances
1.High efficiency, long life and high reliabili
2.Low dc ripple, high efficiency
3.low operation temperature & long performance life
4.input voltage suitable for all over the world
5.Excellent insulation property, high dielectric strength
6.100% full-load burning test
7.2 years warranty
2.Low dc ripple, high efficiency
3.low operation temperature & long performance life
4.input voltage suitable for all over the world
5.Excellent insulation property, high dielectric strength
6.100% full-load burning test
7.2 years warranty
Thickened metal shell
The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant
Featured Components
Selected high-quality components, sufficient power. Stable output, energy saving and safer
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model
|
S-12-12
|
|
AC input voltage range(V)
|
AC100-240V
|
|
AC Input current(max)
|
0.05A /AC220V;0.1A/AC110V
|
|
Frequency (Hz)
|
50/60Hz
|
|
Efficiency
|
93% Typ(230VACFull Load)
|
|
Inrush current(A)
|
Cold-start 20A/230V
|
|
Leakage current(mA)
|
<3mA/240VAC
|
|
Output Voltage(V)
|
DC 12V
|
|
Voltage Range
|
12V±5%
|
|
Output Current(A)
|
1A
|
|
Current Range (A)
|
0-1A
|
|
Rated Power(W)
|
12W
|
|
Start time,hold-up time(ms)
|
Ton≤1000ms,Td≥20ms @230Vac Full Load
|
|
Rise time(ms)
|
Typ:20ms @230Vac Full Load
|
|
Ripple/Noise(mVp-p)
|
120mVp-p
|
|
working Temperature (°C)
|
-40°C - +65°C(refer derating curve)
|
|
Storage Temperature(°C)
|
-20°C - +60°C
|
|
Humidity
|
20% - 90% RH non condensing
|
|
Over voltage Protection
|
>115%-135% Rated output voltage
|
|
Over load Protection
|
>105%-150% Auto recovery
|
|
Short circuit Protection
|
Latched
|
|

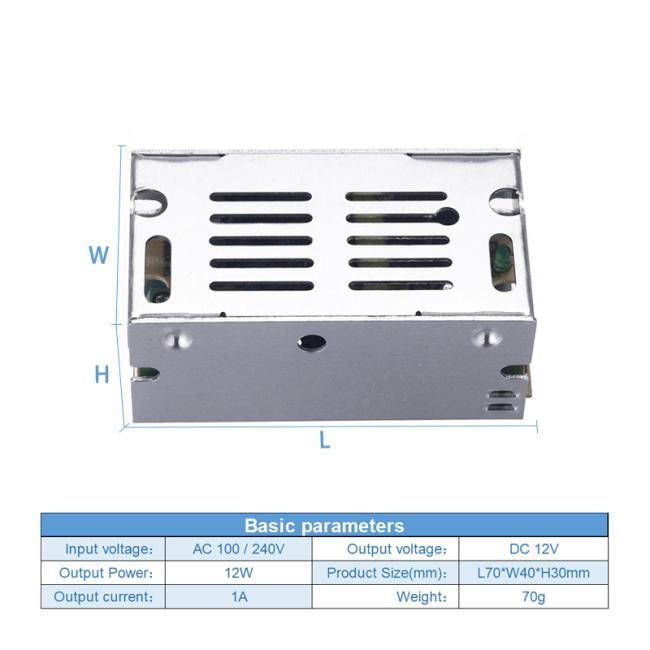

Size L*W*H(mm)
|
70*40*30mm
|
|
Weight
|
70g
|
Easy to install and easy to use
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
S-12-12
|
|
Output Power
|
12W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC100V-240V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
1
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
93%
|
|
Weight
|
70g
|
|
Size
|
L70*W40*H30mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
