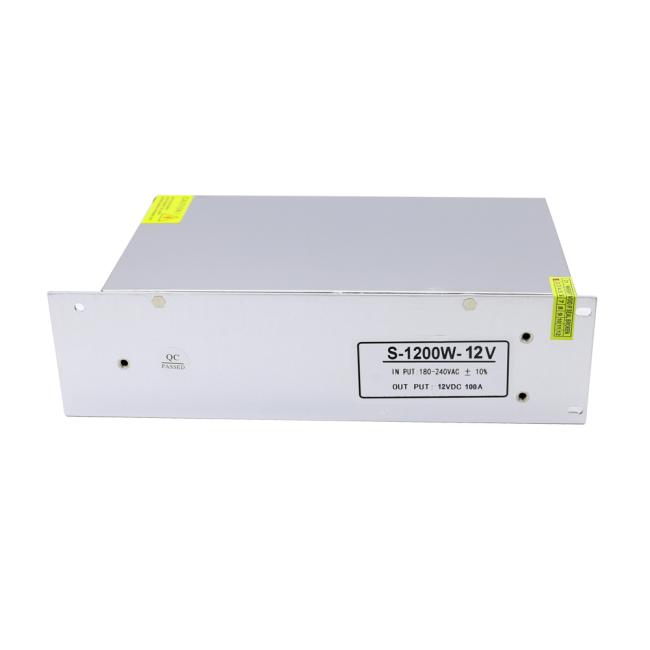

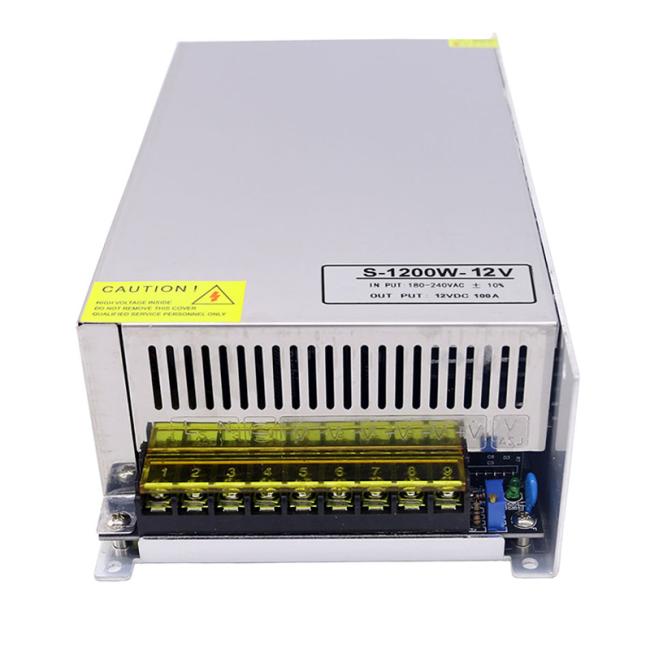

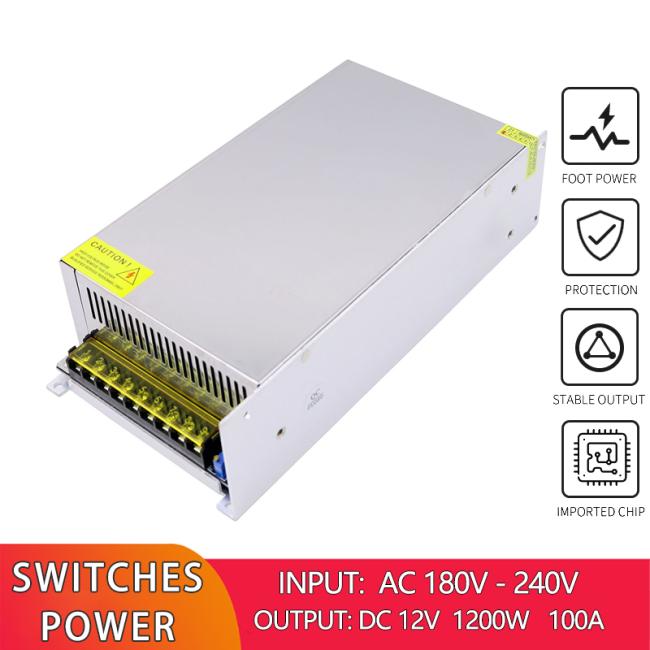

1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-10days
Product Description
1200W 12V DC Switching Power Supply Aluminum Case with Fan AC 220V to DC 12V Volt 100A Converter Transformer LED Driver
DC 12V 100A 1200W Power Supply Adapter Transformer Switch AC 180V/240V to DC 12V 100Amp Switching Converter LED Driver for LED Strip Light CCTV Camera Security System
1: The product has short circuit protection, overload protection and overvoltage protection.
2: High quality, high efficiency, high service life, high reliability; low energy consumption, low output ripple, low operating temperature.

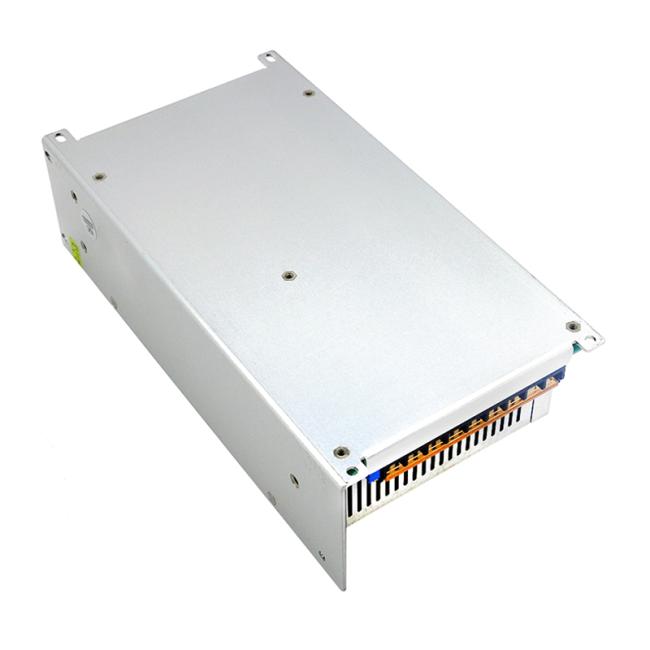

Thickened metal shell
The shell is made of high-quality metal material, which is pressure-resistant, durable and rust-proof. Built-in cooling fan, effectively reduce the temperature
Featured Components
Selected high-quality components, sufficient power. Stable output, energy saving and safer
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model
|
S-1200-12
|
|
Transistor connection
|
half bridge
|
|
The output voltage
|
12V (V)
|
|
Output Voltage Accuracy
|
98 (%)
|
|
Output current
|
0-100A (A)
|
|
Input voltage range
|
AC180-240V
|
|
Installation method
|
screw installation
|
|
Regulation voltage
|
10%
|
|
Types of
|
AC/DC power supply
|
|
Input voltage
|
AC 220V (V)
|
|
work efficiency
|
95 (%)
|
|
Voltage regulation
|
5 (%)
|
|
working frequency
|
50/60Hz (HZ)
|
|
Specification
|
12V-100A-1200W
|
|
Protection class
|
IP20
|
|
rated power
|
1200W
|
|
Cooling Fan Type
|
Free cooling
|
|
Modulation
|
Pulse width modulation (PWM) type
|
|
Output Power
|
1200W (W)
|
|
Output ripple noise
|
120mVp-p
|
|
certified product
|
ce ROHS
|
|

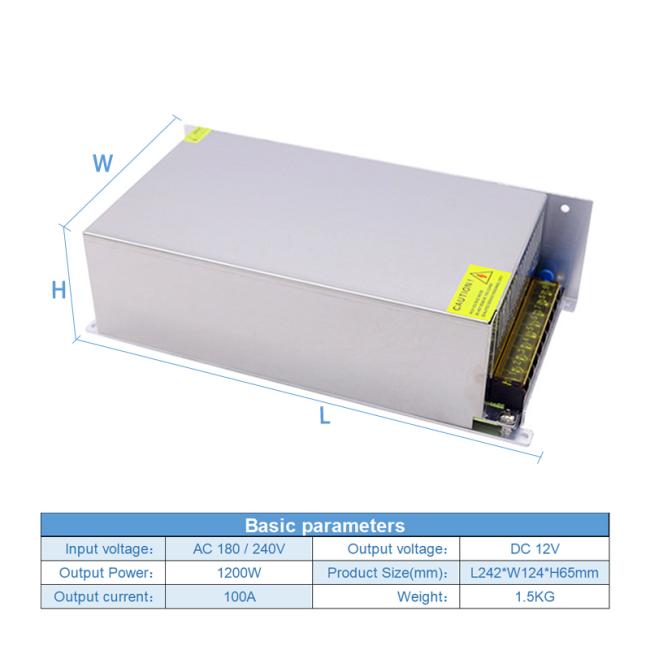

Dimensions L*W*H(mm):
|
L242*W124*H65mm
|
|
series
|
Indoor series
|
|
Working temperature
|
-40℃～65℃
|
|
weight
|
1.5KG
|
|
Reset method
|
self-healing
|
|
Overvoltage protection
|
Yes (>115%-135% rated output voltage)
|
|
Overload protection
|
yes (>105%-150% self-recovery)
|
|
Short circuit protection
|
Yes (lock protection)
|
Easy to install and easy to use
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
S-1200-12
|
|
Output Power
|
1200W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC180V-240V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
100A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
95%
|
|
Weight
|
1.5KG
|
|
Size
|
L242*W124*H65mm
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
