Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-10days
Product Description
100-240V AC to DC 12V 10A 120W Regulated Switching Power Supply Aluminum Case Converter Transformer
![]()
![]()
![]()
![]()
![]()
![]()
Constant voltage DC switching power supply 12V 10A 120W monitoring power supply industrial power supply led light bar power supply
◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
Thickened metal shell
◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
Featured Components
High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model
|
S-100-12
|
|
Regulation voltage
|
10%
|
|
weight
|
0.34KG
|
|
Output current
|
0-10 (A)
|
|
Voltage regulation
|
10 (%)
|
|
Output ripple noise
|
120mVp-p
|
|
rated power
|
120W
|
|
Output Power
|
120W (W)
|
|
The output voltage
|
12V (V)
|
|
Working temperature
|
-40℃～65℃
|
|
working frequency
|
47-63 (HZ)
|
|
work efficiency
|
89 (%)
|
|
Output Voltage Accuracy
|
98 (%)
|
|
Types of
|
AC/DC power supply
|
|
Input voltage
|
AC100-240 (V)
|
|
certified product
|
ce ROHS
|
|
Cooling Fan Type
|
Free cooling
|
|
Transistor connection
|
half bridge
|
|
series
|
Indoor series
|
|
Protection class
|
IP20
|
|

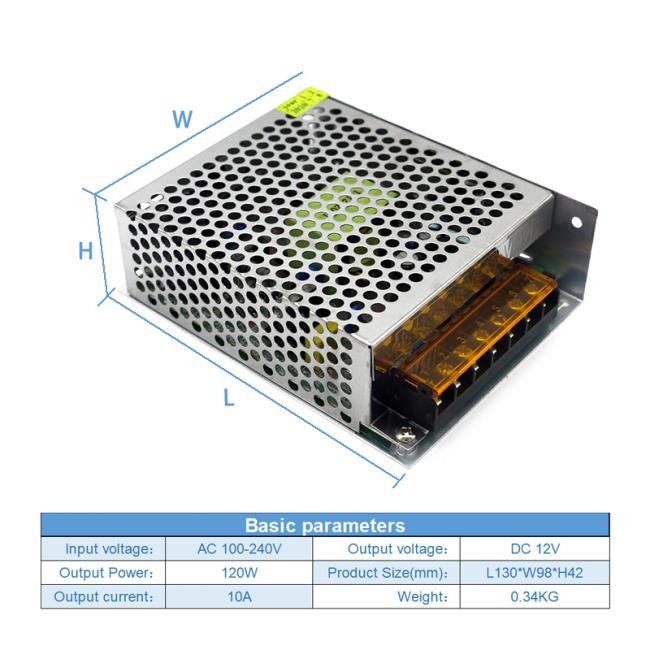

Dimensions
|
L130*W98*H42(mm)
|
|
Scope of application
|
LED, security, industrial control, mechanical equipment
|
|
Modulation
|
Pulse width modulation (PWM) type
|
|
Installation method
|
screw installation
|
|
Reset method
|
self-healing
|
|
Overload protection
|
yes (>105%-150% self-recovery)
|
|
Overvoltage protection
|
Yes (>115%-135% rated output voltage)
|
|
Short circuit protection
|
Yes (lock protection)
|
Easy to install and easy to use
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Megbox
|
|
Model Number
|
S-120-12
|
|
Output Power
|
120W
|
|
Output Type
|
Single
|
|
Input Voltage
|
AC100V-240V
|
|
Output Voltage
|
12V
|
|
Output Frequency
|
50-60Hz
|
|
Output Current
|
10A
|
|
Product Name
|
Chassis Switching Power Supply
|
|
Application
|
LED Lighting
|
|
Warranty
|
2 Years
|
|
Certification
|
CE
|
|
Type
|
AC DC Power Module Converter
|
|
Efficiency
|
89%
|
|
Weight
|
0.34KG
|
|
Size
|
L130*W98*H42
|
|
Protection
|
OCP OVP SCP OPP
|
|
Protections
|
Short Circuit Overtemp Overload Overvolt
|
