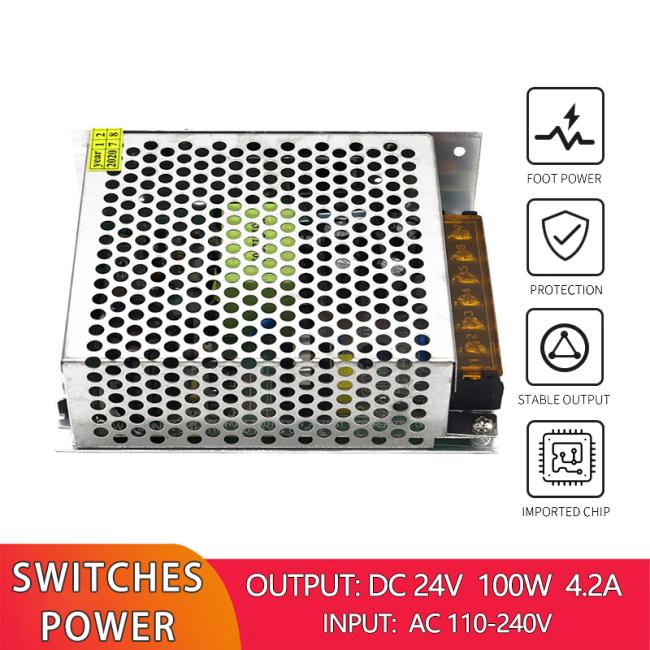

LED Lighting Switching Power Converter AC 100V 240V To DC 24V 100W 4.2A
DC24V 100W 4.2A Switching Power Supply AC to DC 24V Transformer LED Lighting Driver
◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

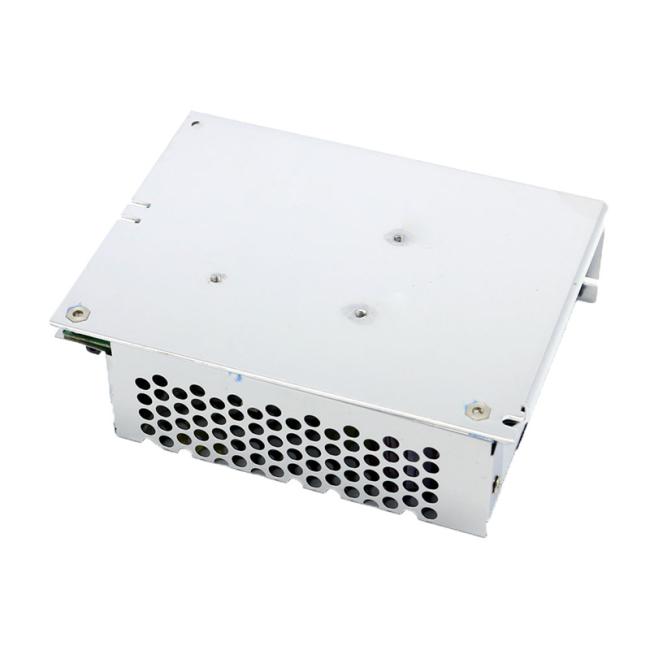

Thickened metal shell

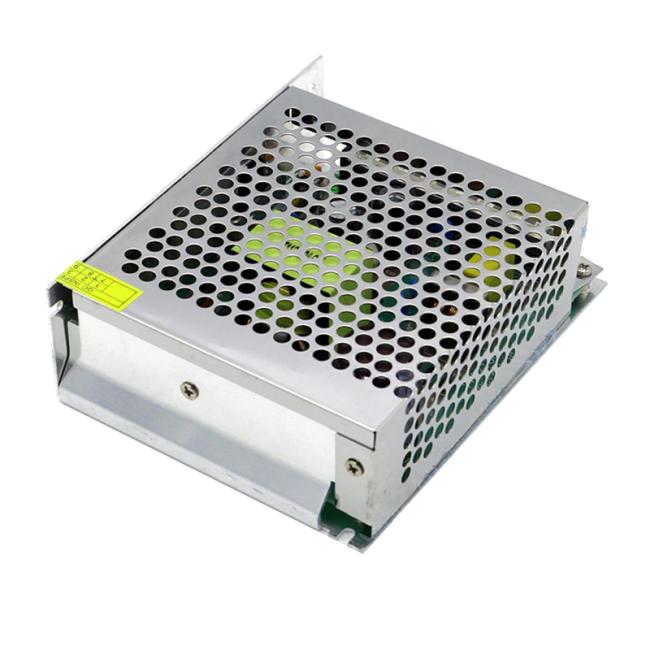

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
Featured Components
High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
|
Model |
S-100-24 |
|
Rated Load |
100W |
|
Output Voltage |
Constant Voltage DC24V (+/-3%) |
|
Output Current |
0-4.2A Max |
|
Input Voltage |
100-240AC 50/60Hz |
|
Adjustable Range |
+/-3% |
|

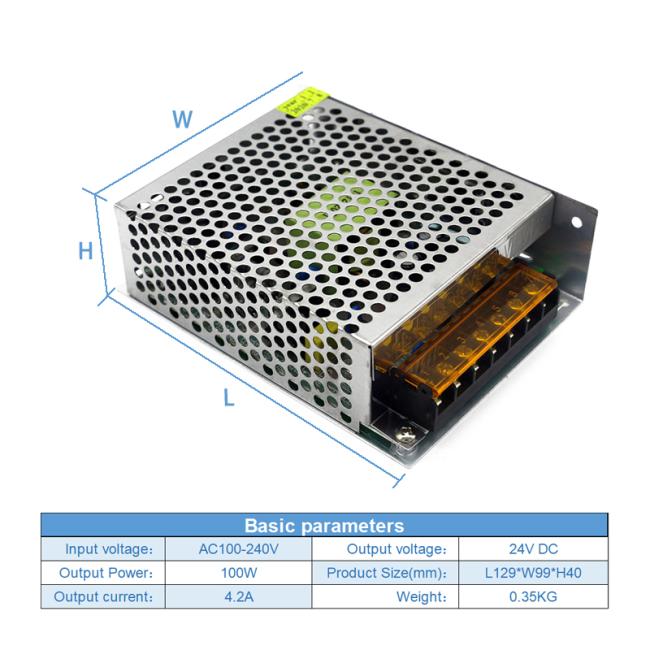

Dimension |
L129*W99*H40mm |
|
G.Weight |
0.35KG |
|
Working Temperature |
-30°C~50°C |
|
Temperature Rise |
≤30°C |
|
Storage temperature |
-30~80°C |
|
IP Rating |
IP20 |
|
Cooling Mode |
Air Cooling |
|
Warranty |
2 Years |
|
Certificate |
CE RoHS |
|
Protection |
Over-Voltage,Over-Current,Over-load,Short-Circuit Protection |
|
Function |
Indoor Power Supply |
|
Packing |
Standard export packing/ according requirement. |
|
Application |
LED strip light,LED down light,led panel light, CNC,CCTV,Motor,Machinery etc. |

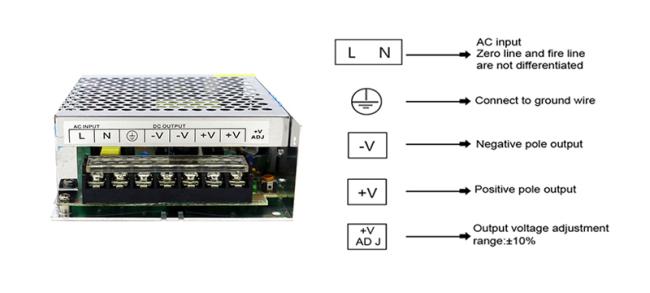

Easy to install and easy to use
Product Description
Specification
|
item |
value |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
Megbox |
|
Model Number |
S-100-24 |
|
Output Power |
100W |
|
Output Type |
Single |
|
Input Voltage |
AC100V-240V |
|
Output Voltage |
24V |
|
Output Frequency |
50-60Hz |
|
Output Current |
4.2A |
|
Product Name |
Chassis Switching Power Supply |
|
Application |
LED Lighting |
|
Warranty |
2 Years |
|
Certification |
CE |
|
Type |
AC DC Power Module Converter |
|
Efficiency |
80% |
|
Weight |
0.35kg |
|
Size |
L129*W99*H40(mm) |
|
Protection |
OCP OVP SCP OPP |
|
Material |
Metal Shell |
