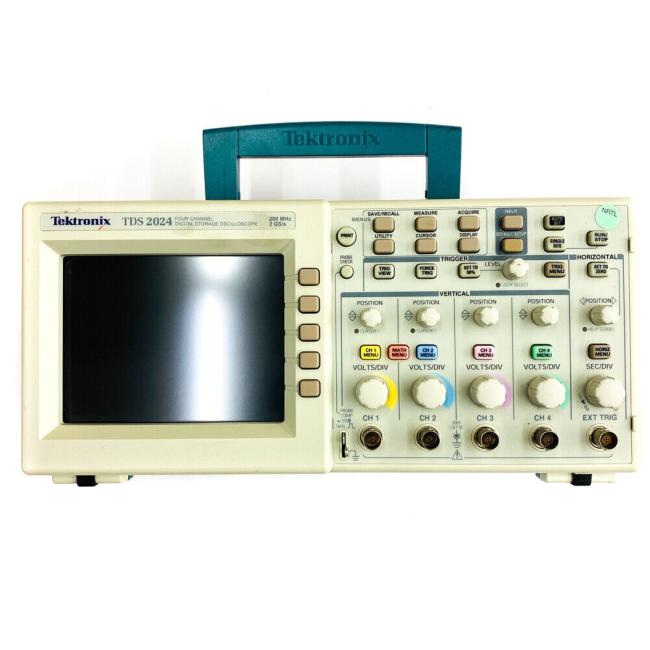

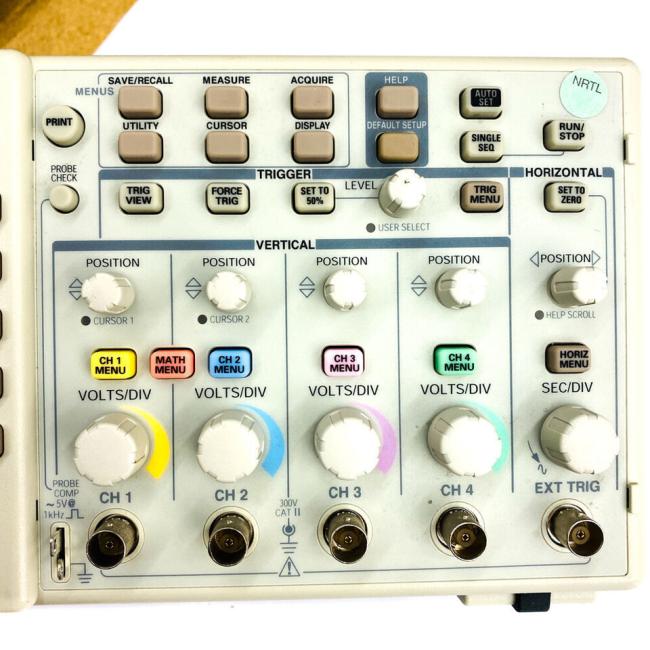

The Tek TDS2024 oscilloscope provides accurate real-time acquisition up to its full bandwidth, advanced triggers to isolate signals of interest, and 11 standard automatic measurements. The Tek TDS2024 Fast Fourier Transform (FFT) math function allows the user to analyze, characterize and troubleshoot circuits by viewing frequency and signal strength.

• Display (1/4 VGA LCD): Color
• Bandwidth: 200 MHz
• Channels: 4
• External Trigger Input: Yes
• Sample Rate on each channel: 2.0 GS/s
• Record Length: 2.5 K points
• Vertical Resolution: 8-bits
• Vertical Sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
• DC Vertical Accuracy: ±3%
• Vertical Zoom: Vertically expand or compress a live or stopped waveform
• Max Input Voltage: 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz and above
• Position Range: 2 mV to 200 mV/div ±2 V; >200 mV to 5 V/div ±50 V
• BW Limit: 20 MHz
• Input Coupling: AC, DC, GND
• Input Impedance: 1 MO in parallel with 20 pF
• Time Base Range: 2.5 ns to 50 sec/div
• Time Base Accuracy: 50 ppm
• Horizontal Zoom: Horizontally expand or compress a live or stopped waveform

Features of TDS2024 Digital Phosphor Oscilloscope

• 200 MHz Bandwidth Models
• 4-channel Model
• Up to 2GS/s Sample Rate on All Channels
• 2.5k point Record Length on All Channels
• Advanced Triggers including Pulse Width Trigger and Line-selectable Video
