Keysight N1000A Mixed Signal Oscilloscope with 110 GHz Bandwidth 16 Channels and 224 Gb/s Data Rate

The configuration drawings indicate mandatory features in bold with dark red background and optional features in italic with light gray background. Switches indicate available choices:

• The product must always have option 1
• The product must have either option 2, 3, or 4 (select exactly one) - Option 2 is default/recommended
• The product may or may not have option 5 - Option 5 is recommended/selected by default
• The product may or may not have option 6 - Option 6 is not selected by default
• The product may or may not have option 7 or 8 (if desired, select exactly one) - No default or recommendation
• If you want option 9, you must first choose option 8

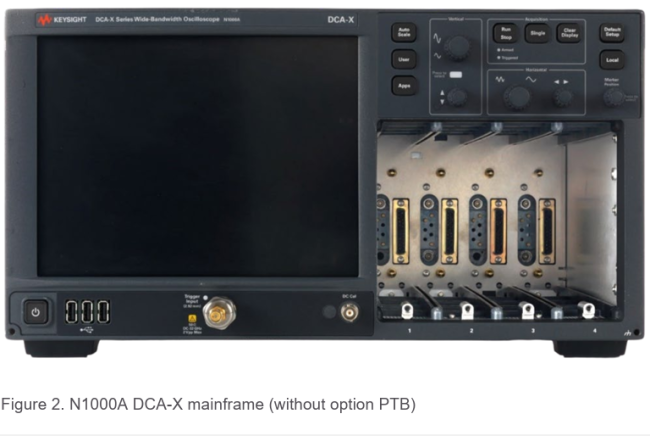

The N1000A DCA-X Wide-Bandwidth Oscilloscope is a modular platform that provides accurate and precise measurements on high-speed digital designs from 50 Mb/s to more than 80 Gb/s. Users configure the N1000A DCA-X mainframe by selecting from a variety of plug-in modules that perform precision optical, electrical, and TDR/TDT measurements.

• Flexible, modular platform
• Precision measurements on high-speed signals
• Powerful analysis features
