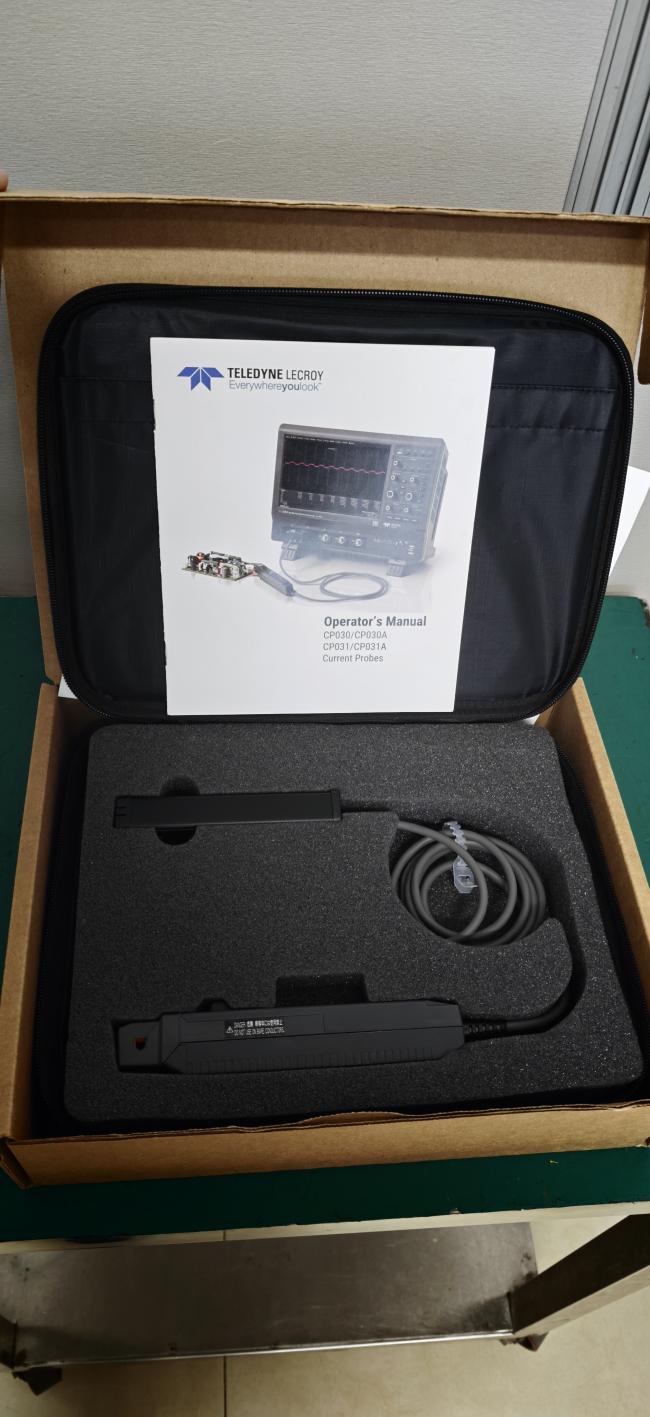

The Teledyne LeCroy CP030A Current Probe is a high-sensitivity instrument designed for precise current measurements in various industrial and electronic applications.

Teledyne LeCroy current probes are available in various models suitable for diverse applications. The complete product line includes models with bandwidths up to 100 MHz, peak currents up to 700 A, and sensitivities down to 1 mA/div. These probes are commonly used in switching power supply design and testing, motor drives, electric vehicles, and uninterruptible power supplies.

The CP030A and CP031A models provide exceptional sensitivity of 1mA/div, enabling precise low-current measurements on Teledyne LeCroy oscilloscopes. When paired with HDO high-definition oscilloscopes featuring HD4096 technology, users achieve highly accurate low-current waveforms with unmatched 12-bit resolution for enhanced debugging and analysis capabilities.

All Teledyne LeCroy current probes are powered through the ProBus connection, eliminating the need for additional hardware. The ProBus interface not only supplies power but also enables communication between the current probe and oscilloscope, resulting in current waveforms automatically displayed in Amps and calculated power traces correctly scaled in Watts. This integration allows Degauss and Autozero functions to be performed directly from the oscilloscope's user interface.

• CP030B  - 30A, 50MHz Current Probe
• CP030B-3M - 30 A, 10 MHz Current Probe - AC/DC, 30 A rms, 50 A Peak Pulse, 3 meter cable
• CP031- 30A, 100MHz Current Probe
• CP031A - 30A, 100MHz High Sensitivity Current Probe
• CP150B - 150 A, 10 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse
• CP150B-6M - 150 A, 5 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, 6 meter cable
• CP500 - 500 A, 2 MHz Current Probe - AC/DC, 500 A rms, 700 A Peak Pulse
• CP1000  - 1000 A, 1.5 MHz Current Probe - AC/DC, 1000 A rms, 1400 A Peak Pulse, 6 meter cable
• DCS025 - Deskew Calibration Source for Teledyne LeCroy current probes
