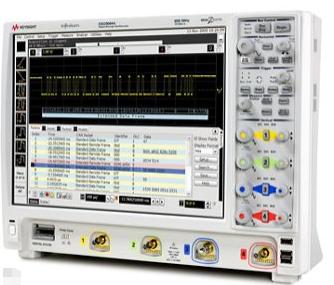

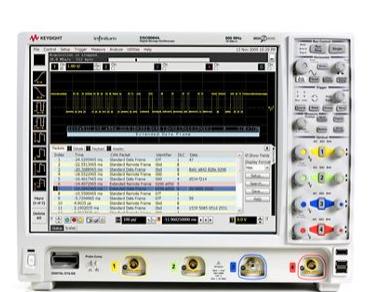

DSO9064A Oscilloscope: 600 MHz, 4 Analog Channels

Overview and features of DSO9064A Oscilloscope: 600 MHz, 4 Analog Channels

• 600 MHz (upgradable)
• 4 analog channels
• Get 3 instruments in 1: scope, logic analyzer, and protocol analyzer
• Capture more data with 20 Mpts per channel memory, upgradable to 1 Gpts
• See more signal detail with 10 GSa/s sample rate and InfiniiScan advanced triggering
• Expand your measurement capabilities with the widest range of compliance, protocol & analysis applications: serial protocol, FPGA dynamic probe, jitter analysis including EZJIT, MATLAB & more

Hightlights of DSO9064A Oscilloscope: 600 MHz, 4 Analog Channels

It’s simple: drag an icon from the measurement bar and drop it on the cycle you want to measure. You can make up to ten measurements on your waveforms. All of the measurements
appear at the bottom of the display with statistics and are color-coded to the channel you are measuring.

MSO models add 16 high-speed timing channels with standard 128 Mpts digital memory, allowing you to retain fast 2 GSa/s sample rates over long periods of time.

Trigger on and display individual signals or buses. With precise time-correlation between analog and digital signals, confidently trigger across any combination of analog and digital signals simultaneously

What's included:

• Four N2873A 500 MHz passive probes
• Probe accessory pouch (mounts on rear of instrument)
• Keysight I/O libraries suite
• Localized power cord
• Front panel cover
• Keyboard, mouse and stylus
• User guide and programmer's guide ship on oscilloscope hard drive
• Service guide available on Keysight.com

  Options	Description
  D9010LSSP	I2C, SPI, Quad SPI, eSPI, Quad eSPI, RS232, UART, JTAG, I2S, SVID, Manchester
  D9010EMBP	PCIe Gen 1/2, USB 1.x and 2.0, 10/100 Mb/s Ethernet, USB-PD
  D9010AUTP	CAN, LIN, CAN-FD, FlexRay, SENT
  D9020AUTP	100BASE-T1, formerly BroadR-Reach
  D9010USBP	USB 1.x, 2.0, 3.0, 3.1, 3.22
  D9010MPLP	RFFE, I3C, SPMI
  D9010MCDP	C-PHY2 and D-PHY
  D9010MPMP	DigRF, LLI, CSI-3, UniPro, UFS, SSIC
  D9010MILP	ARINC 429, MIL-STD 1553, SpaceWire
  D9010PCIP	PCIe Gen 1/2/3/42, SATA, SAS
  D9010BDLP1	Everything above except: SENT, 100BASE-T1, SpaceWire and Quad SPI3
