Hua Power 60kWh LiFePO4 Rack-Mounted Energy Storage System 500kW 400V

Name: Hua Power 60kWh LiFePO4 Rack-Mounted Energy Storage System 500kW 400V
Brand: Zhejiang Hua Power Co.,Ltd

Price Negotiable

Delivery Time: 25~30 Working days

Brand: Hua Power

Product Description

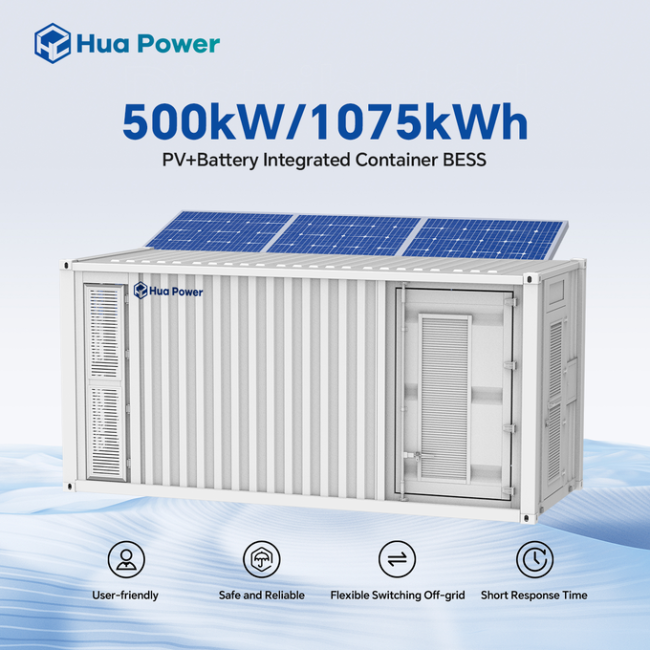

HC1075P is an all - in - one hybrid photovoltaic - energy storage system, integrating solar power generation, energy storage, and power conversion functions. Engineered to meet the demanding power requirements of a wide range of applications, it offers a reliable and sustainable energy solution, especially for those with a high demand for power and a need for energy autonomy.

Specifications:

Model No.	HC1075P
Battery
Battery type	LiFePO4
Battery Cell	280Ah
Battery Pack Configuration	1P16S*5
Battery Pack Quantity	15 Packs/Cluster*5
Rated Current	140A*5
Voltage Range	648~864V
Rated Capacity	1075.2KWh
System
Charge/Discharge Rate	0.5 CP
Depth Of Discharge	90% DOD
Attitude	2000m(> 2000m Derating)
Display	LCD
Attitude	2000m(> 2000m Derating)
Cooling Method	Fan
Anti-corrosion Rating	C4
Protection Level	IP54
Humidity	5%~95%RH(Non-Condensation)
Temperature	-20℃～50℃(De-Rating Over 45℃)
Maximum Efficiency	≥85%
Dimension	6058×2438×2896mm
Weight	15T

Product Features

High - Capacity Energy Storage

Boasting a rated capacity of 1075.2KWh, the HC1075P can store a significant amount of energy. This large storage capacity allows businesses to accumulate power during periods of high solar generation, such as sunny days, and utilize it during peak demand hours or when solar production is low, like at night or on cloudy days. It ensures a continuous and stable power supply, reducing reliance on the grid and potential power interruptions.

Efficient Power Generation and Conversion

The system features a maximum usable photovoltaic input power of 400kW, enabling it to capture ample solar energy. The 8 MPPTs (Maximum Power Point Tracking) with a voltage range of 250V - 800V ensure that the photovoltaic panels operate at their maximum efficiency under various environmental conditions. Additionally, the 400kW dcdc conversion capacity efficiently converts the direct current from the solar panels and the battery storage system, optimizing power flow for different applications.

Grid - Friendly Operation

In on - grid mode, the HC1075P has a rated power of 500kW and a maximum current of 794A. It is designed to work harmoniously with the grid, feeding excess solar - generated power back when available. With a low total harmonic distortion of ≤3% (at rated power), it provides high - quality power that meets strict grid standards. Its compatibility with both 50Hz and 60Hz frequencies makes it suitable for deployment in different regions globally.

Robust Design and Safety

Weighing 15T and with dimensions of 6058×2438×2896mm, the HC1075P has a sturdy structure built to withstand various environmental conditions. It comes with a 3P4L + PE wiring method for proper grounding and phase separation, reducing the risk of electrical faults. Although specific battery details aren't fully disclosed, ihuapower ensures the use of high - quality batteries with appropriate protection mechanisms, including safeguards against overcharging, over - discharging, and short - circuits.

User - Friendly Monitoring and Control

The control unit of the HC1075P features an intuitive interface that displays real - time data such as power generation, battery state of charge, and grid connection status. This allows business operators to easily monitor and manage their energy usage, make informed decisions, and take proactive measures to optimize the system's performance.

Application Scenarios

Industrial Plants: Powers heavy machinery, cuts production downtime, and can sell back energy.
Commercial Buildings: Reduces grid reliance in malls, offices, and hotels, and provides emergency power.
Data Centers: Ensures continuous server operation and cuts carbon footprint.
Renewable Projects: Integrates with wind farms to stabilize power.
Remote Areas: Enables self - sufficient energy supply for off - grid businesses.

Service Support

Install & Commission: Expert engineers assess and install, followed by thorough testing.
Custom Training: Tailored sessions cover operation, maintenance, and safety.
24/7 Support: Dedicated team offers remote and on - site help promptly.
Regular Maintenance: Scheduled checks, repairs, and component replacements.
Performance Opt: Monitors system and provides optimization advice.
