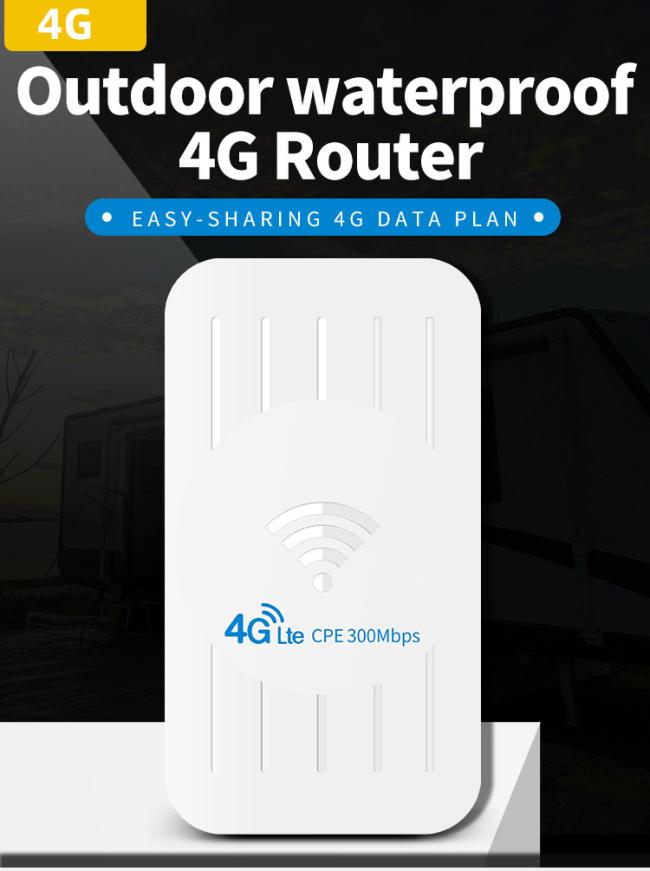

MT7628NN Chipset 4G Outdoor Router H5B 4g Router With Sim Card
Outdoor Waterproof 4g Wifi Router 300Mbps H5B 4g Router With Sim Card Slot
Product Description

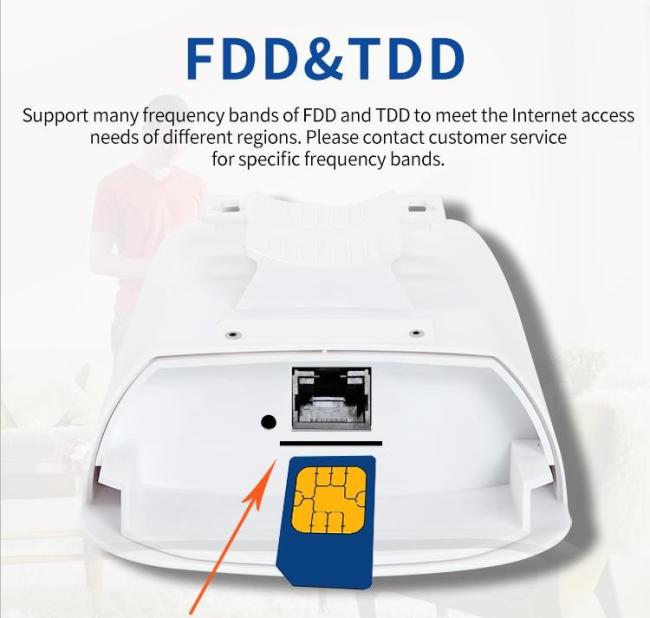

Frequency
- Supports FDD Band: B1/B3/B5/B8; B1(2100MHz), B3(1800MHz)/ B5(850MHZ)/B8(900MHZ)
- Supports TDD Band: B38/B39 /B40 /B41
- Supports 3G WCDMA: B1 2100MHZ
- Mainly applicable to Europe,Asia, Southeast Asia Australia Africa Middle East ans some South America many countries.
Product Feature
- Support 802.3/802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
- Support 3G/4G
- Support watchdog feature
- Many kinds of way to protect your data transmission;
Specification
| DEVICE | H5B | |||||
| Hardware Platform | Type | 4G-WIFI-XXXX | ||||
| MTK Chipset | MT7628NN | |||||
| Memory | 512Mb DDR2 SDRAM | |||||
| 4G Bands | FDD:B1/3/5/7/8/20 TDD:38/40/41 WCDMA:B1/5/8 TDSCDMA:B34/39 CDMA&EVDO BC0 GSM:850/900/1800/1900 |
|||||
| Wi-Fi | IEEE 802.11b/g/n | |||||
| Encryption | WPA-PSK/WPA2-PSK Mixed mode | |||||
| Wi-Fi Transfer rate | up to 300Mbps | |||||
| Software Platform | System | OpenWRT System | ||||
| interface | LED | WIFI,4G,Power | ||||
| RJ-45 | WAN/LAN 1 LAN Port | |||||

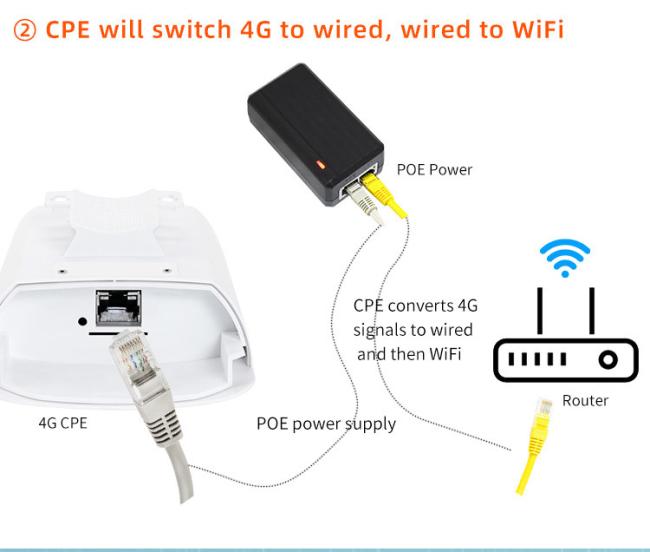

| Power | POE or (24V/1A) | |||||
| SIM | MICRO SIM*1 | |||||
| KEY | none | |||||

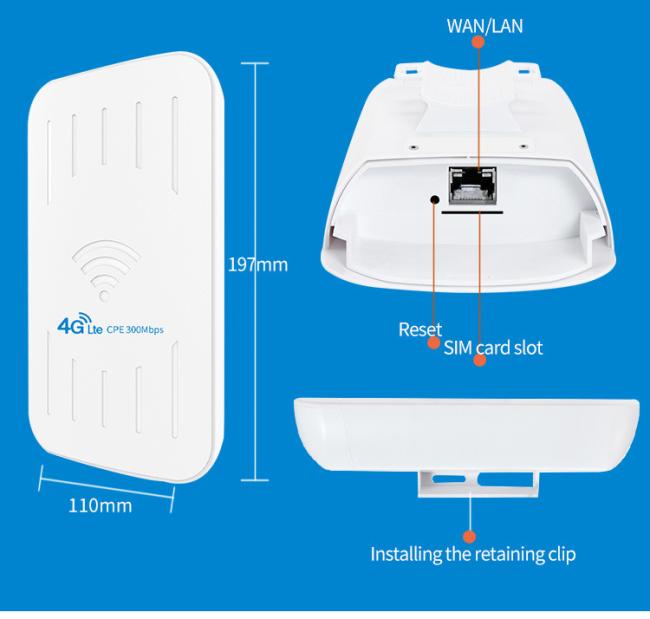

| Appearance | Dimension (L × W × H)mm | 197*110*59 | ||||
| Weight | 300g | |||||
| Internet | Wi-Fi | Wi-Fi AP,Support up to 32 users | ||||
| WIFI SSID | 4G-WIFI-XXXX | |||||
| WIFI Default password | 12345678 | |||||
| WEB | Explorer | Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari 以上版本 | ||||
| Gateway | http://192.168.1.1 | |||||
| Login | User name:admin Password:admin | |||||
| System | 4G Status:Connection Status;DHCP Sever;System status | |||||
| Basic Setting | 4G Setting(Network,Country,Operator),WAN Mode(DHCP,PPPoE,Static IP) | |||||
| Advanced Setting | IP Pass through,Internet,Static Route,Port forwarding,DMZ,MAC Address filter,Donaim filter,Firmware upgrade,Reset,Manage password,Language,Power setting,repower,reset | |||||
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
