450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge
450Mbps Wireless Network Bridge 24V POE Long Range 3000m Wifi Bridge 5.8G
Product Description
CPE450 is a long-distance 5.8G wireless transmission equipment. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point-to-multipoint interconnection. The working data link layer realizes the interconnection and transmission of local area networks. The distance can be up to 3km.
Key Features
- Long-distance 5.8G wireless transmission equipment

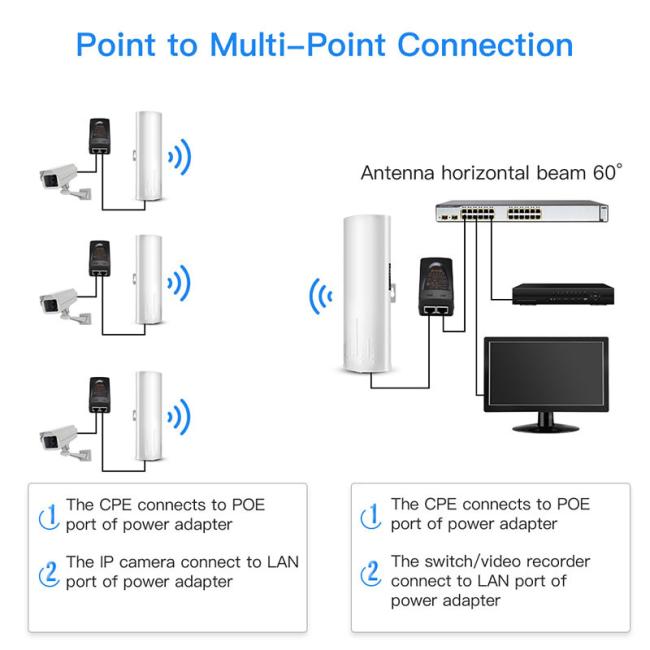

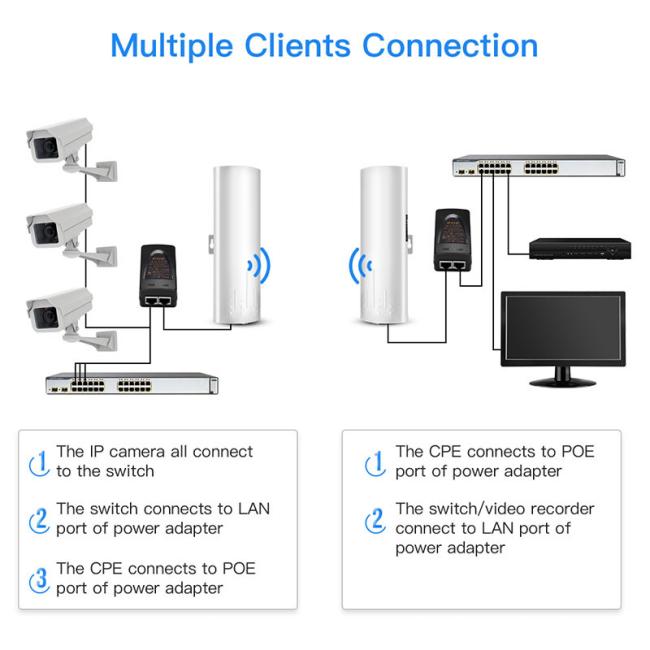

- Support point-to-point, point-to-multipoint mode
- Transmission distance up to 3km(Barrier-Free)
- WDS networking mode, video network dual compatible.
- Dialing to set the transmitter and receiver, and also support the PC to modify the IP settings.
- Dynamic MIMO power saving mode (DMPS) and automatic power-saving transmission (APSD)
Package Include:
- 1 * CPE450 Bridge
- 1 * POE Power Adapter (24V)
- 1 * Metal Hoop
- 1 * User Manual
Specification
| Specification | |
| Master control | AR9344 |
| DRAM | DDR2 64MByte |
| FLASH | 8MByte |
| Wired Interface | 10/100Mbps LAN*2 |
| Transfer method | Direct Sequence Spread Spectrum (DSSS) |
| Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
| Network Standard | IEEE802.11n,IEEE802.11a ,IEEE802.3u |
| Supporting agreement | CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 |
| Frequency Range | 4900~6100MHz |
| Power consumption | ≤3W |
| Power scheme | POE 24V 1A |

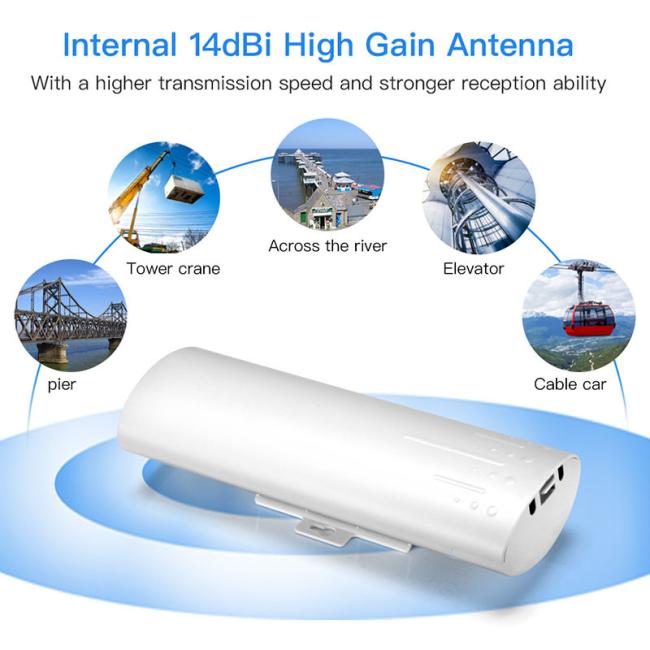

| Antenna gain | 14DBi |
| Management settings | WEP management,Telnet,Serial |
| Encryption | WEP encryption 64/128bits, WPA, WPA2, 802.1x |
| Operating temperature | -30℃~65℃ |
Products Pictures
