1200Mbps 5g Modem Router Chip MT7621 Outdoor IP66 Waterproof 5g Wifi Router

Product Description

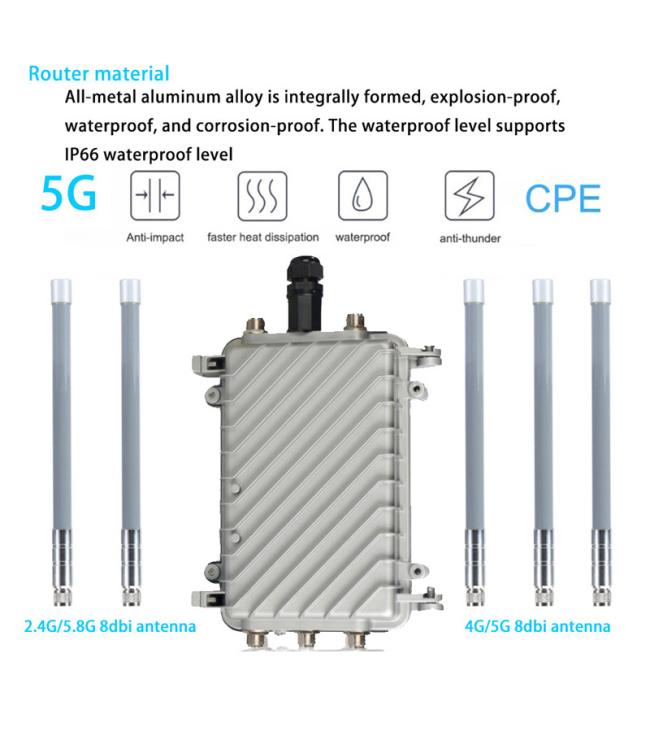

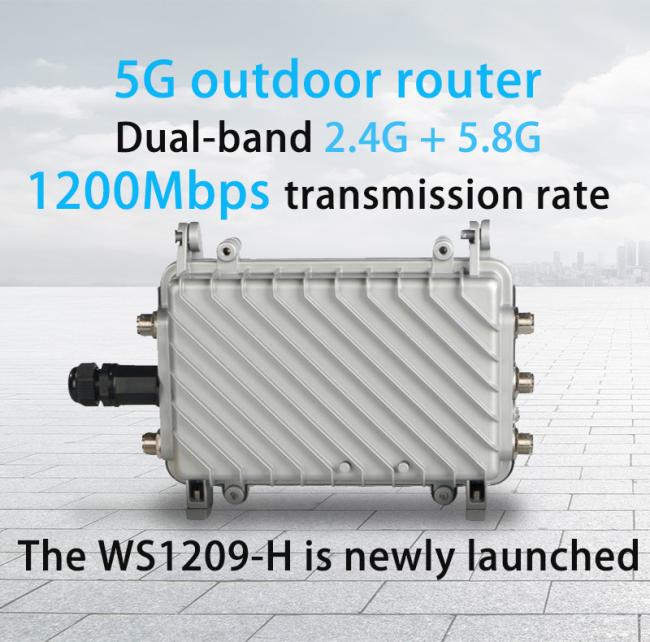

  The WS1209-H outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.

WiFi Datasheet

WiFi 1200Mbps(802.11AC)

• Working Radio: #1: 300Mbps @ 2.4GHz; #2: 900Mbps @ 5.1-5.8GHz
• Coding Technology:1024-QAM / OFDMA
• Peak Connections:>500+ Clients
• Wi-Fi Standard Conformance:WiFi 802.11ac / 802.11n backward

Data Switching

• Mobile 4G/5G Connection (Support APN)
• Giga Ethernet Connection
• 2.4G/5Ghz WiFi
• Advanced Firewall
• MAC Filter
• WiFi Sercurity
• VPN Passthrough and VPN Client (L2TP PPTP)
• IPV4/IPV6
• WEB / APP Mangement
• Firmware upgrade

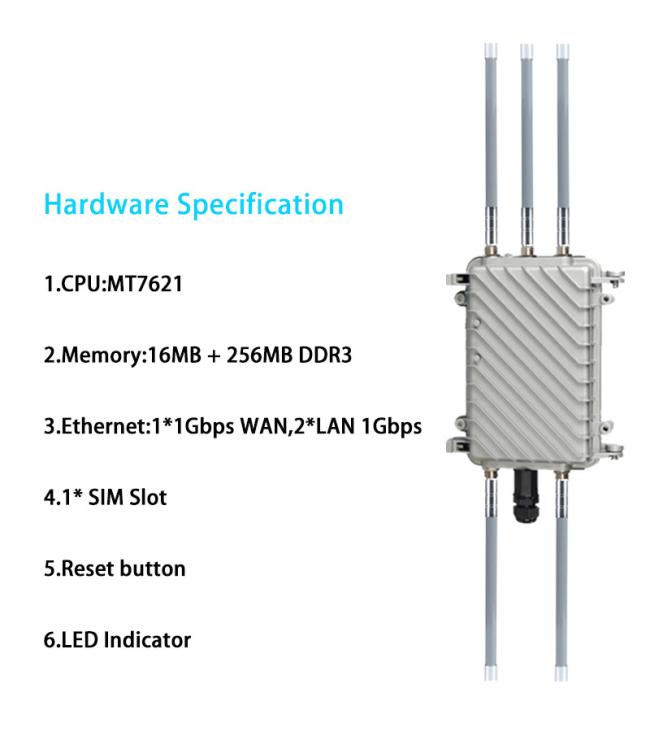

Hardware Specification

• CPU:MT7621
• Memory:16MB + 256MB DDR3
• Ethernet:1*1Gbps WAN,2*LAN 1Gbps
• 1* SIM Slot
• Reset button
• LED Indicator : 4G5G Status, Power Status, 2.4G LED, 5.8G LED
• Power Consumption:<24W

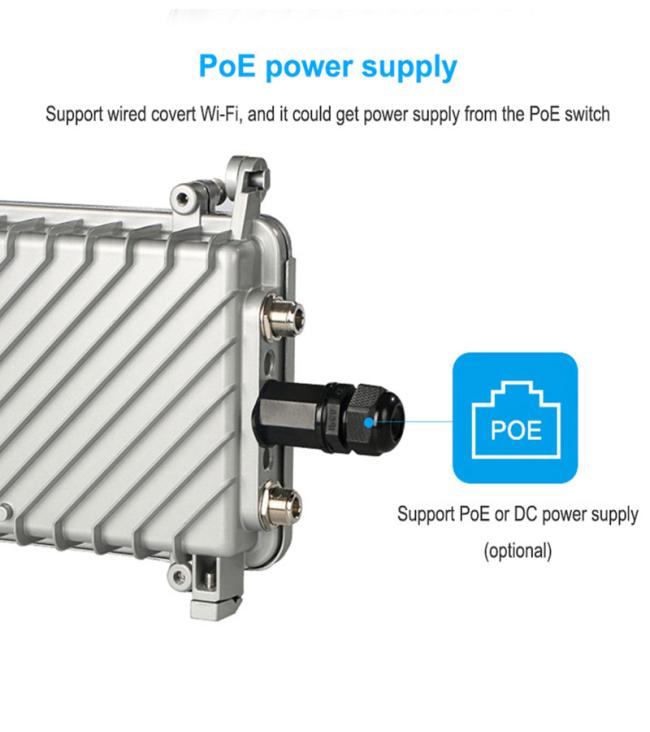

• DC Power Supply: 15V POE or 48V POE
• Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
• Humidity:5%~95%

Specification

Details Images

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
