MSS SP-114 90DEG CL150 304 Stainless Steel 90 Degree Elbow Cast Thread
MSS SP-114 90DEG CL150 304 Stainless Steel 90 Degree Elbow Cast Thread
Product Information
A Stainless Steel 90 Degree Elbow Cast Thread is a specific type of pipe fitting used in plumbing and piping systems to change the direction of flow by 90 degrees.· Made from stainless steel, this elbow is designed to provide strength, durability, and corrosion resistance, making it suitable for a wide range of applications, including those requiring sanitary conditions.
| Product Name | MSS SP-114 90DEG CL150 304 Stainless Steel 90 Degree Elbow Cast Thread |
| Thread Types | ASME B1.20.1(NPT), BS 21 (NSPT), DIN2999/259 |
| Dimensions | ISO 49-1994(E), MSS SP-114, ANSI B16.3 |
| Size Range | 1/8” to 4” |
| Pressure Class | Class 150 |
| Materials | ASTM A351 (CF8, CF8M), JIS(SCS13, SCS14), AISI (304/L,316/L), ASTM A182/A276 (304/L, 316/L), |
Applications:
· Industrial Use: Commonly used in industrial piping systems for conveying fluids or gases.
· Commercial Applications: Found in commercial plumbing systems, HVAC systems, and other applications requiring precise flow direction changes.
· Sanitary Environments: Suitable for applications where cleanliness and corrosion resistance are crucial, such as in food processing plants or pharmaceutical facilities.

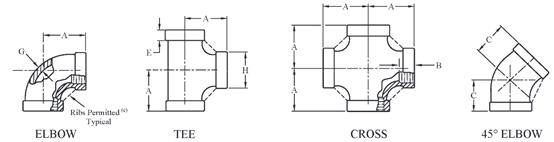

Dimensions of Class 150 Cast Threaded 90 Degree Elbows, Tees, Crosses and 45 Degree Elbows
| NPS | Center-to-End, Elbows, Tees, Crosses | Center-to-End, 45o Elbows | Length of Thread(b) (min.) | Width of Band (min.) |
Metal Thickness(a)
|
Outside Dia. of Band (min.) |
| A | C | B | E | G | H | |
| ⅛ | 0.81 | 0.69 | 0.25 | 0.20 | 0.09 | 0.75 |
| ¼ | 0.81 | 0.69 | 0.32 | 0.20 | 0.09 | 0.84 |
| ⅜ | 0.93 | 0.81 | 0.36 | 0.21 | 0.10 | 1.01 |
| ½ | 1.12 | 0.87 | 0.43 | 0.25 | 0.10 | 1.20 |
| ¾ | 1.31 | 1.00 | 0.50 | 0.27 | 0.12 | 1.46 |
| 1 | 1.50 | 1.12 | 0.58 | 0.30 | 0.13 | 1.77 |
| 1¼ | 1.75 | 1.31 | 0.67 | 0.34 | 0.14 | 2.15 |
| 1½ | 1.90 | 1.43 | 0.70 | 0.37 | 0.15 | 2.43 |
| 2 | 2.25 | 1.68 | 0.75 | 0.42 | 0.17 | 2.96 |
| 2½ | 2.68 | 1.93 | 0.92 | 0.48 | 0.21 | 3.31 |
| 3 | 3.06 | 2.18 | 0.98 | 0.55 | 0.23 | 3.00 |
| 4 | 3.81 | 2.62 | 1.08 | 0.66 | 0.26 | 5.06 |
Benefits of Stainless Steel Casting Screw Fittings
- Stainless steel casting combines good corrosion resistance and high strength, which allows the reduction in wall thickness and weight of pipe fittings. Besides, it can withstand very high flow rates, making it capable to withstand long-term exposure to the elements in almost any environment.
- Cast stainless steel pipe fittings can be used in all types of water, including drinking water in public supply. They have an excellent resistance to the full range of potable waters, including various chloride levels. At the end of its useful life, cast stainless steel is fully recyclable and retains a higher residual scrap value than ordinary cast steel.
- Stainless steel casting of pipe fittings requires low maintenance and does not need an additional coating, in both indoor and outdoor applications. The expected lifetime of a stainless steel pipe fitting is more than 50 years, reducing system down time, replacement and maintenance costs over the life of the installation.
- Last but not the least, stainless steel casting is afforable to produce any type of pipe fittings, and it can produce pipe fittings in both high and small volumes.
