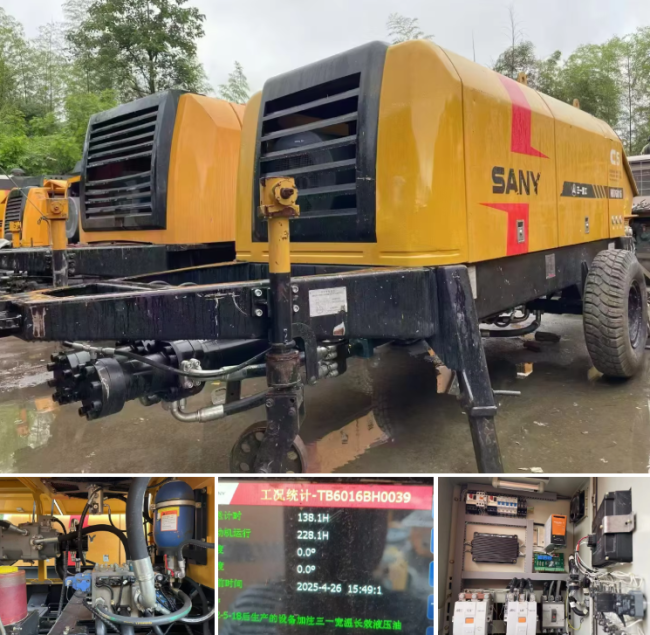

Used Concrete Trailer Pump – SANY HBT6016C-5 | 110kW Electric | 80m Vertical / 800m Horizontal Conveying
This SANY HBT6016C-5 used concrete trailer pump delivers exceptional performance with an 110kW electric motor, 80m vertical, and 800m horizontal conveying capabilities. Ideal for construction sites, high-rise buildings, and infrastructure projects, it offers a balance of power and efficiency. With working hours ranging from 0-2000, this unit is in near-new condition, making it a cost-effective solution for reliable concrete pumping.
| Specification | Details |
|---|---|
| Product Type | Concrete Trailer Pump |
| Condition | Used (Excellent, 0-2000 Working Hours) |
| Power Type / Motor Power | Electric / 110kW |
| Max. Vertical Conveying Distance | 80 m |
| Max. Horizontal Conveying Distance | 800 m |
| Productivity (Low Pressure) | 70 m³/h |
| Productivity (High Pressure) | 45 m³/h |
| Maximum Aggregate Size | 50/40mm |
| Conveying Pipe Diameter | Φ150/Φ125mm |
| Weight (Total Mass) | 6800 KG |
| Overall Dimensions | 6830 * 2125 * 2685mm |
| Core Components | Pump, Motor, Engine |
| Brand Name | SANY |
| Place of Origin | Hunan, China |
| Certification | Machinery Test Report Provided |
- Exceptional Conveying Range - 80m vertical and 800m horizontal reach for high-rise and long-distance projects
- Low Working Hours - 0-2000 hours indicate near-new condition and extended service life
- Electric Power Efficiency - 110kW electric motor offers eco-friendly, cost-effective operation
- Verified Reliability - Comprehensive test report and video inspection confirm mechanical and operational performance
- Versatile Application - Handles aggregates up to 50mm, suitable for various concrete mixes
- High-rise building construction (up to 80m vertical reach)
- Large-scale infrastructure projects (tunnels, bridges, roads)
- Commercial and industrial facility development
- Construction sites with access to electric power
Each unit undergoes:
- Electric motor performance testing (power output, efficiency)
- Pumping system inspection (pressure, cylinder operation, S-valve functionality)
- Conveying distance and productivity verification
- Provision of a detailed Machinery Test Report
A: 0-2000 hours, indicating it is in excellent, near-new condition.
A: It is electric-powered, with a 110kW motor.
A: 80m vertical, 800m horizontal.
A: Yes, SANY is a major manufacturer, so genuine and aftermarket spare parts are accessible through authorized dealers.
A: Up to 50/40mm, making it suitable for most standard concrete mixes.
