Comfort Low Type Underground Personnel Carriers 7500kg Overall Mass
Price:
Negotiable
MOQ:
1
Delivery Time:
14-30 days
Brand:
Beijun
Product Description

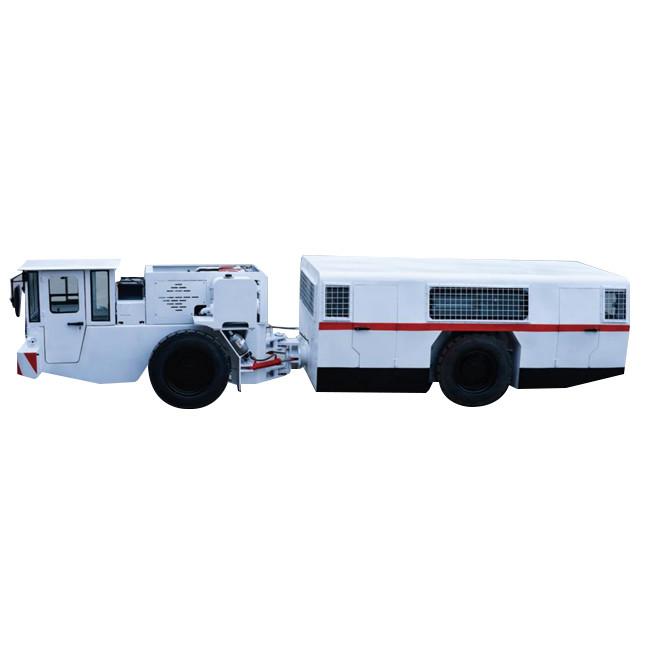

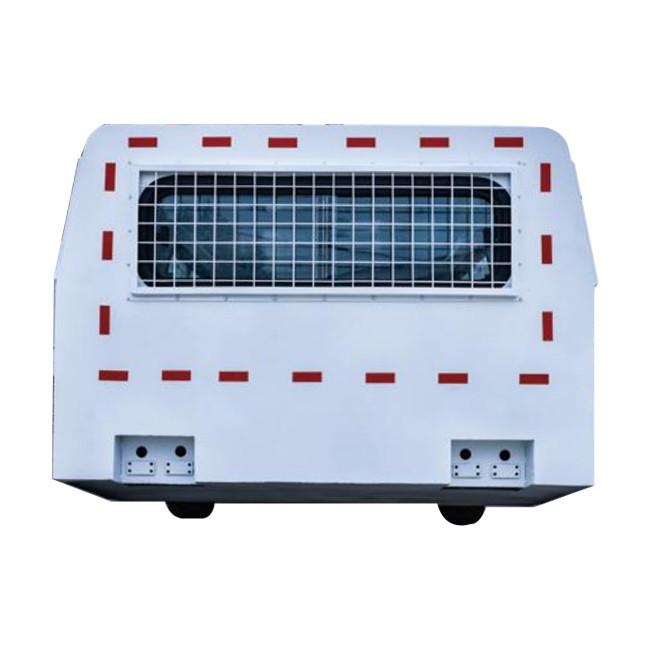

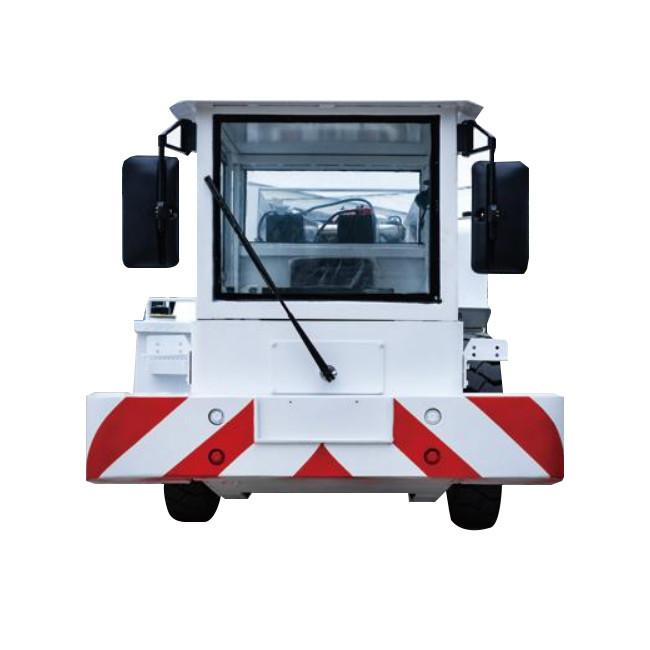

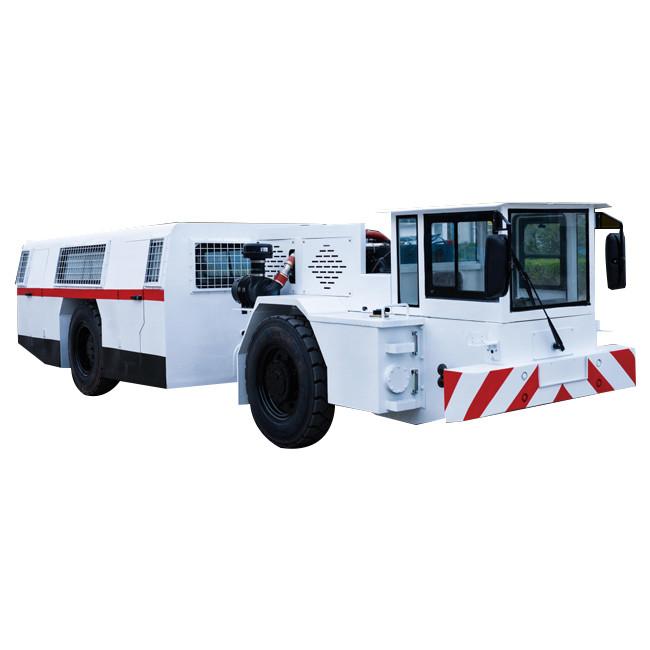

Wcr19 Low Type Transporter Underground Personnel Carrier
Main features
1. The frames are articulated with 40° steering angle.
2. Ergonomics Canopy.
3. Operation Comfort & Safty
4. 4 wheels driving & braking.
5. Front axle is equipped NO-SPIN differential. While rear is ANTI-SLIP.
6. Low vibration level in cab.
| Item | Main technical parameters | ||
| Model | WCR19 | ||
| Overall mass(kg) | 7500 | ||
| Rated capacity (people) | 19 | ||
| Overall Dimension L(mm)xW(mm)xH(mm) | 7613*2000*1700 | ||
| Wheelbase(mm) | 3595 | ||
| Front wheelbase(mm) | 1457 | ||
| Rear wheelbase(mm) | 1590 | ||
| Minimum ground clearance(mm) | 202 | ||
| Climbing capacity(°) | 14° | ||
| Running speed of each gear(km/h) | Forward I gear | 0-7 | |
| II gear | 0-14 | ||
| III gear | 0-25 | ||
| IV gear | 0-36 | ||
| Reverse I gear | 0-9 | ||
| Reverse II gear | 0-14 | ||
| Reverse III gear | 0-25 | ||
| Reverse IV gear | 0-36 | ||
| Minimum passing ability radius(mm) | Outboard | 5925 | |
| Inside | 3714 | ||
| Maximum tractive force(kN) | 47 | ||
| Transmission mode | Hydraulic transmission | ||
| Braking type | Working brake | Hydraulic Brake Wet Brake | |
| Parking brake | Spring brake Hydraulic release Fail-safe | ||
| Drive type | Front wheel drive | ||
