Excellent Maneuverability 30 Ton Articulated Dump Truck BJUK-30

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 7 days
Brand: Beijun
Product Description

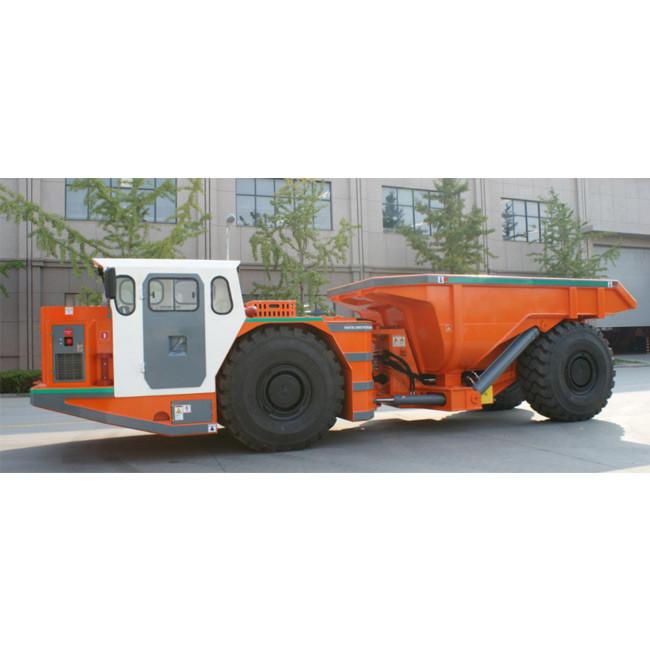

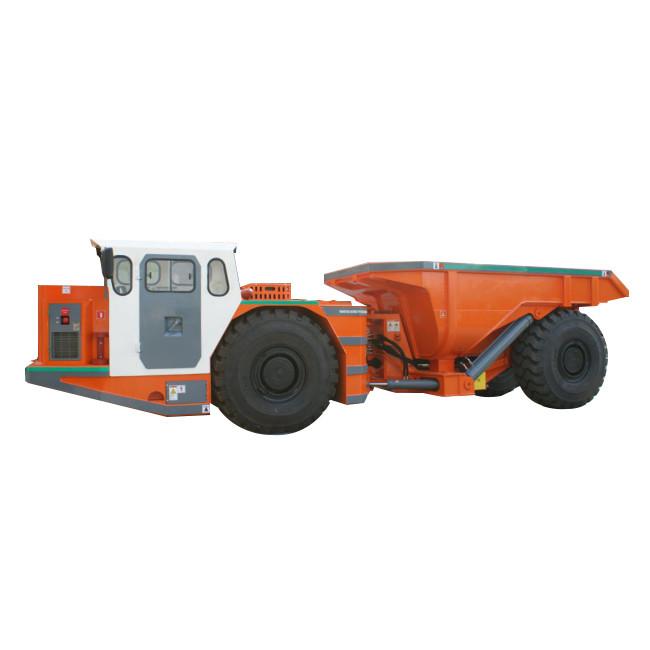

BJUK-30 Articulated Underground Mining Truck With A Carrying Capacity Of 30 Tons



The BJUK-30 truck is an articulated underground mining truck with a carrying capacity of 30 tons. This model has innovative features, which can easily cope with harsh working conditions, provide strong power, strength and reliability to help you maximize productivity .



Heavy-duty front and rear racks are specially designed to deal with harsh underground environments, and the excellent quality, reliability and durability meet user requirements, making transportation simpler, more efficient, and more efficient.



The central hinged swing reduces the large center of gravity offset of the whole vehicle, and ensures that the front and rear frames can swing freely, ensuring that the tires form a good contact with the ground under severe working conditions. The fully sealed slewing bearing device can effectively deal with the harsh working environment, prolong the service life and reduce the operating cost.



The equipment is designed according to the standard
JB/T8436 Tire-type mine truck for underground mining
JB/T5501 Test method for underground scrapers
GB21500 Safety requirements for trackless tire-type mine trucks for underground mining
BJ12.1-2011 Standard for underground mine trucks

Motion transfer system



power system


diesel engine Mercedes Benz OM460LA
rated power 315 kW @ 1800rpm
maximum torque 2000Nm @ 1300rpm
Number of cylinders Inline 6-cylinder
Exhaust volume 12.8 L
cooling system water-cooled engine
Fuel System Silicone oil clutch fan
air intake system Integrated hand pump, fuel filter
Control System turbo
start the system Dry air filtration, pre-filtration + two-stage filtration
Emission Standards Electronic fuel injection system
exhaust system 24V starter motor
Average fuel consumption, 38.0 L/h
At 50% load 430 L
