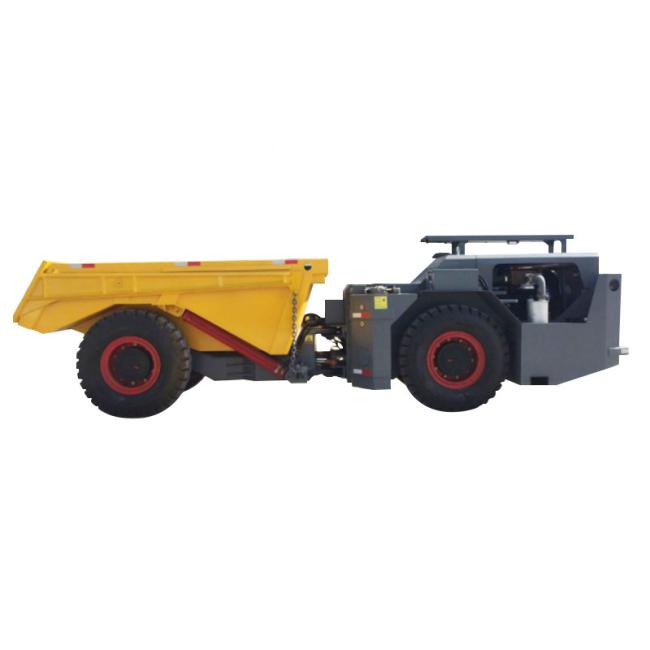

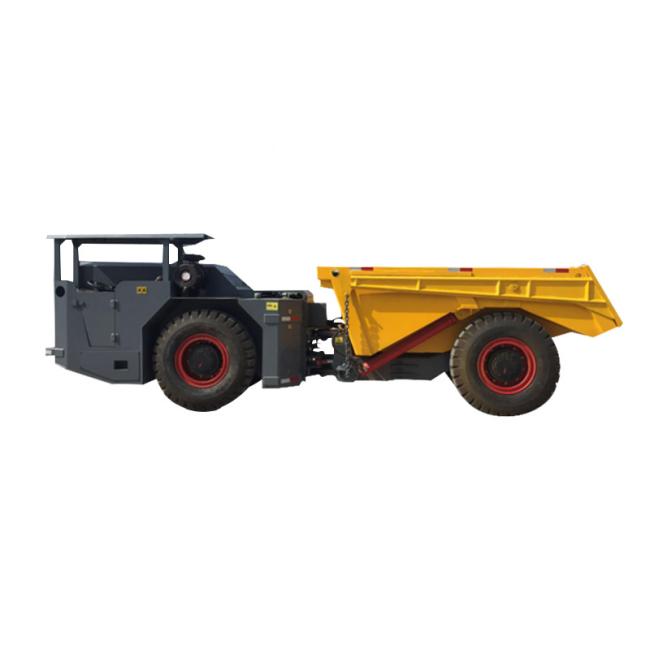

Full Hydraulic 6000KG Underground Articulated Truck Multiple Color BJUT-6
BJUT-6 is a heavy-duty underground mining truck designed for narrow-vein mining conditions. It has a 12-metric-ton payload capacity and is known for its flexibility, maneuverability, and quickness on inclines.
Some of the key features of BJUT-6 are:
Four-wheel drive with double steering cylinders for different sizes and hinged front and rear racks.
Lateral swing mechanism with a central hinged slewing bearing for improved stability.
Spring brake hydraulically released wet brake system for effective braking.
Self-unloading cargo carriage made of high-strength wear-resistant steel plate for durability.
Articulated frame for a small turning radius and flexible maneuverability.
High-strength welded steel construction with optimized material thicknesses for reduced own weight and increased hauling capacity.
Automatic central lubrication system for easy maintenance.
Full hydraulic open-center system with one gear pump and joystick dump box control.
ROPS certification according to EN ISO 3471 for operator safety.
FOPS certification according to EN ISO 3449 for protection against falling objects.
Overall, BJUT-6 is a reliable and efficient mining truck that can handle the demanding conditions of narrow-vein mining operations.
| Rated load | 6000 KG |
| Bucket capacity | 3 m³ |
| Driving speed | 0~30 km/h |
| Maximum gradeability (heavy load) | 0.25 |
| Largest traction | ≥40 KN |
| Turning radius | 5470 mm |
| Maximum height of machine when unloading | 3360 mm |
| Maximum unloading angle | 42° |
| Swing angle | ±8° |
| Steering angle | ±40° |
| Minimum ground clearance | 220 mm |
| Overall dimensions (length×width×height) | 6280 mm×1700 mm×1700 mm |
