Outdoor P10 LED Stadium Pitch Perimeter Display Waterproof LED Screen Wall 960x960 Adverting Display IP65
Outdoor P10 LED Stadium Pitch Perimeter Display Waterproof LED Screen Wall 960x960 Adverting Display IP65
Specifications:
| NO.: | Product name | Technical parameter |
| 1 | Pixel Pitch(mm) | 10mm |
| 2 | Pixel configuration | 1R1G1B/SMD3535 |
| 3 | Pixel density | 10000dots/sqm |
| 4 | Brightness | ≥75000nit |
| 5 | Module size(W*H) | 320mm×160mm |
| 6 | Module Resolution (W*H) | 32 x 16dots |
| 7 | Module weight | 600g |
| 8 | Cabinet size (W*H) | 960×960mm |
| 9 | Drive IC | MBI5124 |
| 10 | Drive mode | 1/16scan |
| 11 | Viewing Angle(V/H) | 140 ºC |
| 12 | Grey Scale | 65536 degree |
| 13 | Life time | >100,000 Hours(80%) |
| 14 | MTBF | >50,000 Hours |
| 15 | Operating Voltage | AC110V/220V±10% |
| 16 | Screen Power Consumption | Max: 900w/sqm; Average:300w/sqm |
| 17 | Input Power Frequency | 50/60Hz |
| 18 | Operating temperature | -30--60ºC |
| 19 | Humidity | 10%-95% |
| 20 | Refresh Rate | ≥3840HZ |
| 21 | Control Method | Synchronized with computer monitor |
| 22 | Color Temperature | 6500K-9500K |
| 23 | LED control system | LINSN,Nova-star,Colorlight is selectable |
| 24 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| 25 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| 26 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 |
Features:
1. Crack Resistant-Super quality, cool with stumbles.
2. Dust Resistant-Cautious protection keep FO-B far away from dust spoiling.
3. Heat Resistant-Dual cooling channels empowers FO-B to work longer time and work leisurely under hot weather.
4. Wind Resistant-Pure Iron material effectively uplift stability.

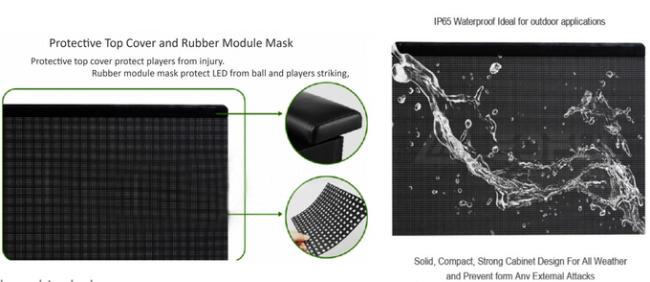

5. Water Resistant-IP65, cool with spills, cool with rain.
Our Advantage
1. The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2. Good after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
7. Your sales area, ideas of design and all your private information will be well protected
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
FAQ
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
Our Service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
