0.6/1kv YJV 1core/1.0-630mm2 Cu Conductor XLPE insulated PVC sheathed 4mm2 power cable
XLPE Insulated Power Cable Single Core 6mm2
Price:
$0.35/meter
MOQ:
100 Meters
Delivery Time:
Negotiable
Brand:
Jiangnan
Product Description
Products Description
Copper core XLPE insulated PVC sheathed power cable
Executive standard:
National standard: GB/T12706.2-2008 rated voltage 1KV (Um=1.2KV) to 35KV (Um=1.2KV) extruded insulated power cables and accessories
International standard: IEC60502-2:2005 rated voltage 1~30KV extruded insulated power cables and accessories
Additional standard: GB/T 19666-2005 General rules for flame-retardant and fire-resistant cables
Scope of application: It should be used on transmission and distribution lines with 50 Hz AC rated voltage Uo/U of 0.6/1KV and below.
Operating conditions for cable laying
When laying in the air, the center distance of single-core cables when laying in parallel: 185mm2 and below is twice the diameter of the cable; 240mm2 and above is 90mm.
Cable model and name
| Model | Name | Scope of application |
| YJV | Copper core XLPE insulated PVC sheathed power cable | Indoors, tunnels and cable trenches, etc., do not need to bear external mechanical force. Single-core cables are not permitted to be laid in magnetic conduits. |
| YJLV | Aluminum core XLPE insulated PVC sheathed power cable | |
| YJY | Copper core XLPE insulated PE sheathed power cable | |
| YJLY | Aluminum core XLPE insulated PE sheathed power cable |

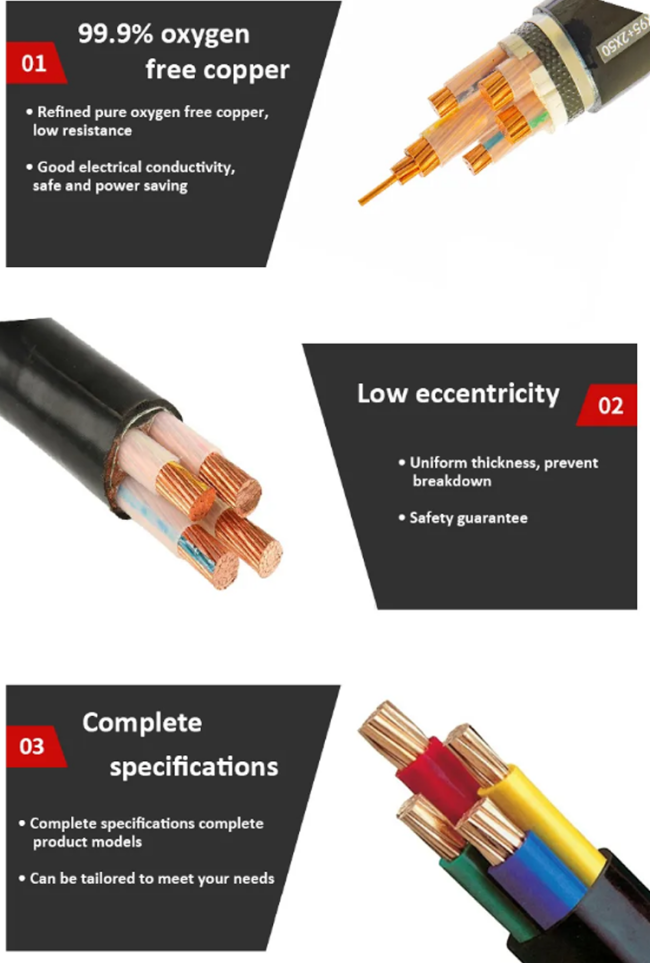

Features
● YJV cross-linked cables have good mechanical properties, excellent insulation properties, larger transmission capacity than oil-paper insulated cables with the same cross-section, simple production process, and large-scale production.
● XLPE insulated cables have a higher operating temperature (90 °C), which increases the ampacity of the cable, smaller bending radius, light weight, and easier maintenance and installation.
YJV
Product model and application
More Models
Application
Quality Inspection
Certifications
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
5. Are you a factory or trading company?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc
2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.
5. Are you a factory or trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.
