JNZG-100 Paper Lid/Cover Machine Cup lid machine​

Description:
Due to the different needs of the market, on the basis of double-layer paper cover, we have developed a single-layer paper cover.

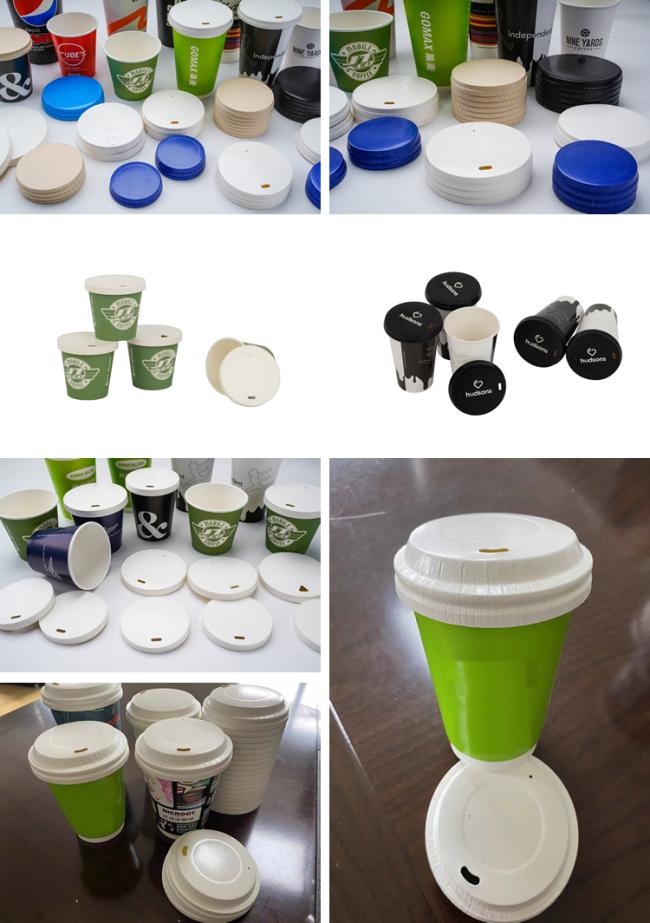

Compared with double-layer paper cover, it has fast speed and low cost. It is widely used in cold drinks, hot drinks, coffee, ice cream and so on.
High speed 70-90pcs/min
PLC control
Feed roll/sheet paper
Auto emboss,creasing
Auto punching forming
Auto lubrication

Auto counter and conveyor

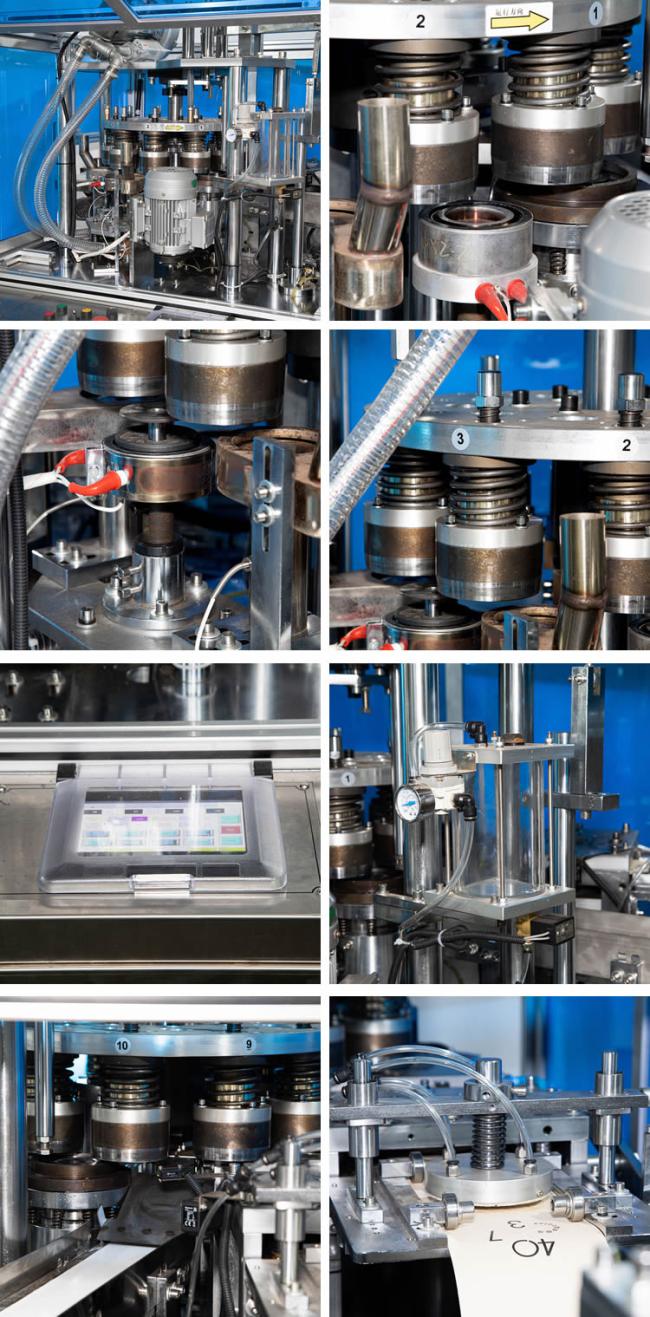

The main motor of the cup lid forming machine adopts frequency conversion speed regulation: the number of punching times can be adjusted from 10 to 20 times per minute, and the appropriate number of punching times can be set according to the length of the stroke and the difficulty of forming.

The pneumatic system of the cup lid forming machine adopts photoelectric control, programmable through PLC, so that each mechanism can run accurately and ensure the stability of desynchronization in multi-station and long-distance operation of packaged products.

Technical Details :

Advantage:

l Patent equipment, high speed.
lFeed roll paper,
l Auto creasing(guide line),
lAuto emboss (logo and shape on lid top, also make cross cut),
lAuto punching(cut roll paper to lid disc),
l Lid made by one paper disc, save cost.
l PLC control + servo motor feed paper
lOpen cam + shaft + cam + gear control movement, stable and reliable
