Asphalt Coated Fiberglass Geotextile Geogrid For Road Reinforcement
Hot Sale Asphalt Coated Fiberglass Geogrid for Road Reinforcement Price
1.Product Description
Fiberglass Geogrid is made from excellent non-alkali fiberglass filament as the base material coated with adhesive by automatic woven technology. It has the characteristics of high strength, small deformation, no long-term creep deformation, good thermal stability and physical and chemical stability. It is applicable for various environmental soils and tall retaining walls in high-grade highways, and can effectively avoid the damage of machines rolling in construction progress.
|
Spec
|
EGA
30-30
|
EGA
50-50
|
EGA
80-80
|
EGA
100-100
|
EGA
120-120
|
EGA
150-150
|
EGA
200-200
|
EGA
300-300
|
|
|
Mesh size (mm)
|
25.4x25.4 or 12.5x12.5 or 50.8x50.8
|
||||||||
|
Breaking strength
≥(kN/m)
|
warp direction
|
30
|
50
|
80
|
100
|
120
|
150
|
200
|
300
|
|
across warp
|
30
|
50
|
80
|
100
|
120
|
150
|
200
|
300
|
|
|
warp direction
|
3
|
||||||||
|
across warp
|
3
|
||||||||
|
Thernal tolerance(℃)
|
-100~280
|
||||||||
|
Width(m)
|
2/2.5/3.95/5.95 m
|
||||||||
2.Product Funtion
Glass fiber grid has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance and long service life.
3.Application

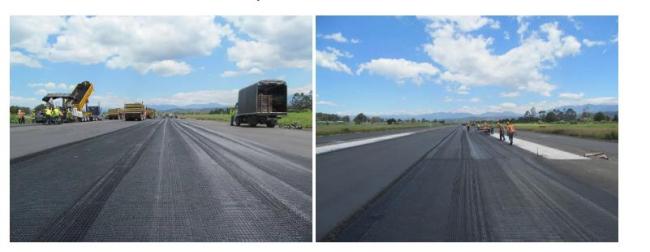

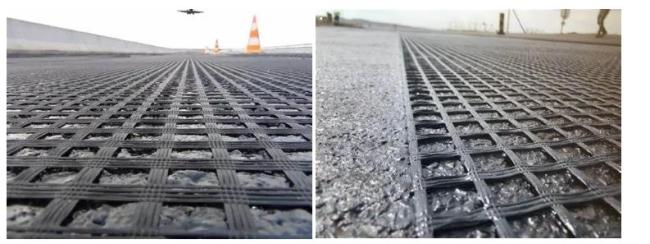

1,Suitable for the reinforcement of all kinds of road, railway, airports.
2,Apply to foundation reinforcement of permanent load-bearing such as large parking lot and dockyard.
3,Applicable for slop protection of railway and road.
4,Culvert enhancement.
5,Suitable for the secondary reinforcement of the soil slope reinforced by the unidirectional stretching geogrid to further strength the soil slope and prevent soil erosion. 6,Mine and tunnel reinforcement.
