Railway Bridge HDPE Geotextile Geogrid Steel Plastic Composite Geogrid
Product Description

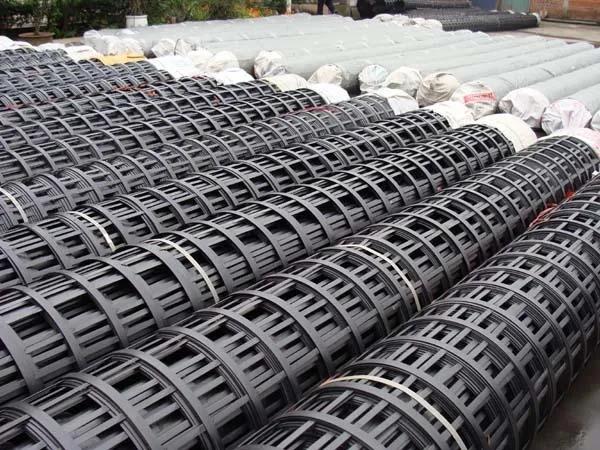

·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Technical index
| Project | TGDG30 | TGDG50 | TGDG80 | TGDG100 | TGDG120 | TGDG150 |
| Vertically Limited-Rally (KN/m)≥ |
30 | 50 | 80 | 100 | 120 | 150 |
| Vertically Limited elongation ratio(%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 38 | 63 | 81 | 98 | 125 |
High-strength steel-plastic biaxial( vertical and horizontal) geogrid
| Project | TGSG30-30 | TGSG45-45 | TGSG60-60 | TGSG80-80 | TGSG100-100 | TGSG120-120 |
| Two-way Limit-Rally (KN/m)≥ |
30 | 45 | 60 | 80 | 100 | 120 |
| Two-way Limit elongation (%)≤ |
3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ |
23 | 36 | 48 | 63 | 81 | 98 |
Product Application
1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
