Textured Smooth Plastic HDPE Geocell 1.1mm To 1.8mm Thickness For Highway
Product Description
1.Introduction:
Geocell is a lightweight and flexible three-dimensional, expandable panels made from High-Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geomax Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
2.Specifications:
(1).Cell depth: 50mm,100mm,150mm,200mm,250mm
(2). Welding space: 330mm~1600mm
(3). Thickness:
a,1.0mm~1.2mm for smooth geocell
b, 1.5mm~1.7mm for textured geocell
(4). Textured and smooth geocell
Product Parameters
| Properties | Test Method | Unit | Value | |||||
| Polymer | - | HDPE | ||||||
| Density | ASTM D 1505 | g/cm3 | 0.94 | |||||
| Carbon black content | ASTM D 1603 | % | 1.5 | |||||
| Sheet thickness(Smooth) | ASTM D 5199 | mm | 1.1 or 1.2 | |||||
| Sheet thickness(Textured) | ASTM D 5199 | mm | 1.5 | |||||
| Seam peel strength | Cell depth | |||||||
| N | 75 mm | 1060 | ||||||
| N | 100 mm | 1420 | ||||||
| N | 150 mm | 2130 | ||||||
| N | 200 mm | 2840 | ||||||
| Weld spacing | mm | 330 | 356 | 400 | 445 | 660 | 712 | |
| Expanded cell size (WxL) | mm | 244X203 | 259X224 | 295X250 | 320X287 | 488X408 | 508X475 | |
| Expanded panel size(WxL) | m | 2.44X6.15 | 2.56X6.52 | 4X5 | 2.56X8.35 | 2.44X12.29 | 2.56X13.72 | |
| Expanded panel area | m2 | 15 | 16.7 | 20 | 21.4 | 30 | 35.12 | |
Application

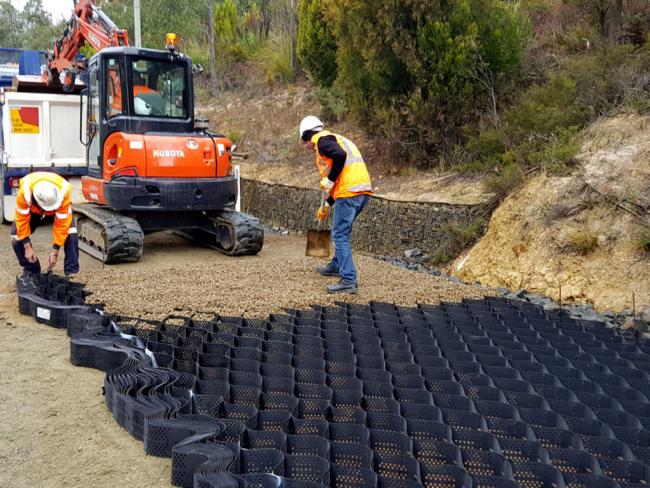

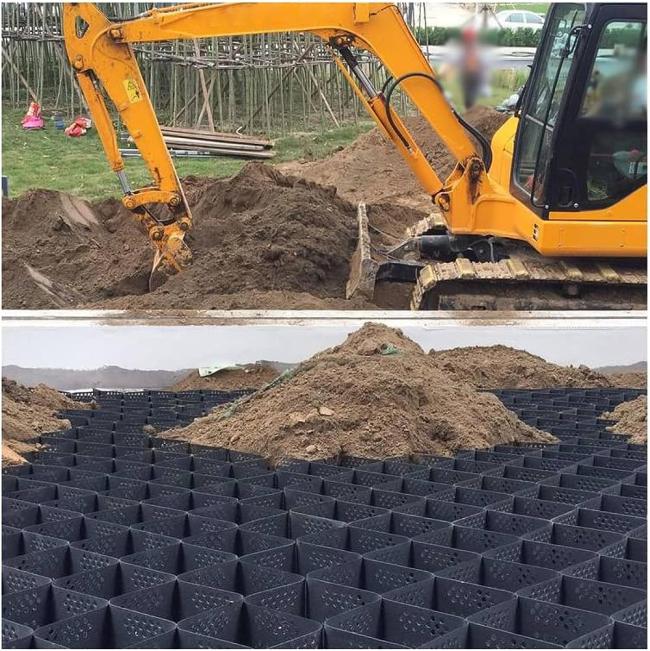

Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .
