High Strength HDPE Geomembrane With Long Service Life For Wastewater Treatment Plants Bioenergy Projects And Industrial Water Storage Tanks
1mm 2mm HDPE LDPE LLDPE GM13 Geomembrane Fish Farm Landfill Pond Liner Waterproof Geomembrane
HDPE anti-seepage membrane is a low-permeability synthetic membrane liner and geotechnical material produced according to GRI GM13 standard. It is made of high quality original polyethylene resin and mixed with specified amount of carbon black, antioxidant, anti-aging agent and ultraviolet protection ingredients. This smooth surface HDPE anti-seepage film has excellent UV resistance and is suitable for exposure conditions. It demonstrates its impermeability and UV resistance properties and has a wide range of applications in various fields, such as solid waste landfill (including landfills), mining, waste treatment, aquaculture, water storage, and water treatment systems.
Product Features
Geomembrane Pond Liner has good physical and mechanical performance.
Geomembrane Pond Liner offers high tearing resistance and strong deformation adaptability.
Geomembrane Pond Liner provides excellent corrosion resistance and aging resistance.
Geomembrane Pond Liner shows good adaptability to high and low temperatures, is non-toxic, and ensures a long service life.
Geomembrane Pond Liner delivers superior waterproofing, drainage, anti-seepage, and damp-proof performance.
Geomembrane Pond Liner comes in complete width and thickness specifications, with low cost and easy installation.
Basic Details
Geomembrane; pond liner
1.Main Thickness:0.1mm,0.2mm,0.3mm,0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm,2.5mm
2.Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m,10m
3.Main Length:50m/100m
4.Main Color: black, white, blue, green
5. Optional surface: Textured or Smooth surface.
6.Material:HDPE, LDPE,LLDPE
7. Certificate & Test: ISO, TUV,SGS
8. Quality Control: Third party test and factory lab test
Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.2 mm -5 mm, width: 1-12 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.
Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Main Features:
1.UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting
HDPE Geomembrane Application:
(1)Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.
(2)Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

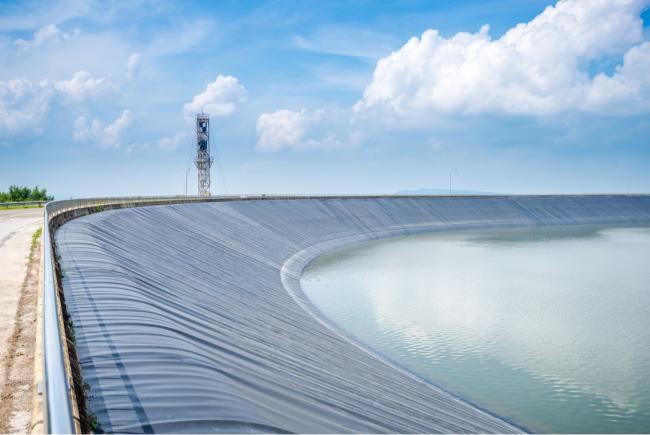

(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.

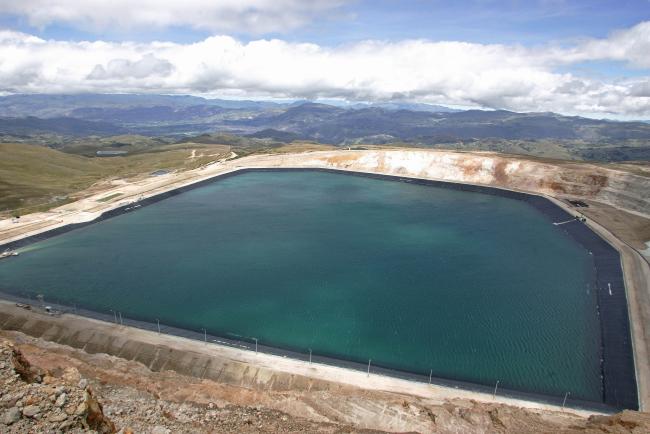

(4)Mining:
HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
Product Specification
HDPE Geomembrane pond liner Technical Parameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Company Profile

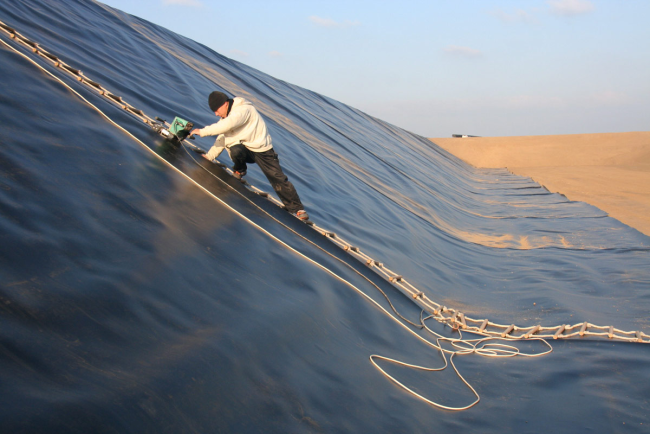

2. Tow adjacent longitudinal joints should not be in a horizontal line, should bestaggered more than 1m each other.
3. Longitudinal joints should be more than 1.50m away from the dam foot and bending foot, and should be located on the plane.
4. When the slope is laid, the direction of spreading film should be basically parallel to the slope line.
5. The construction, first of all to use small diameter sand or clay levelingbase, and then laid the geomembrane. The geomembrane should not be stretched too tight, and the part of the soil bured at both ends is corrugated. A transitional layer of about 10cm is laid on the geomembrane with sand or clay.
