Aquaculture Fish Farm Waterproof Geomembrane Pond Liner HDPE High Density for Landfill Dam Soil Protection
Aquaculture Fish Farm Waterproof Geomembrane Pond Liner HDPE High Density for Landfill Dam Soil Protection
Geomembrane Pond Liner Description
Manufactured to GRI GM13 standards, this low-permeability synthetic geomembrane pond liner utilizes premium virgin polyethylene resin enhanced with carbon black, antioxidants, UV stabilizers, and anti-aging compounds. Engineered for exposed applications, geomembrane pond liner's smooth surface delivers exceptional ultraviolet resistance and impermeability. Geomembrane pond liner's primary applications include: solid waste landfills, mining operations, waste treatment facilities, aquaculture containment, water reservoirs, and hydraulic infrastructure.
Geomembrane Pond Liner Technical Parameter
ASTM Standard geomembrane pond liner
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Characteristics:
-
Superior flexibility
-
Extreme temperature tolerance (-70°C to 110°C)
-
Chemical corrosion & aging resistance
-
Exceptional environmental stress cracking (ESC) resistance
-
High tensile strength with elongation capacity
Main Features:
-
UV-resistant
-
Impermeable barrier
-
Reliable isolation
-
High tear-resistant
-
Puncture-proof
HDPE Geomembrane Application:
(1) Aquaculture:
Utilizing the geomembrane pond liner's anti-seepage properties, our geomembrane pond liner serves as:
-
Fish farm
-
Shrimp containment
-
Tank sealing
-
Recirculating aquaculture
(2) Landfill:
As the industry-standard geomembrane pond liner solution:
-

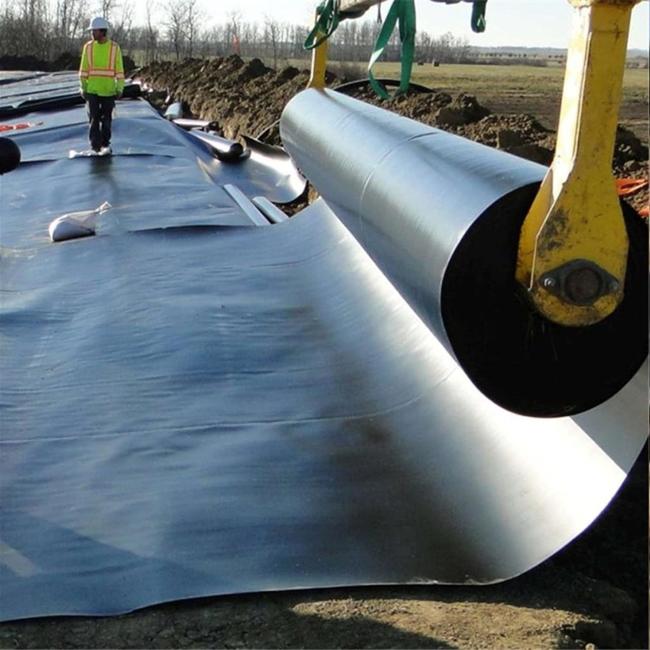

Base geomembrane pond liner for landfill bottoms
-
Capping geomembrane pond liner closure systems
-
Leachate collection geomembrane pond liner
-
Regulation pond geomembrane pond liner
(3) Water Treatment Systems:
Critical geomembrane pond liner applications include:
-
Power plant cooling geomembrane pond liner
-
Wastewater treatment geomembrane pond liner
-
Equalization basin geomembrane pond liner
-
Potable water geomembrane pond liner reservoirs
(4) Mining:
Heavy-duty geomembrane pond liner installations:
-
Heap leach pad
-
Tailings storage
-
Process solution
-
Sediment control
-
Acid rock drainage containment
![]()
