50-50 Kn/m Strength Fiberglass Geogrid Asphalt

Price Negotiable

Price: negotiable

MOQ: 1000sqm

Delivery Time: 7-10 working days

Brand: zhongloo

Product Description

Products Description

Bitumen Fiberglass Geogrid High Strength Biaxial /Fiberglass Plastic Geogrid Composite Fiberglass Geogrid for Sale

Fiberglass Geogrid is a kind of planar mesh using alkali-free fiberglass yarn as base body and then coated with high quality modified asphalt. It is warp knitted with oriental structure which gives fully play of yarn strength and improves its mechanical property. It is coated with asphalt making full protection of the fiberglass matrix and greatly improving its wear and shear resistance.

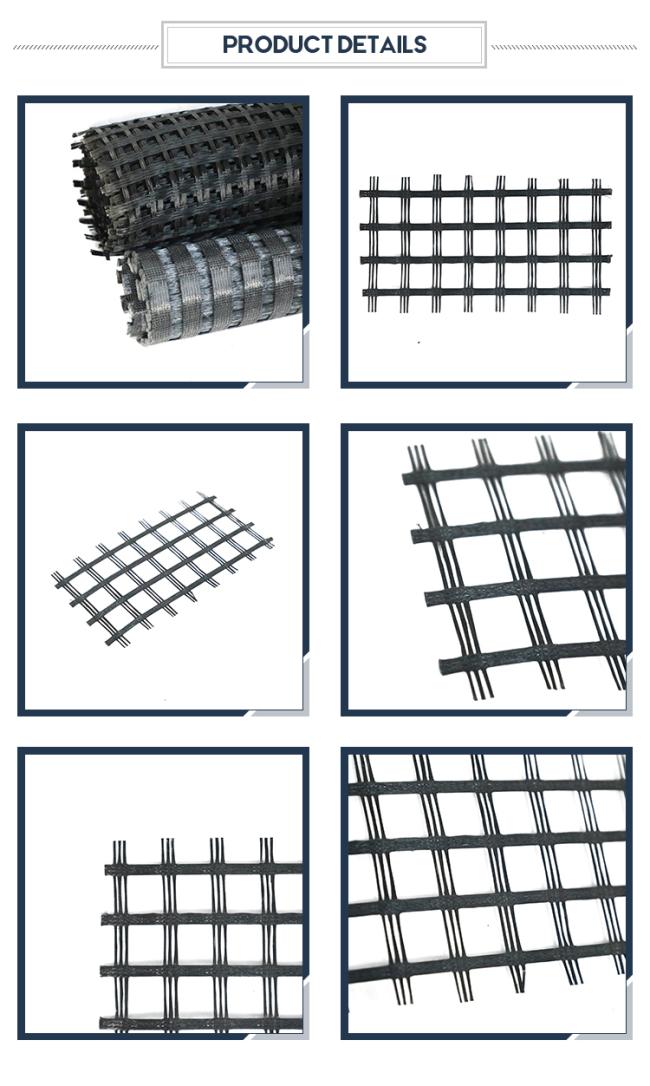

Details Images

Technical Index

Biaxial Fiberglass Geogrid
item	Specification
Type	EGA 30-30	EGA 50-50	EGA 80-80	EGA 100-100	EGA 120-120	EGA 150-150	EGA 200-200	EGA 300-300
Grid size (mm)	12.512.5 or 25.425.4 or 50.8*50.8
Latitude and longitude breaking strength ≥(KN/M)	30	50	80	100	120	150	200	300
Elongation at break in warp and weft ≤(%)	4

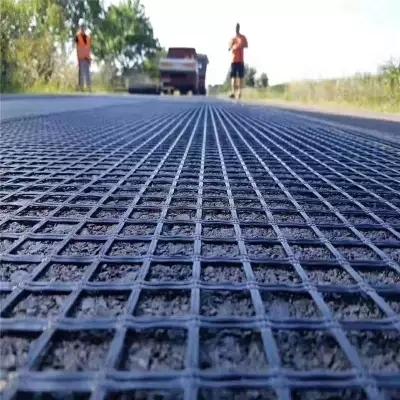

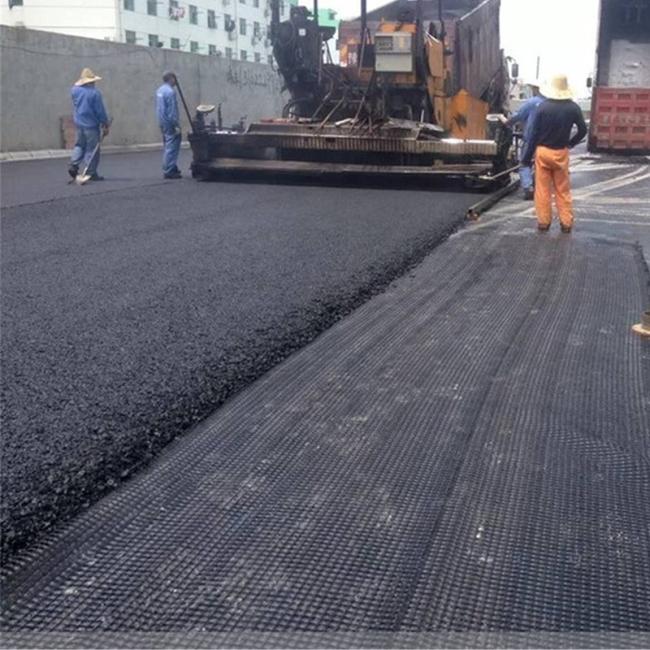

Products Application

(1)Applying to all kinds of roads, railways, airports enhance road embankment reinforced.
(2)the foundation for large parking garages and other permanent load and terminal enhancements.
(3)slope protection for railways, highways.
(4)applies culvert enhancement.
(5)applies to one-way stretch geogrid reinforced soil slopes after secondary (6)enhanced further enhance the soil, prevent soil erosion.
