Manufacturing Hdpe Geocell Gravel Grid Driveway Use for Road and Access Way Projects

Price Negotiable

Price: negotiable

MOQ: 1000sqm

Delivery Time: 7-10 work days

Product Description

Products Description

Manufacturing Hdpe Geocell Gravel Grid Driveway Use for Road and Access Way Projects

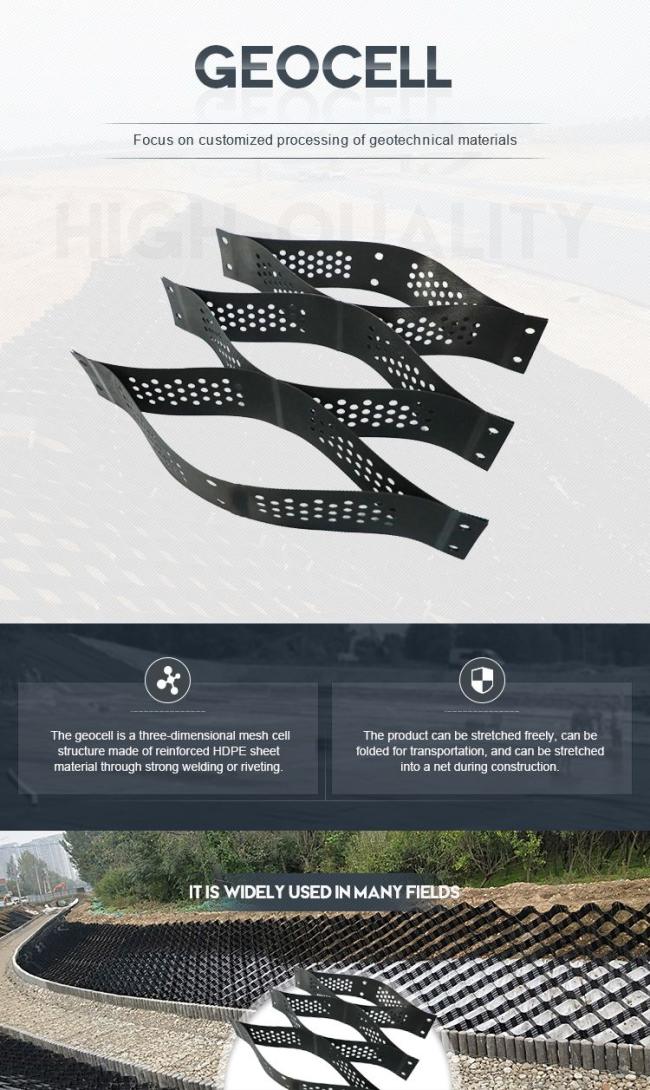

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

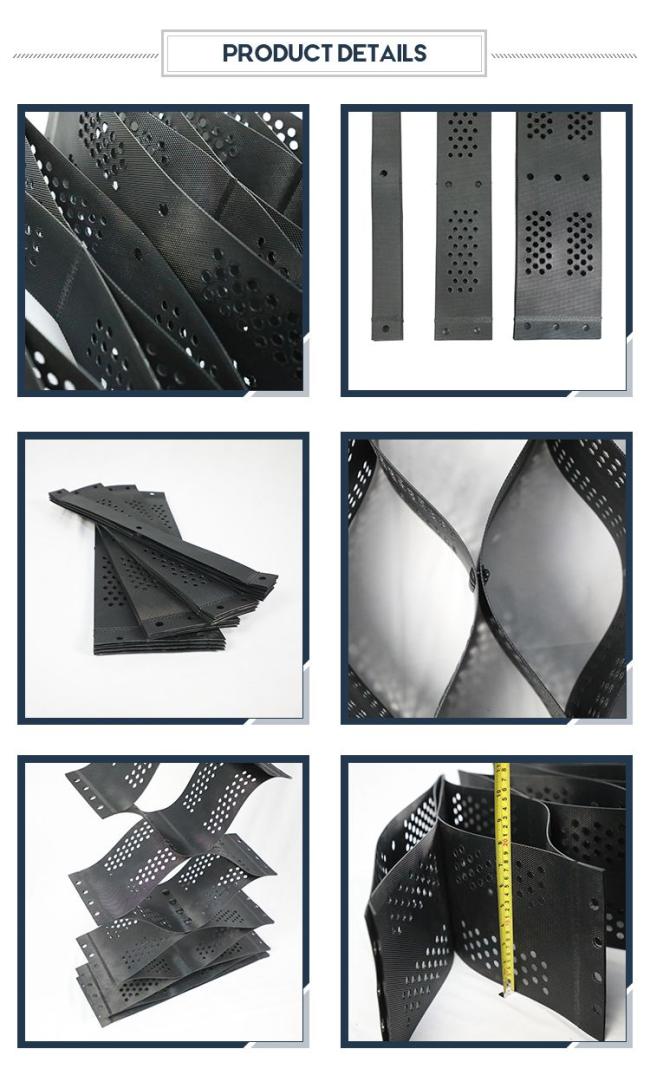

Details Images

It is flexible in expansion and contraction, and can be folded during transportation. It can be stretched into a net during construction and filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large rigidity.

Products Advantage

- Provides cost effective, long-term slope and channel protection and stabilization.
- Ease in transportation and on-site handling due to collapsible cells.
- Rapid and simple installation conforms to most terrain profiles.
- Ultrasonic welding of cell joints ensures maximum strength.
- Easily dismantled and subsequently re-used.
- Withstands high weight bearing loads.
- Resistant to biological attack and a wide range of soil borne chemicals.

Technical Index

Geocell
item	PP	PE
tensile strength of Strip ≥(Mpa)	23	20
Tensile strength of weld ≥(N/cm)	100	100
Tensile strength of cell edge ≥(N/cm)	200	200
Intermediate tensile strength of cell sheet ≥(N/cm)	120	120

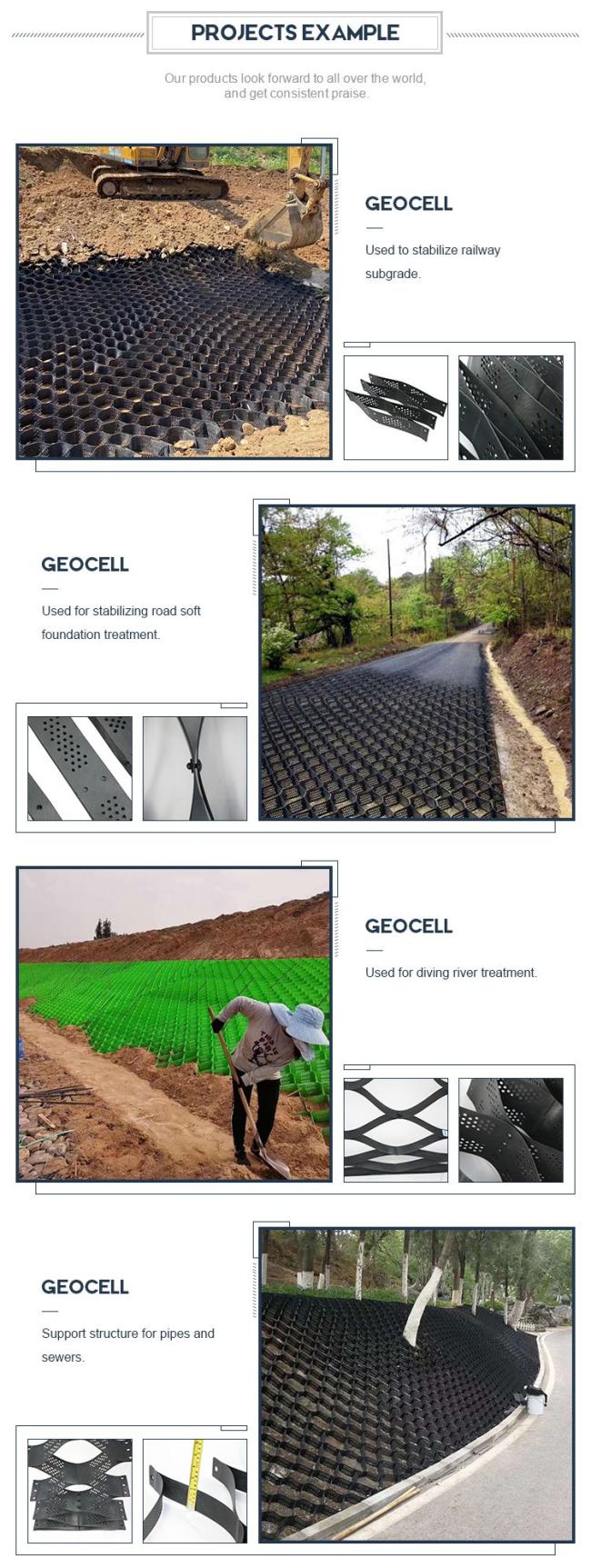

Geocell Application

1) Used for the stability of railwway road. 2) To stabilize the desert highway road. 3) Used in the governance of shallow water channel. 4) Used for the foundation reinforcement of retaining wall, wharf, levee. 5) For the management of desert, beaches and river banks.
