1220 X 1000 X 800mm Double Door Pharmaceutical Pass Box For Transfering Goods

Price Negotiable

Price: Negotiate

MOQ: 1 SET

Delivery Time: 15 - 20 Days

Brand: LENGE

Product Description

Double - Door Dynamic Pass Box Clean Room Equipments For Transfering Goods

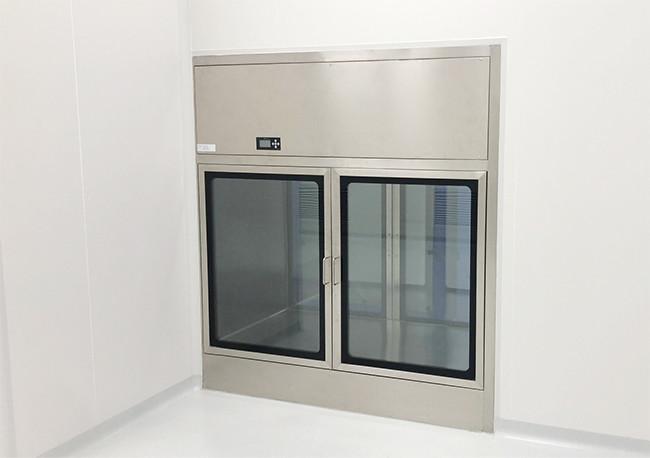

1220mm x 1000mm x 800mm Double - Door Dynamic Pass Box For Transfering Goods

Dynamic pass box is an equipment used for transfer of goods, and could segregate the air on both sides of the room. It is installed at the entrance to Clean Room in order to minimize the amount of particulate contamination entering the Clean Room.

Characteristics & Features:

Tempered glass doors provide a clear view of the internal chamber.
The main body of the pass box is constructed of SUS 304/316L stainless steel.
Variety of accessories and dimensions.

Containment System:

The double doors are interlocked. Prevent cross contamination caused by gas flow in different cleanliness environments
The delivery direction can be set accordingto actual needs
Double-layer negative pressure structure, the inner tank and the outer shell are both negative pressure static pressure boxes, ensuring the reliability of the seal

Technical Specifications & Parameters:

Model	LCTW3 - 040040	LCTW4 - 050050	LCTW6 - 060060	LCTW6 - 060080	LCTW8 - 070070	LCTW10 - 080080	LCTW16 - 100100
Material	SUS 304/316L Stainless Steel
Type	Corner Type, Three - door Type, Double - layer Type, Customized
Outer Size W x D x H (mm)	620 x 460 x 950	720 x 560 x 1050	820 x 660 x 1150	820 x 660 x 1350	920 x 760 x 1250	1020 x 860 x 1350	1220 x 1060 x 1600
Inner Size W'×D'×H' (mm)	400×400×400	500×500×500	600×600×600	600×600×800	700×700×700	800×800×800	1000×1000×1000
Weight (KG)	80	100	130	160	180	210	250
Custom Size	Available	Available	Available	Available	Available	Available	Available
No. of Door	2 - 4
Door Material	Tempered Glass
Interlocking	Mechanical / Electronic
Control Mode	Automatic / Manual Operation
Design of Working Area	Integrated Circular Arc Corner
Rated Air Velocity (m / s)	0.45 ± 20 %
UV Lamp (W)	6 × 2	8 × 2	8 × 2	8 × 2	15 × 2	20 × 2	20 × 2
Noise (dB)	65
Power Supply	220V, 50HZ
Power	0.2kW	0.2kW	0.2kW	0.2kW	0.2kW	0.3kW	0.3kW

Note: The above specifications are only for customers' reference. It is mostly designed and manufactured according to customers' URS.

Product Outline Design:
