6-50mm Stainless Steel Thick Plate 904l Mill Edge Slit Edge
China Factory 6Mm 7Mm 8Mm 10mm 15Mm 16Mm 18Mm 20Mm 25Mm 30Mm 35Mm 40Mm 50Mm Thick Stainless Steel Plate
Stainless steel sheet is a stainless steel sheet with thickness above 0.3mm, width above 1000mm and length unlimited. It has the characteristics of corrosion resistance, wear resistance and high temperature resistance, so it is widely used in construction, automobile, electronics, medical equipment, chemical industry, food processing and other industries. Stainless steel sheet is divided into 2B, BA, NO.1, NO.4, HL, NO.8, 1D and other types according to surface treatment, and different surface treatments have different uses and applications. At the same time, stainless steel plate can also be divided into different grades of stainless steel plate according to the material 304, 316, 201, 430, 2205, etc. The chemical composition and performance of each stainless steel plate is different, and different grades and specifications of stainless steel plate can be selected according to specific uses and requirements.
| Name | Stainless steel plate/sheet |
| Grade | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L,302, 301, 201, 202, 403, 405, 409, 409L, 410, |
| 410S, 420, 430, 631, 904L, Duplex, 2205,2507,etc. | |
| Standard | JIS, AISI, ASTM, DIN, TUV,BV,SUS,EN,etc |
| Thickness | 0.1-300mm thickness |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO. 8, 8K, mirror,checkered,embossed,hair line, sand blast, Brush, etching, etc |
| Technique | Hot Rolled And Cold Rolled |
| Width | 3-600mm -1500mm |
| Length | 3-2000/2438/3048/6000mm |
| Size | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or as required |
| Color | Golden, Black , Sapphire Blue, Brown, Rose gold, Bronze, Purple, gray, silver, Champagne, violet, blue diamond, etc |
| Application | Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling |
| Lead time | 7 to 25 working days after the receipt of 30% deposit |
| Payment terms | 30%TT for deposit, 70% balance before shipment or LC at sight |
| Packing | Wooden pallet or according to customer's request |
Available Surface
| Finish | Thickness | Size | Characteristics | Applications |
| NO.2B | 0.3-6.0mm | Width: 1000/1219/1500mm; Length: any length |
Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface | General Application Medical Instruments,Tableware |
| No. BA (Bright Annealed) |
0.3-6.0mm | Width: 1000/1219/1500mm; Length: any length |
Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
| NO.4 satin #4 | 0.3-3.0mm | Width: 1000/1219/1500mm; Length: any length |
Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes | Milk & Food processing acilities, Hospital Equipment, Bath-tub |
| NO.8 (8K mirror) | 0.3-6.0mm | Width: 1000/1219/1500mm; Length: any length |
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior-Exterior decoration forbuilding |
| HL (Hairline) | 0.3-6.0mm | Width: 1000/1219/1500mm; Length: any length |
Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware vehicles |
Chemical Composition
The typical chemical composition is shown in the table below.
Grade |
C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 24.0-26.0 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 430 | 0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |
Application
- Construction engineering,
- Marine engineering,
- Machinery manufacturing
- Vessel manufacturing,
- Ships and bridges

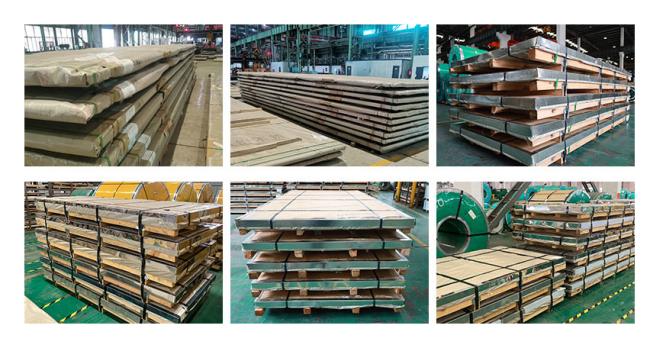

Packing and Shipping
Our Factory
JUDE is a comprehensive service provider of full-process solutions for stainless steel products. Fast delivery and competitive prices have earned us market recognition.
JUDE keeps 50,000 tons of regular-size stainless steel sheets/plates in stock all year round. We provide cold-rolled stainless steel sheets with thicknesses of 0.3mm-6.0mm and hot-rolled stainless steel plates with thicknesses of 3.0mm-100mm. For the sizes which have stock, we can even do same-day shipments.
