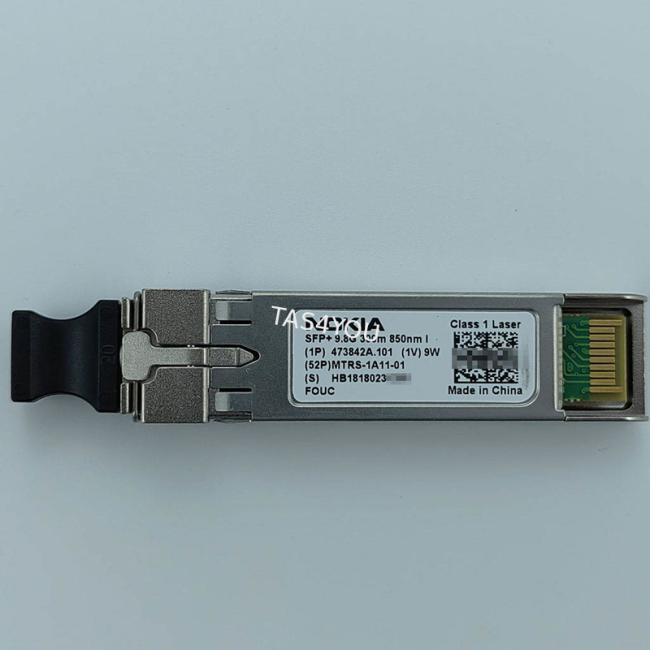

NOKIA FOUC SFP+9.8G 300m 850nm I 473842A.101

NOKIA FOUC SFP+9.8G 300m 850nm I 473842A.101

The Nokia 473842A.101 850nm VCSEL 10Gigabit Transceiver is designed to transmit and receive serial optical data links
up from 8.5 Gb/s to 10.51875 data rate over multimode fiber. The Transceiver is compliant with FC-PI-4, 10G FC, IEEE
802.3ae, SFF-8432, and applicable portions of SFF-8431. The transmitter converts serial CML electrical data into serial
optical data. An open collector compatible Transmit Disable (Tx_Dis) is provided. When TX_DIS is asserted High,
Transmitter is turned off. The receiver converts serial optical data into serial CML electrical data. An open collector
compatible Loss of Signal is provided. The RX_LOS signal indicates insufficient optical power for reliable signal reception
at the receiver. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.


Features

• Genuine Nokia 473842A.101
• Compliant to SFP+ MSA
• Fully RoHS Compliant
• Almetahousing for superior EMI performance
• IPF compliant mechanics SFF-8432
• Operating data rate 8.5-10.5Gb/s
• 850nm VCSEL Laser
• High sensitivity PIN photodiode and TIA
• LC duplex connector
• Hot pluggable 20pin connector
• Low power consumption <1.0W
• -40 to 85 operating wide temperature range ℃ ℃
• Single +3.3V±5% power supply
• DigitaMonitoring SFF-8472 Rev 11 compliant
• Reatime monitoring of:
• Transmitted opticapower
• Received opticapower
• Laser bias current
• Temperature
• Supply voltage

Applications

• 10GBASE-SR
• 8.5/10.5 Gb/s Fiber Channel
• Wireless and cellular base station

Compliance

• FC-PI-4 Rev 7.00
• 10GFC Rev 4.0
• IEEE 802.3ae 10GBASE-SR
• SFF-8431 Rev 4
• SFF-8472 Rev 11

Specifications

• Part Number: 473842A.101
• MPN: RTXM228-554-C20
• Form Factor: SFP+
• Data Rate (max): 8.5 ~ 10.5Gb/s
• Connector: Dual LC
• Reach (km): 300m
• Transmitter: 850nm VCSEL
• Receiver: PIN
• Wavelength (nm): 850nm
• OpticaPower: -7.3 ~ -1.0dBm
• Receive Sensitivity: <-11.1dBm
• DDM: Yes
• Operating Temperature: -40~85℃
