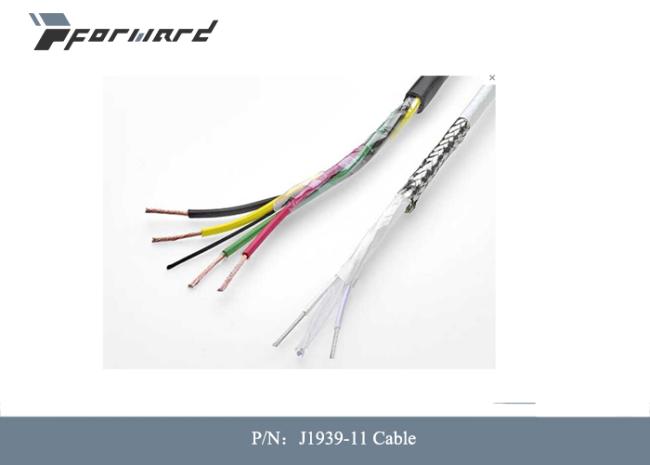

Aviation Parts J1939-11 Automotive CAN Bus Cable Overall Diameter 0.294
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Aviation Parts J1939-11 Automotive CAN Bus Cable Overall Diameter 0.294
Descriptions of Aviation Parts:
- - SAE J1939-11
- - Operating Temperature Range: -40C to +125C
- - Impedance: 120 OHMS +/- 10%
- - Max. Capacitance (Cond. – Cond.): 22.75pf/ft.
- - Max Capacitance (Cond. – Shield): 33.5pf/ft.
Features of Aviation Parts:
Overall 2” Maximum Left Hand Direction Twist Lay
- Fibralated Polypropylene Filler
- Overall .0012” Thickness Aluminum/Polyester Tape, 25% Overlap Foil in
- 20 AWG 19/33 Bare Copper Drain Under Tape Shield
- Overall .002” Tissue Separator Tape Pulled Under Jacket
- Overall .047” Wall Black 125C TPR Jacket to .330” Nominal Final Diameter
+/- .010”
- Surface printed in White Ink: TO BE DETERMINED
Specifications of Aviation Parts:
| Color | White |
| Overall Diameter | 0.294 |
| Weight | 3.43 |
| Conductor Count | 1 Pair |
| Impedance | 120 |
| Temp | 125 |
